Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
34

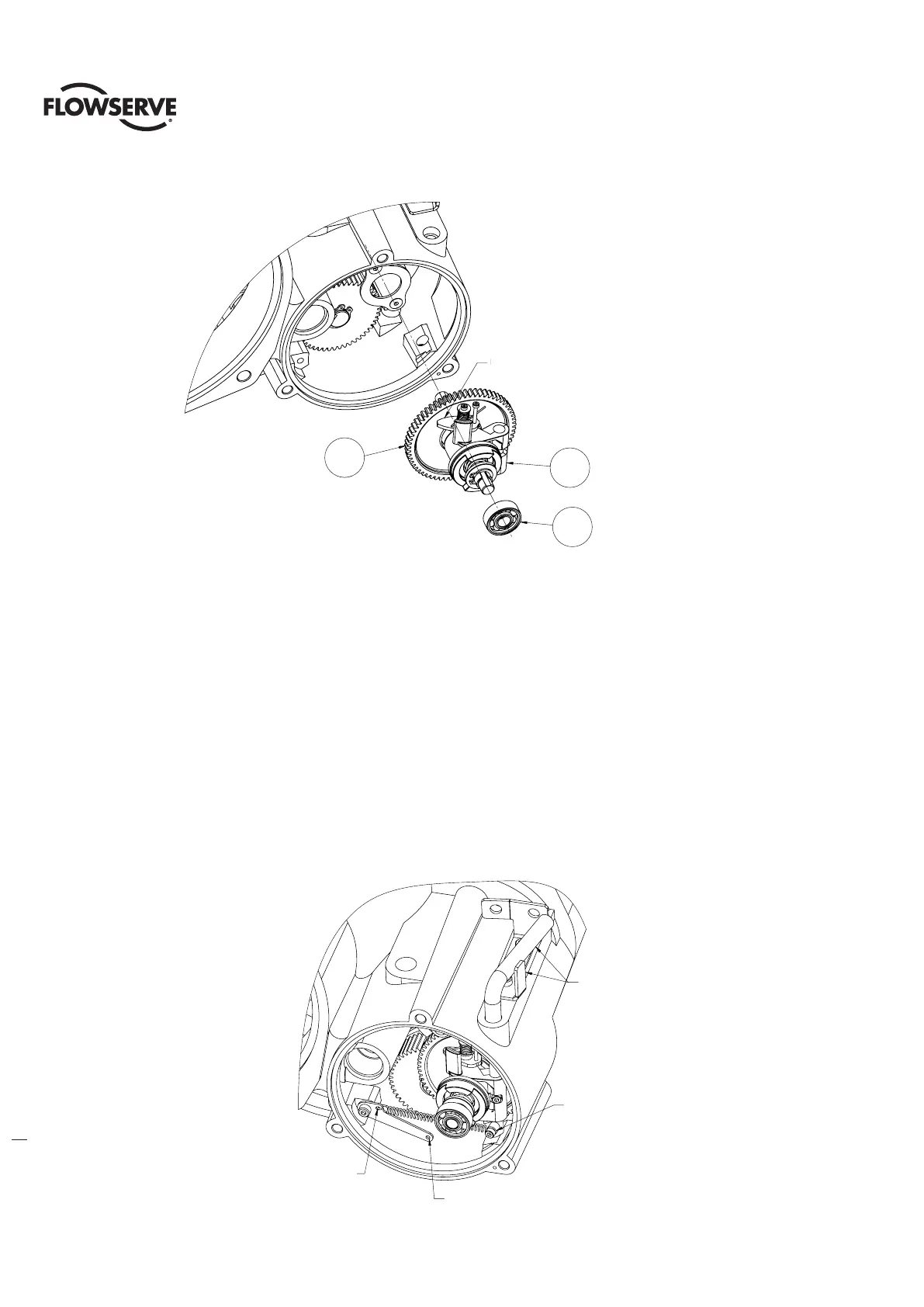

Figure 4.15 - Clutch Fork Shaft Remounting
Step 5, Declutch lever and spring return assembly.
Lightly lubricate ‘O’-ring (#9-8) and slide over declutch lever (#9-9). Slide declutch lever and ‘O’-ring thru housing bore
and down thru clutch fork bore and into the housing bore on other side ensuring that lever handle is installed properly
with declutch bracket (#9-6), lever should not swing outwards. Secure fork with M3 screw (9-10) by inserting screw
thru fork slot and into tap in lever and Tighten.
a
CAUTION: Do not lift unit by declutch lever.
Slide spring end (#9-14) on M3 screw (#9-14), then slide spacer (#915) on to M3 screw and secure assembly to
bottom tap in declutch lever. The spacer should be in-between the spring and declutch lever. Place M4 screw (#9-2)
into spring bracket (#9-12). Hook the spring bracket on to the declutch return spring (#9-14) that has already been
installed on to the lever, (See Figure 4.16) for correct hole for spring to hook into. Carefully stretch the spring and
position the M4 screw in place on housing and tighten.
Figure 4.16 - Declutch Spring Assembly View. QX-1 & 2 shown
7
6
9-13
LATCH TO GEAR FACE
CORRECT LEVER ORIENTATION
LEVER TO BRACKET
QX-1 & 2 BRACKET
HOLE FOR SPRING
QX-3 THRU 5 BRACKET
SPRING TO BE IN-BETWEEN
SCREW HEAD AND SPACER
Latch To Gear Face
7
9-13
6
Correct lever orientation
lever to bracket
Spring to be in-between
screw head and spacer
Qx-1 & 2 bracket
hole for spring
Qx-3 thru 5 bracket
hole for spring
