Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
44
4.10 Torque Nut.
Table 4.21 - Torque nut, F/FA-10, QX-1 & 2 and F/FA-12 and -14, QX-1 thru 5
ITEM NUMBER DESCRIPTION QTY.
13-6 TORQUE NUT 1
13-7 SCO HEAD CAP SCREW 1

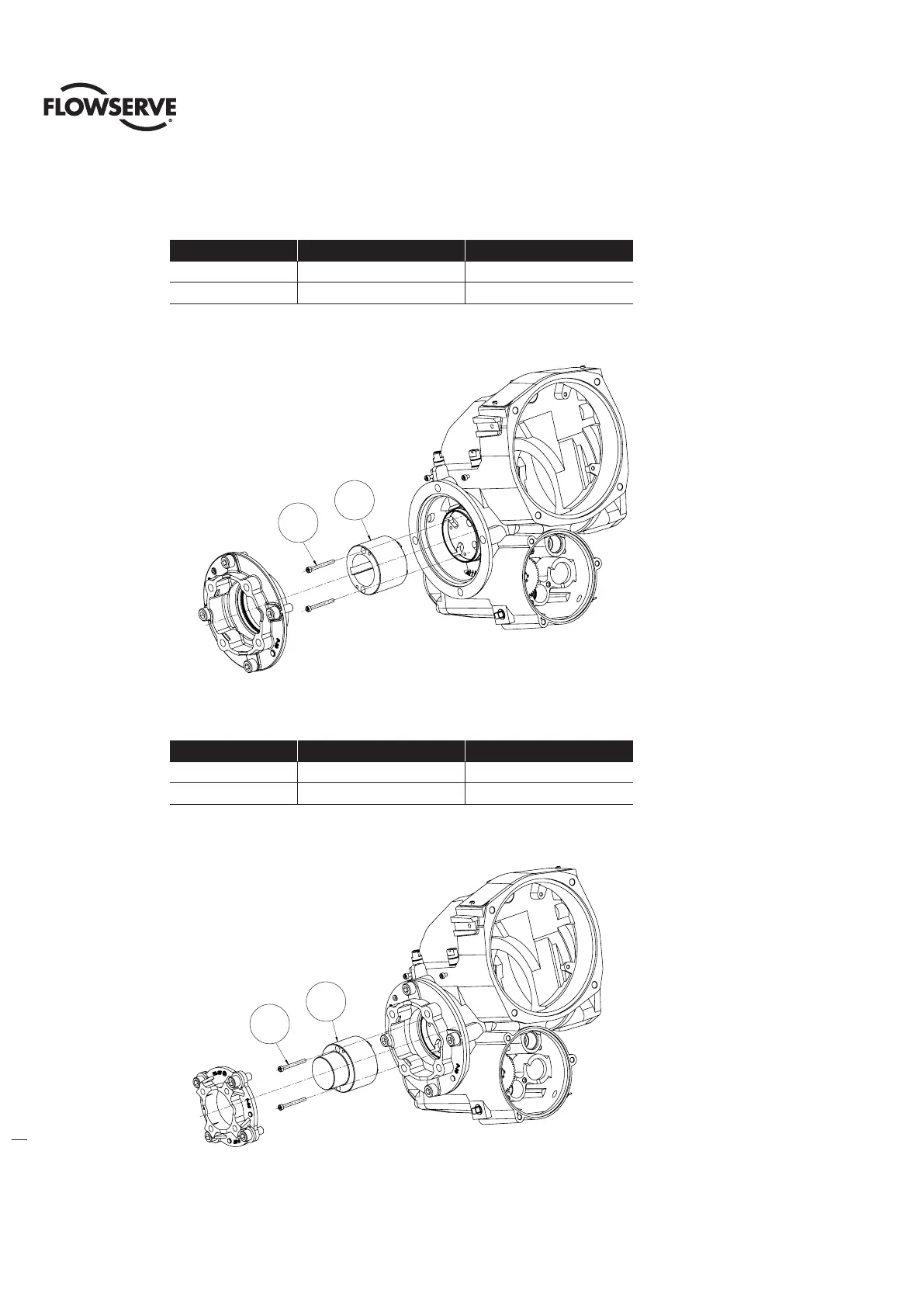

Figure 4.25 - Torque nut, F/FA-10, QX-1 & 2 and F/FA-12 and -14, QX-1 thru 5
Table 4.22 - Torque nut F/FA-05 and -07 QX-1 & 2 and F/FA-10, QX-1 thru 5
ITEM NUMBER DESCRIPTION QTY.
13-7 SOCKET HEAD CAP SCREW 1
16-7 TORQUE NUT 1
Figure 4.26 - Torque nut, F/FA-05 and -07, QX-1 & 2 and F/FA-10, QX-1 thru 5
13-7
13-6
13-6
13-7
13-7
16-1
16-1
13-7
