Flowserve Limitorque QX Maintenance And Spare Parts

Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
60
Table 6.8 - DCV Control Module Subassembly
ITEM NUMBER DESCRIPTION QTY.
1 FLAT WASHER 1
2 HEX STANDOFF, SHORT 1
3 HEX STANDOFF, LONG 3
4 PVC TUBE 1
5 DC BOARD 1
6 SOCKET HD CAP SCREWS 1
7
BRACKET, CONNECTOR RETAINER
(OPTIONAL)
1
8 WIRING HARNESS 1

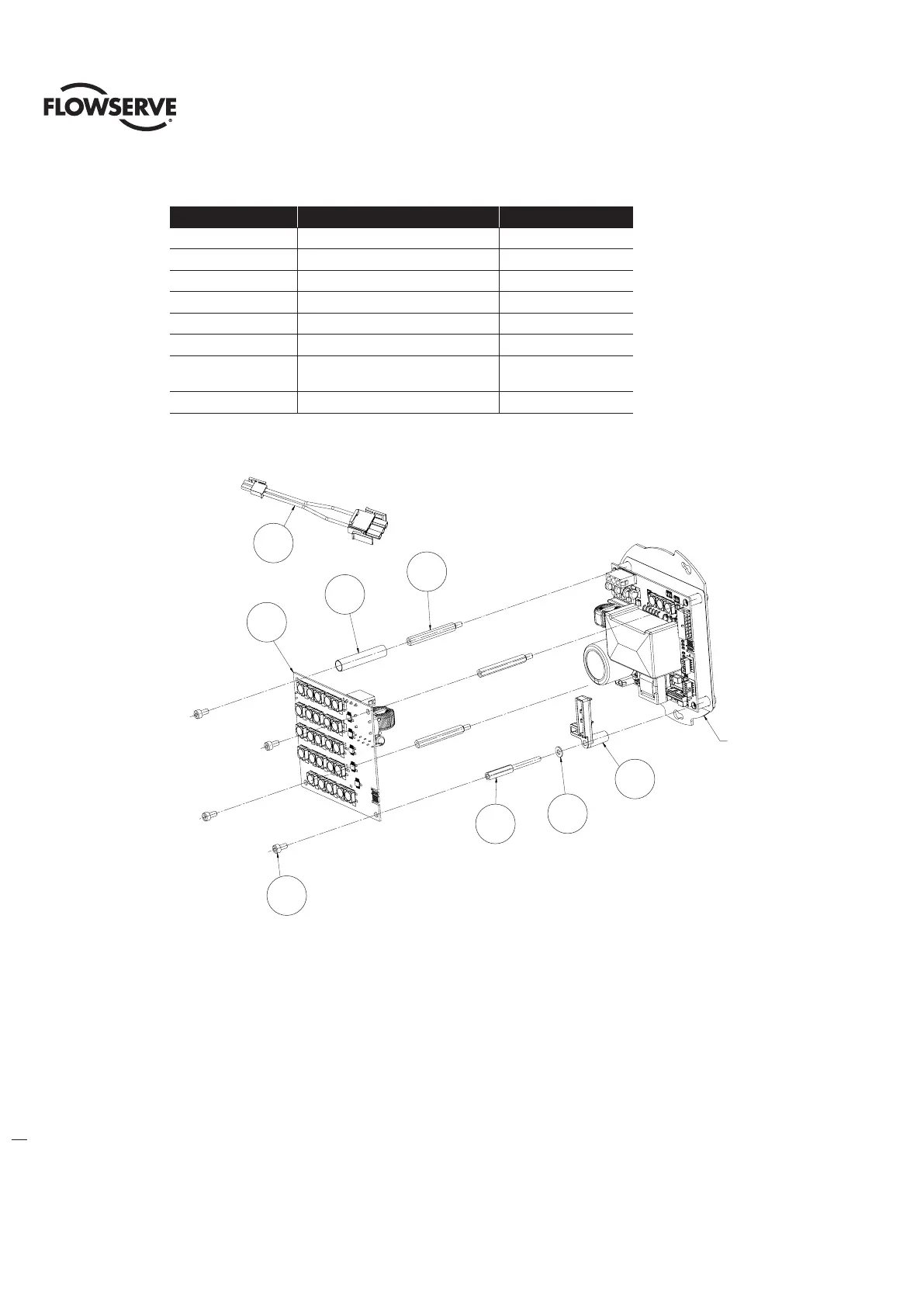

Figure 6.8 - DCV Control Module Subassembly
NOTE: If optional bracket (Item 7) is not used the flat washer (Item 1) and short standoff (Item 2) will be replaced with
the long spacer (Item 3).
3
2
6
5
1
MOTOR CONTROLLER
BOARD ASSEMBLY
PER FIGURE 6-3-2
4
7
OPTIONAL
8
1
2
3
4
5
6
Motor controller
board assembly
per gure 6-3-2
7
Optional
8
