Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
32

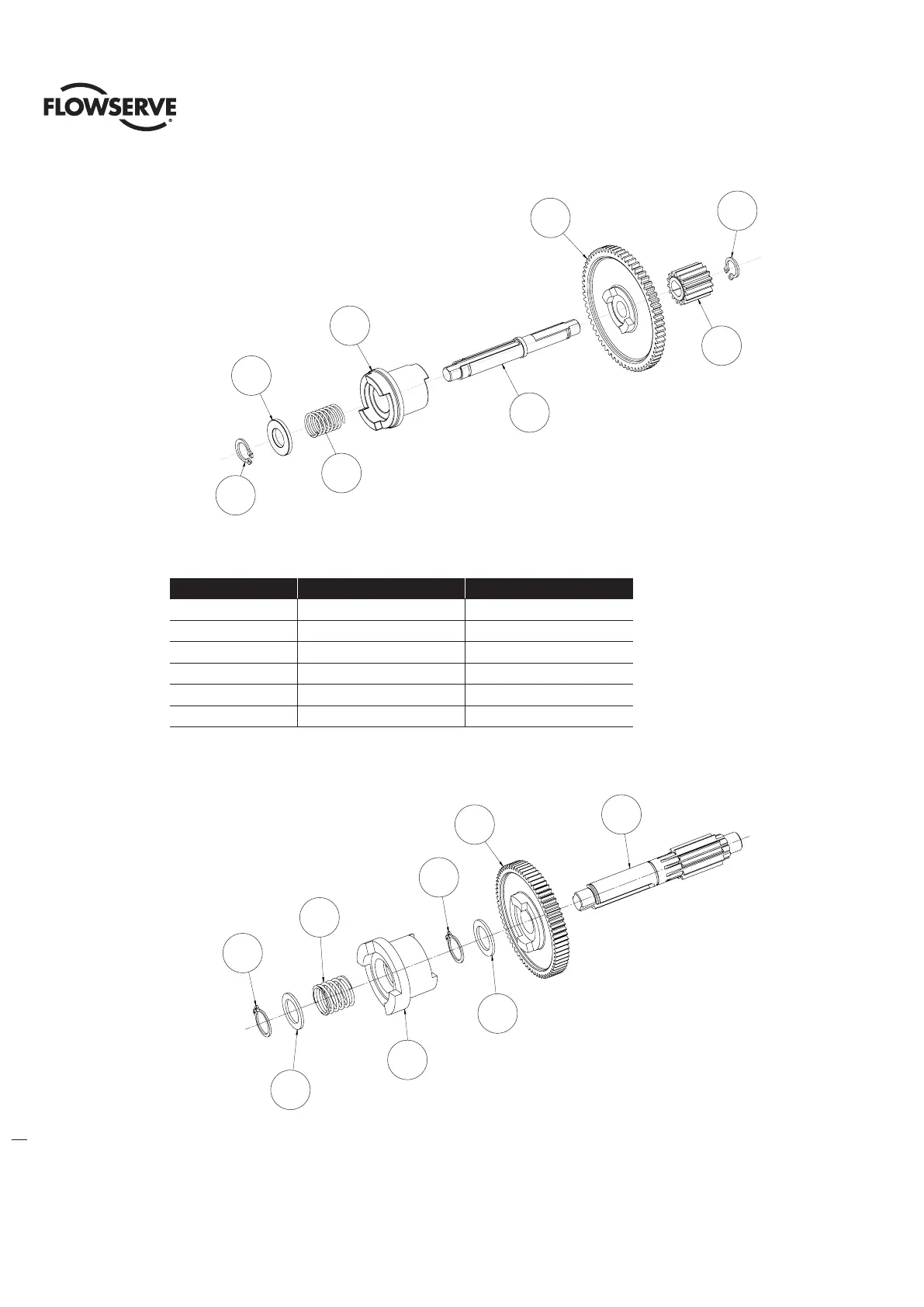

Figure 4.12 - Clutch Shaft Subassembly, Item 6. QX-1 & 2
Table 4.12 - Clutch Shaft Subassembly Item 6. QX-3 Thru 5
ITEM NUMBER DESCRIPTION QTY.
6-1 CLUTCH SHAFT 1
6-2 MOTOR CLUTCH GEAR 1
6-5 CLUTCH 1
6-6 COMPRESSION SPRING 1
6-7 WASHER 2
6-8 RETAINING RING 2
Figure 4.13 - Clutch Shaft Subassembly, Item 6. QX-3 thru 5
6-1
6-2
6-3
6-4
6-5
6-6
6-7
6-8
6-1
6-2
6-7
6-8
6-5
6-6
6-7
6-8
6-4
6-2
6-5
6-3
6-1
6-6
6-7
6-8
6-2
6-1
6-8
6-6
6-8
6-7
6-5
6-7
