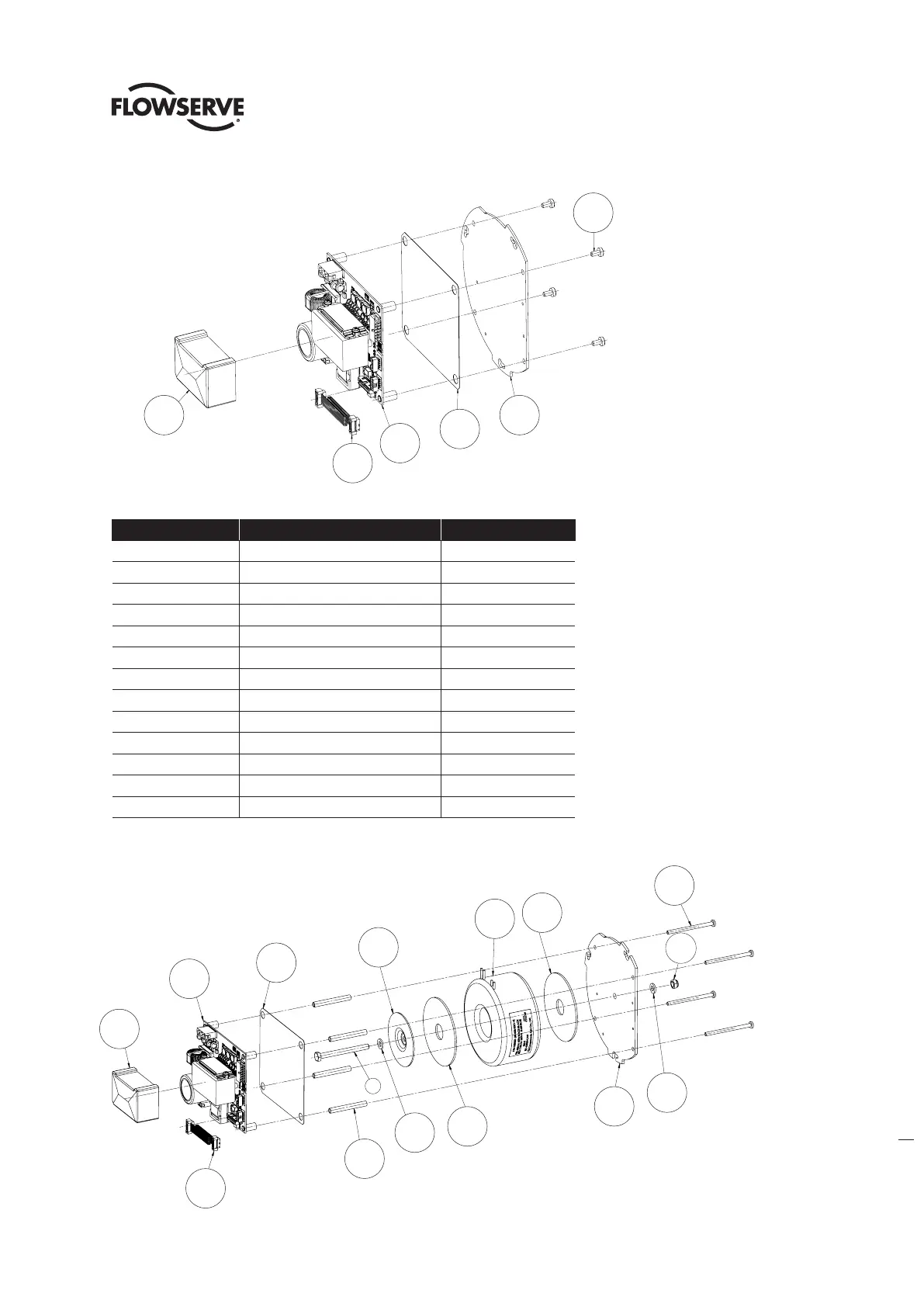

Flowserve Limitorque QX - Figure 6.6 Low Voltage (Less than 250 VAC) Control Module Subassembly; Figure 6.7 High Voltage (Greater than 250 VAC) Control Module Subassembly; Table 6.7 High Voltage (Greater than 250 VAC) Control Module Subassembly

59
Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
flowserve.com
Figure 6.6 - Low Voltage (Less than 250 VAC) Control Module Subassembly
Table 6.7 - High Voltage (Greater than 250 VAC) Control Module Subassembly
ITEM NUMBER DESCRIPTION QTY.
1 CHASSIS PLATE 1
2 RUBBER PAD, TOROID 2
3 TRANSFORMER, TOROID 1
4 MOUNTING PLATE, TOROID 1
5 FLAT WASHER 2
6 HEX HEAD CAP SCREW 1
7 HEX NUT 1
8 MOTOR CONTROLLER BOARD 1
13 SPACER 4
14 SHIELD 1
15 PAN HEAD CAP SCREW 4
16 COVER, IRAM 1
17 RIBBON CABLE 1
Figure 6.7 - High Voltage (Greater than 250 VAC) Control Module Subassembly
1-18
1-1
1-7
1-2
1-10
1-9
1
1-8
1-16
1-14
1-11
1-12
1-11
1-17
1-13
1-15
1-7
1-2
1-10
1-9
1-14
1-10
1-18
1-9
1-2
1-7
1-1
1-9
1-2
1-7
1-8
1
1-13
1-12
1-11
1-10
1-17
1-14
1-11
1-14
1-16
