Table 4.15 Baseplate F/FA-10 QX-1 & 2, F/FA-12 & 14 QX-3 thru 5
ITEM NUMBER DESCRIPTION QTY.
3 BASEPLATE ASSEMBLY 1
4-1 'O'-RING 1
4-2 SOCKET HEAD CAP SCREWS 4

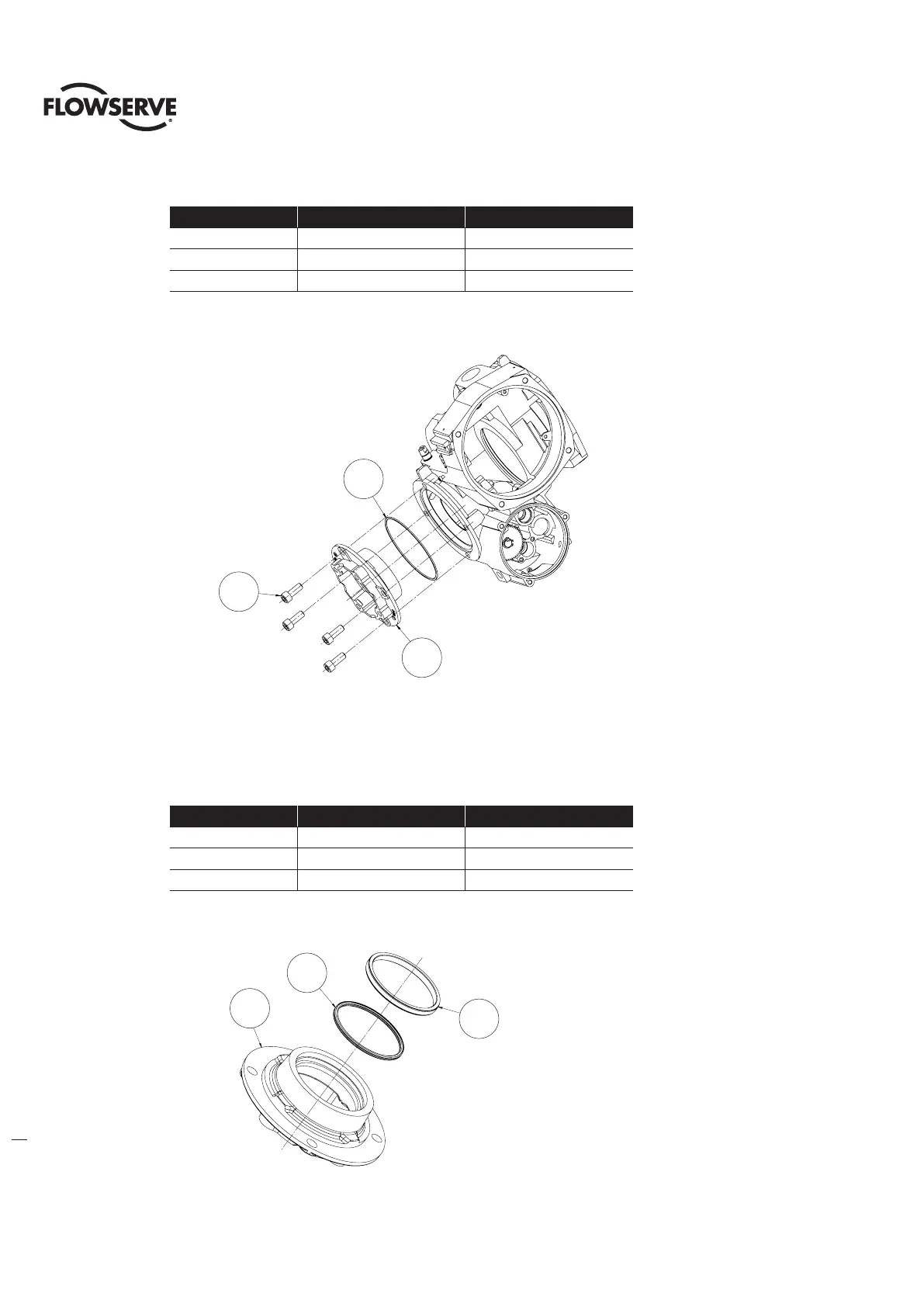

Figure 4.18 - Baseplate, F/FA-10 QX-1 & 2, F/FA-12 & 14, QX-3 thru 5
Step 1
Using a M8 hex key, remove the M10 screws (#4-2) and remove baseplate (#3).
Table 4.16 - Baseplate subassembly Item 3
ITEM NUMBER DESCRIPTION QTY.
3-1 BASEPLATE 1
3-2 QUAD RING 1
3-3 BUSHING 1
Figure 4.19 - F/FA-10 QX-1 & 2, F/FA-12 & 14, QX-3 thru 5 Baseplate Subassembly, Item 3
QX-1 & 2 Baseplate shown
4-1
3
4-2
3-1
3-2
3-3
4-1
4-2
3
3-1
3-2
3-3
