Flowserve Limitorque QX Maintenance And Spare Parts

21
Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
flowserve.com
4
Mechanical Assemblies
4.1 Motor subassembly. QX-1 thru 5.
NOTE: Proper motor testing is required when replacing motor. Consult your Limitorque representative or the
Limitorque factory to replace with correct motor.
Table 4.1 - Motor Parts List
ITEM NUMBER DESCRIPTION QTY.
11 MOTOR 1
13-4 SOCKET HEAD CAP SCREWS 5
15-1 'O'-RING 1
15-2 COVER, MOTOR 1
15-6 SOCKET HEAD CAP SCREWS 3

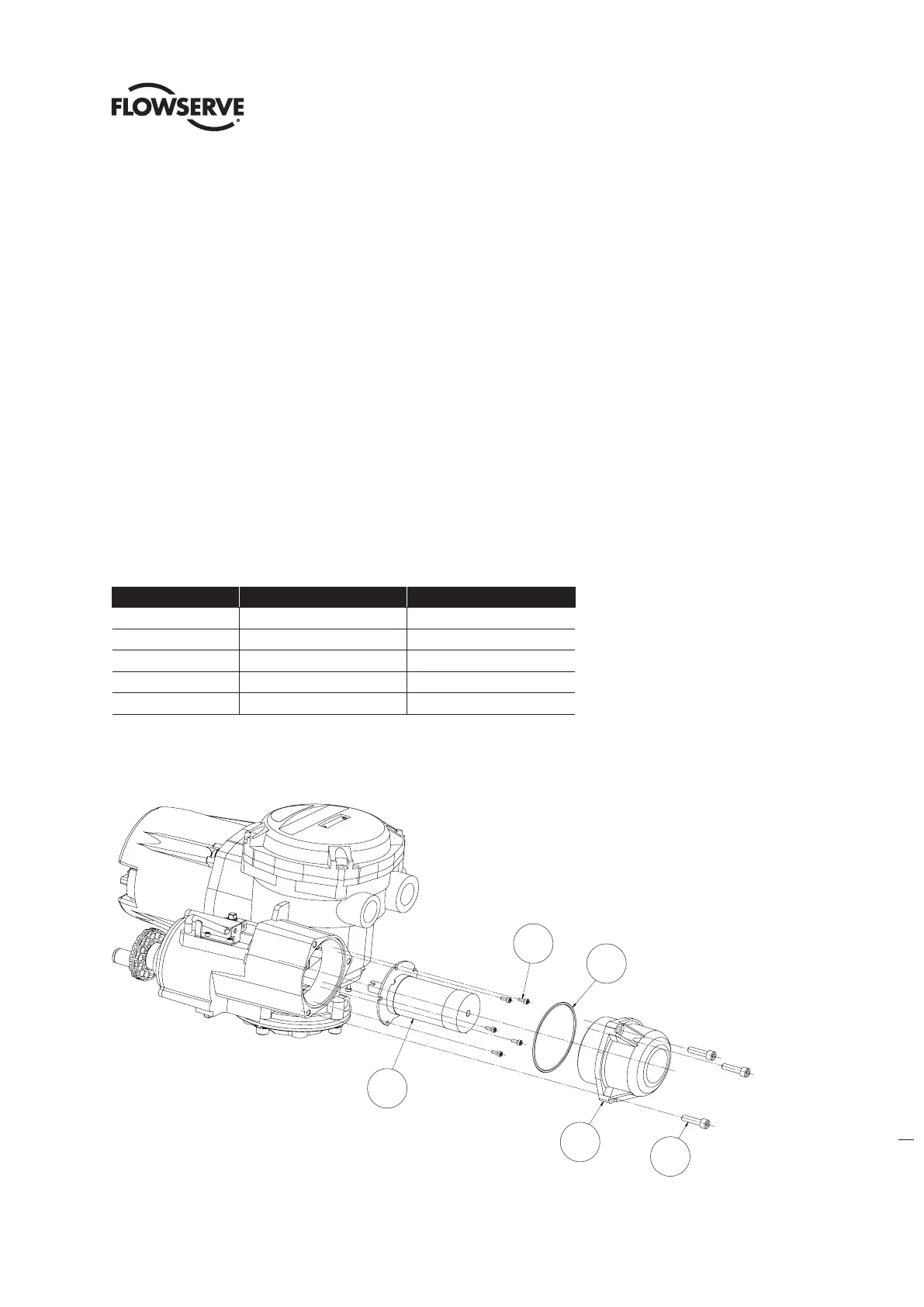

Figure 4.1 - Motor Cover and Motor Subassembly Removal
15-6
15-2
13-4
11
15-1
13-4
15-1
11
15-2
15-6
