Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
74

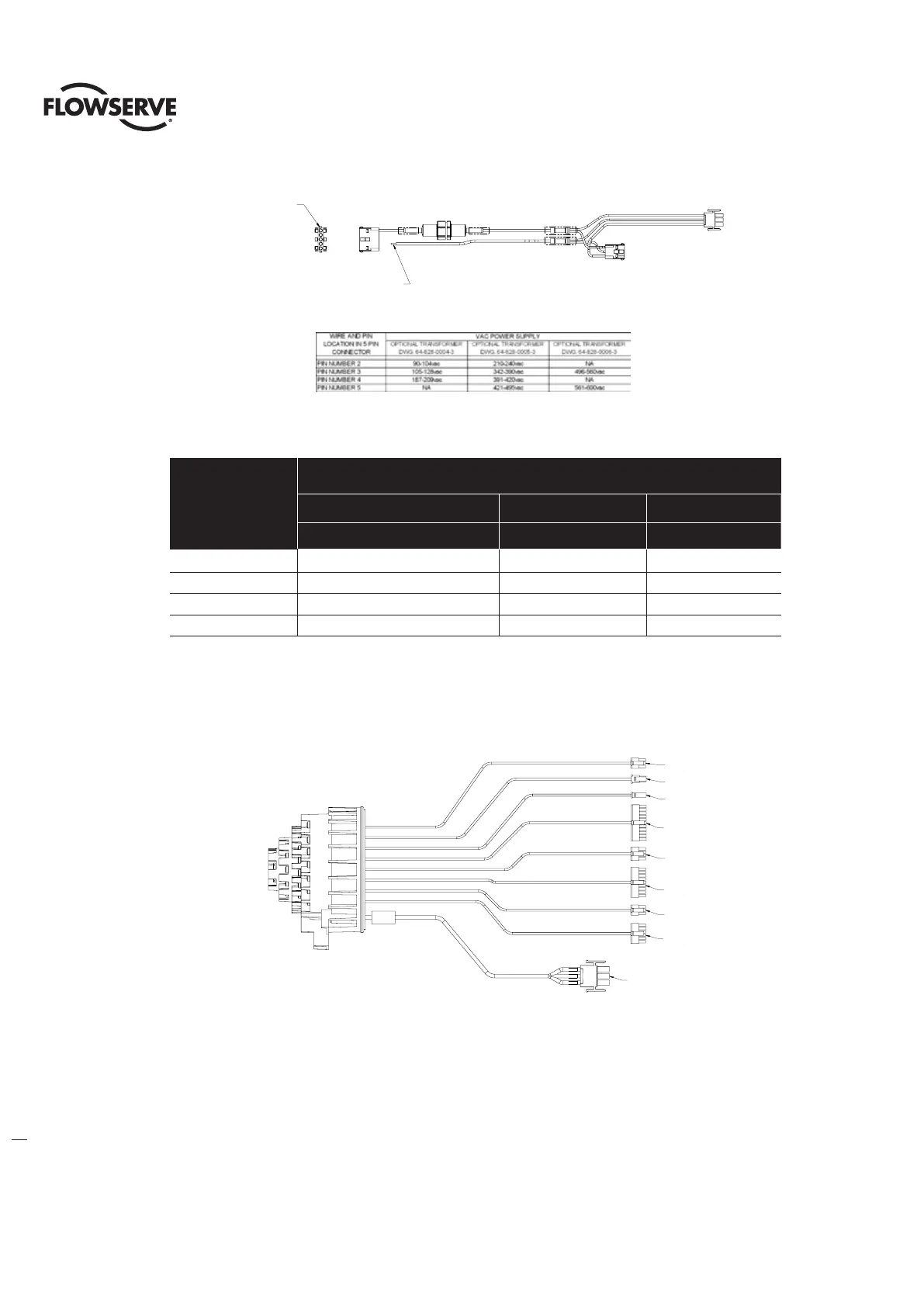

Figure 7.9 - Optional Transformer Harness Connector to Wire Position per Supply Voltage
Table 7.1 Connector to Wire Position per Supply Voltage
Wire and Pin Location
in 5 Pin Connector
VAC Power Supply
Optional Transformer Optional Transformer Optional Transformer
DWG. 64-828-0004-3 DWG. 64-828-0005-3 DWG. 64-828-0006-3
PIN NUMBER 2 90-104vac 210-240vac N/A
PIN NUMBER 3 105-128vac 342-390vac 496-560vac
PIN NUMBER 4 187-209vac 391-420vac N/A
PIN NUMBER 5 N/A 421-495vac 561-600vac
7.4 Terminal Block Wiring Harness Numbers
Figure 7.10 - Terminal Block Wiring Harness And Connector Numbers
5
4
3
2
1
SEE TABLE FOR WIRE AND SOCKET PIN
LOCATION IN 5 PIN CONNECTOR
PIN NUMBER 1
3 PIN CONNECTOR
(J9)
12 PIN CONNECTOR
(J1)
3 PIN CONNECTOR
(J8)
18 PIN CONNECTOR
(J2)
4 PIN CONNECTOR
(J4)
22 PIN CONNECTOR
(J5)
2 PIN CONNECTOR
(J6)
4 PIN CONNECTOR
(J3)
6 PIN CONNECTOR
(J7)
6 Pin connector (J7)
4 Pin connector (J3)
2 Pin connector (J6)
22 Pin connector (J5)
4 Pin connector (J4)
18 Pin connector (J2)
3 Pin connector (J8)
12 Pin connector (J1)
3 Pin connector (J9)
Pin number
See table for wire and socket pin
location in 5 pin connector
