4.4 Gearing and Clutching.
NOTE: Sections 4.2 – 4.8 require the actuator to be removed from the mounting plate and the oil drained.

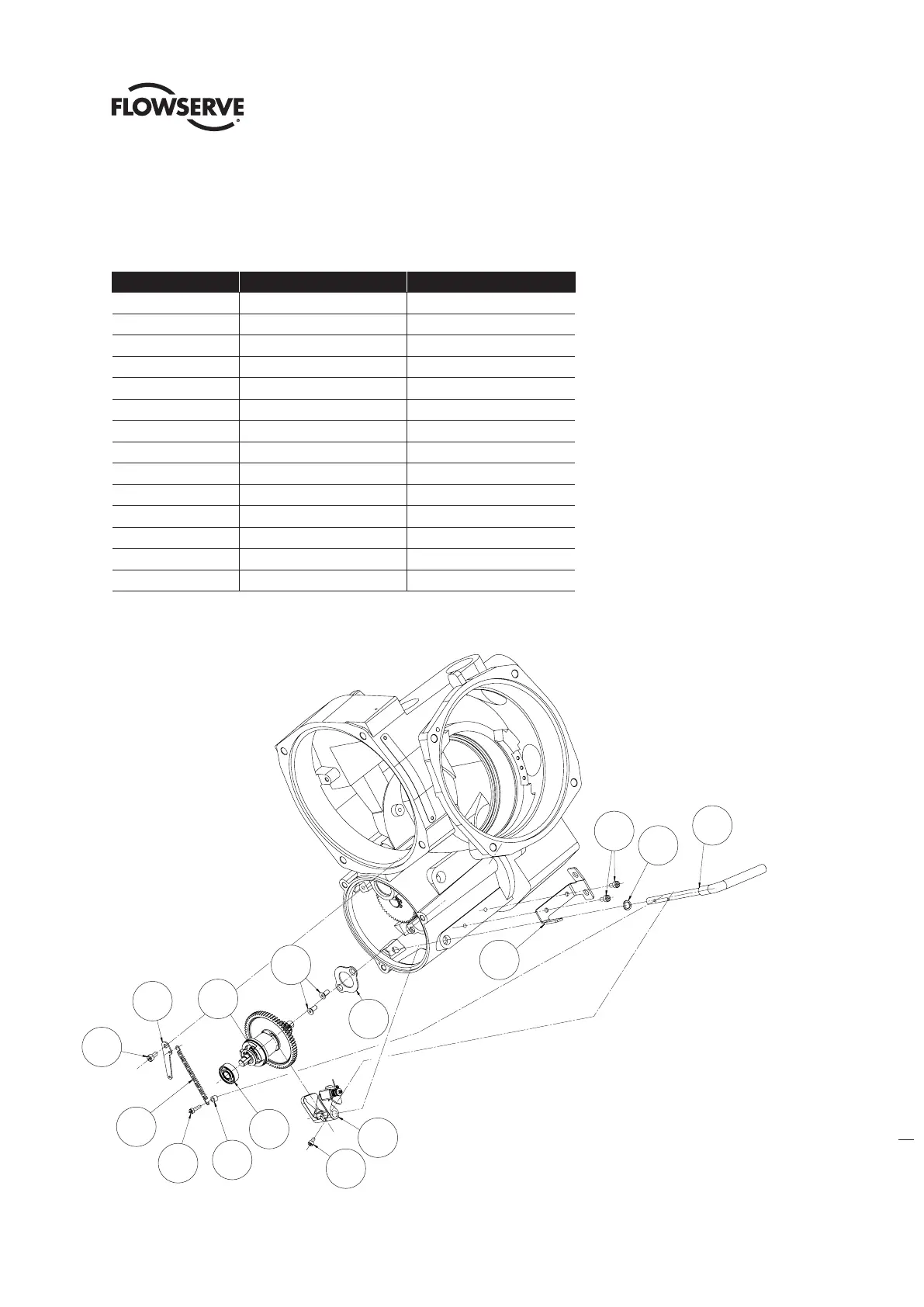

Table 4.9 - Gearing and clutching, QX-1 & 2
ITEM NUMBER DESCRIPTION QTY.
6 CLUTCH SHAFT SUBASSEMBLY 1
7 CLUTCH FORK SUBASSEMBLY 1
9-4 PLATE, GEAR 1
9-5 SOCKET HEAD FLAT SCREW 2
9-6 BRACKET, DECLUTCH 1
9-7 SOCKET HEAD FLAT SCREW 2
9-8 'O'-RING 1
9-9 DECLUTCH LEVER 1
9-10 SOCKET HEAD CAP SCREW 1
9-11 EXTENSION SPRING 1
9-12 BRACKET 1
9-13 BALL BEARING 1
9-14 SOCKET HEAD CAP SCREW 1
9-15 SPACER, DECLUTCH SPRING 1
Figure 4.10 - Gearing and clutching, QX-1 & 2
9-9
9-8
9-7
9-6
9-4
9-5
6
9-13
9-14
7
9-10
9-12
9-2
9-11
9-15
9-2
9-7
9-8
9-9
9-6
7
9-5
9-10
6
9-13
9-4
9-15
9-14
9-11
9-12
