Flowserve Limitorque QX Maintenance And Spare Parts

Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
66
STEP 12 – ALIGNMENT OF OPTION BOARDS INTO LCS/MAIN BOARD
Line up screw sockets and stack the boards so that J7 (option board pins and sockets) fits in with the main board
or any boards that are installed previously. Place shield so sockets match up with cuts in shield. If DeviceNet board
(61-825-0058-4) is used, position grounding wire on top of shield before fastening screws. Fasten four screws, then
align in cover and install to main housing. Please refer to Table 6.10 for the connector numbers.
Table 6.10 - Control Board Connectors
Control Board Connector Number
DeviceNet X1
Foundation Fieldbus X1
Profibus PA X1
PBDP X1
Digital Out J2
Modbus/DDC X1
Analog J2

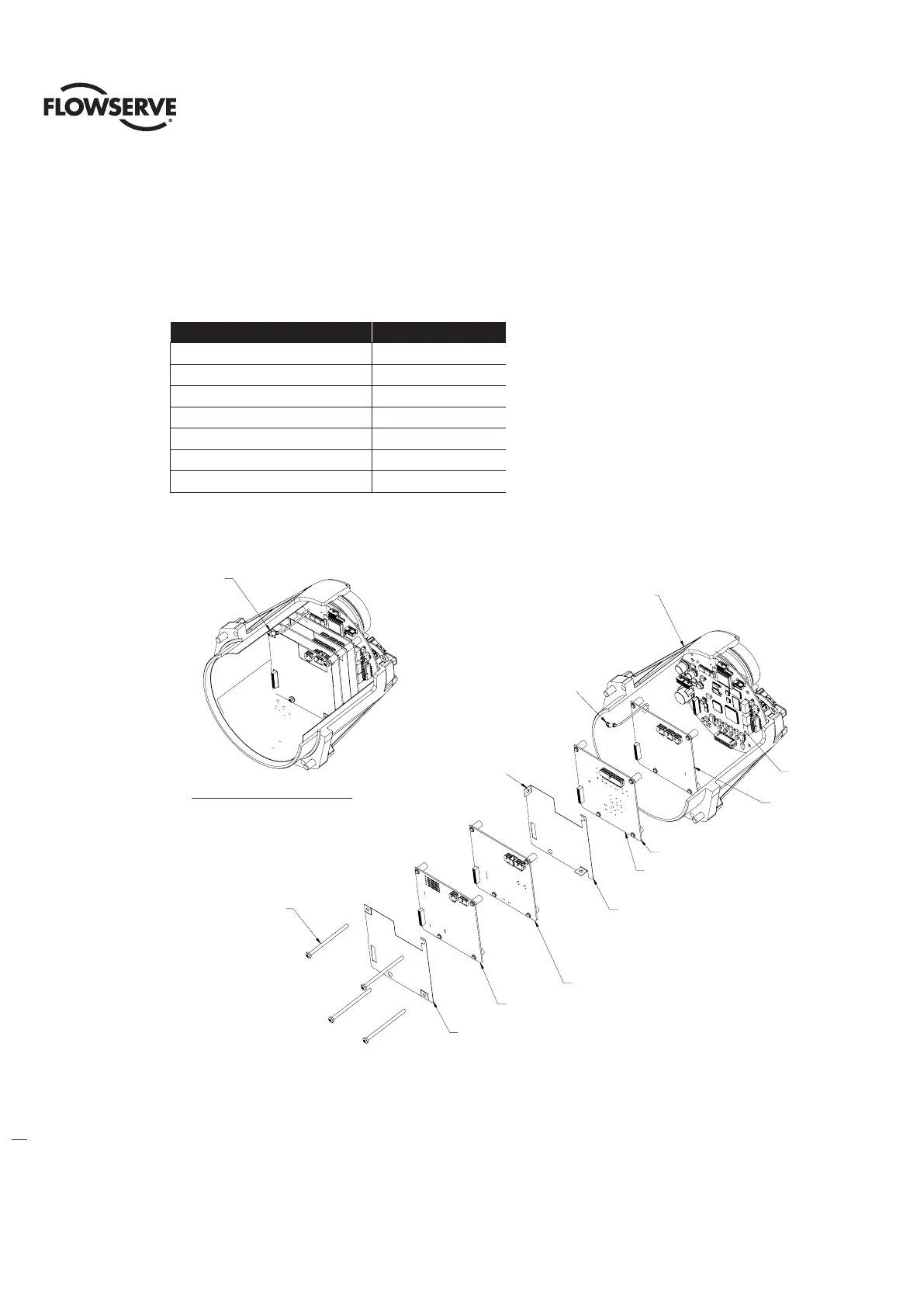

Figure 6.14 - Option Board Assembly
DEVICENET OPTION BOARD
GROUNDING WIRE MOUNTED
UNDER TOP OPTION BOARD
SCREW HEAD.
ASSEMBLED COVER VIEW
DIGITAL OUTPUT BOARD SHOWN MOUNTING
IN BETWEEN OTHER OPTION BOARDS, NOTE THAT
SHIELD IS REQUIRED ON TOP OF THIS BOARD IF
MOUNTED AS TOP OPTION BOARD OR MOUNTED
IN BETWEEN OTHER OPTION BOARDS.
THIS SHIELD WITH TABS BENT IS ONLY REQUIRED WHEN MOUNTING
DIGITAL OUTPUT BOARD BETWEEN ONE OPTION BOARD AND THE
MAIN BOARD OR BETWEEN 2 OPTION BOARDS.
BEND UP TAB
2 PLACES
OPTION BOARD 3
OPTION BOARD 4
TOP SHIELD REQUIRED IF
ONE OR MORE OPTION
BOARDS ARE PROVIDED.
OPTION BOARD 2
OPTION BOARD 1
MOUNTING SCREWS
SEE TABLE FOR PART
NUMBER AND SIZE
CONTROLS COVER ASSEMBLY
GROUND WIRE FOR DEVICENET
BOARD MUST BE MOUNTED UNDER
TOP OPTION BOARD ABOVE THE
SHIELD AND CONTACTING THE
SCREW. MOUNTING SCREW AS
SHOWN IN 'ASSEMBLED COVER VIEW'
MAIN BOARD
Ground wire for devicenet
board must be mounted under
top option board above the
shield and contacting the
screw. Mounting screw as
shown in ‘assembled cover view’
ASSEMBLED COVER VIEW
Bend up tab
2 places
Top shield required if
one or more option
boards are provided.
Mounting screws
see table for part
number and size
Option board 4
This shield with tabs bent is only required when mounting
Digital output board between one option board and the
Main board or between 2 option boards
Digital output board shown mounting in between other
option boards, note that shield is required on top of this
board if mounted as top option board or mounted
In between other option boards
Devicenet option board grounding
wire mounted under top option
board screw head
Option board 3
Option board 2
Option board 1
Main board
Controls cover assembly
