Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
26

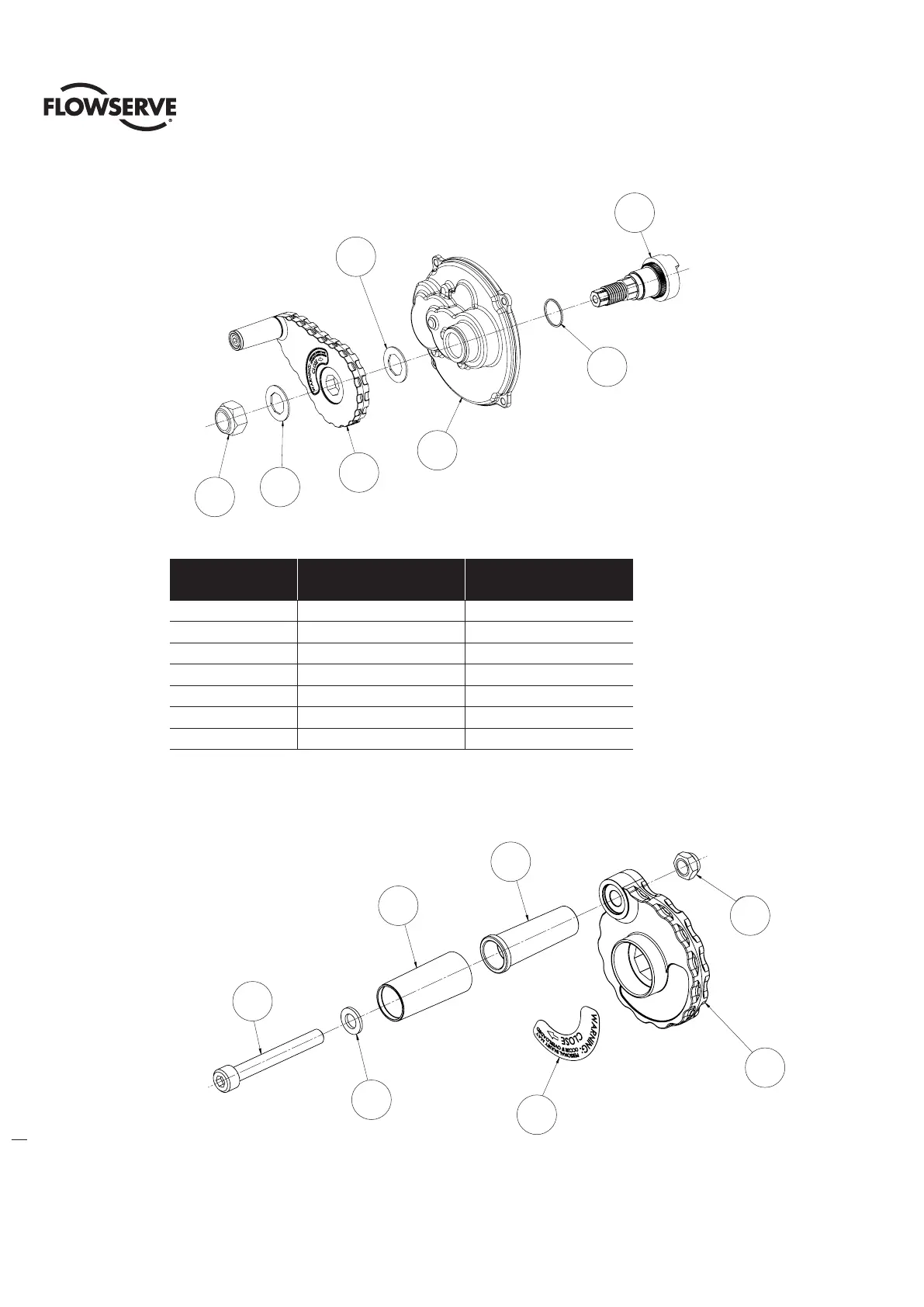

Figure 4.6 - Handwheel Cover Subassembly, Item 10. QX-3 thru 5
Table 4.6 - Handwheel Subassembly, Item 10-4
ITEM NUMBER
DESCRIPTION
QTY.
1 HANDWHEEL 1
2 SPINNER 1
3 SPINNER ROD 1
4 FLAT WASHER 1
5 SOCKET HEAD CAP SCREW 1
6 HEX NUT 1
7 HANDWHEEL LABEL 1
Figure 4.7 - Handwheel Subassembly, Item 10-4. QX-1 & 2 shown.
10-1
10-2
10-3
10-5
10-4
10-5
10-6
1
6
2
4
3
5
7
5
10-5
10-3
10-2
10-1
10-4
10-5
10-6
2
3
6
1
7
4
