Flowserve Limitorque QX Maintenance And Spare Parts

Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
30
Table 4.10 - Gearing and clutching, QX-3 thru 5
ITEM NUMBER DESCRIPTION QTY.
6 CLUTCH SHAFT SUBASSEMBLY 1
7 CLUTCH FORK SUBASSEMBLY 1
8 SPUR IDLER SUBASSEMBLY 1
9-4 PLATE, GEAR 1
9-5 SOCKET HEAD FLAT SCREW 2
9-6 BRACKET, DECLUTCH 1
9-7 SOCKET HEAD FLAT SCREW 2
9-8 'O'-RING 1
9-9 DECLUTCH LEVER 1
9-10 SOCKET HEAD CAP SCREW 1
9-11 EXTENSION SPRING 1
9-12 BRACKET 1
9-13 BALL BEARING 1
9-14 SOCKET HEAD CAP SCREW 1
9-15 SPACER, DECLUTCH SPRING 1

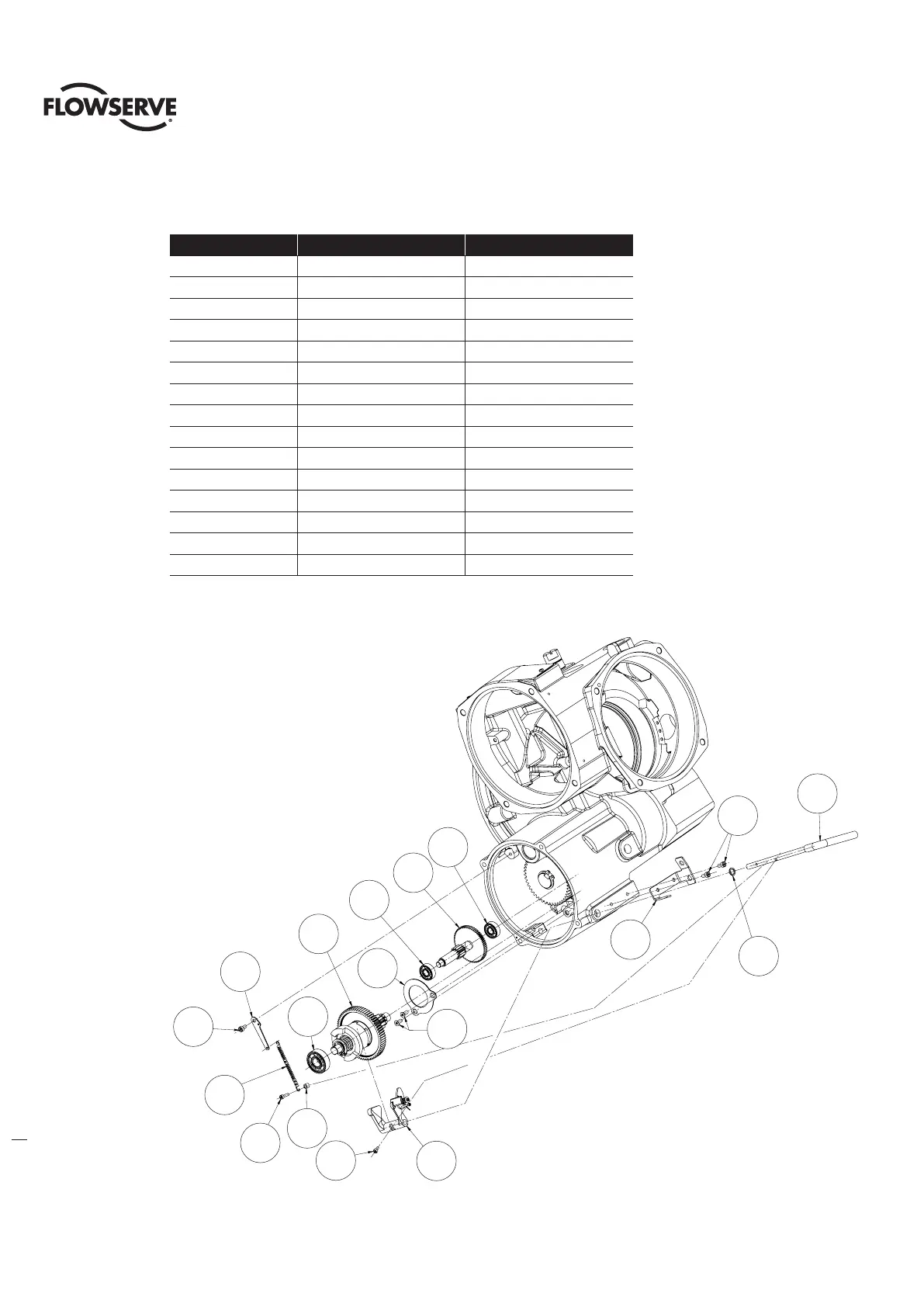

Figure 4.11 - Gearing and clutching, QX-3 thru 5
9-9
9-8
9-7
9-6
8
9-4
9-5
6
9-12
9-2
9-14
9-10
7
9-13
9-3
9-3
9-11
9-15
9-2
9-12
6
9-3
8
9-3
9-4
9-5
9-13
9-11
9-15
9-14
9-10
7
9-9
9-7
9-6
9-8
