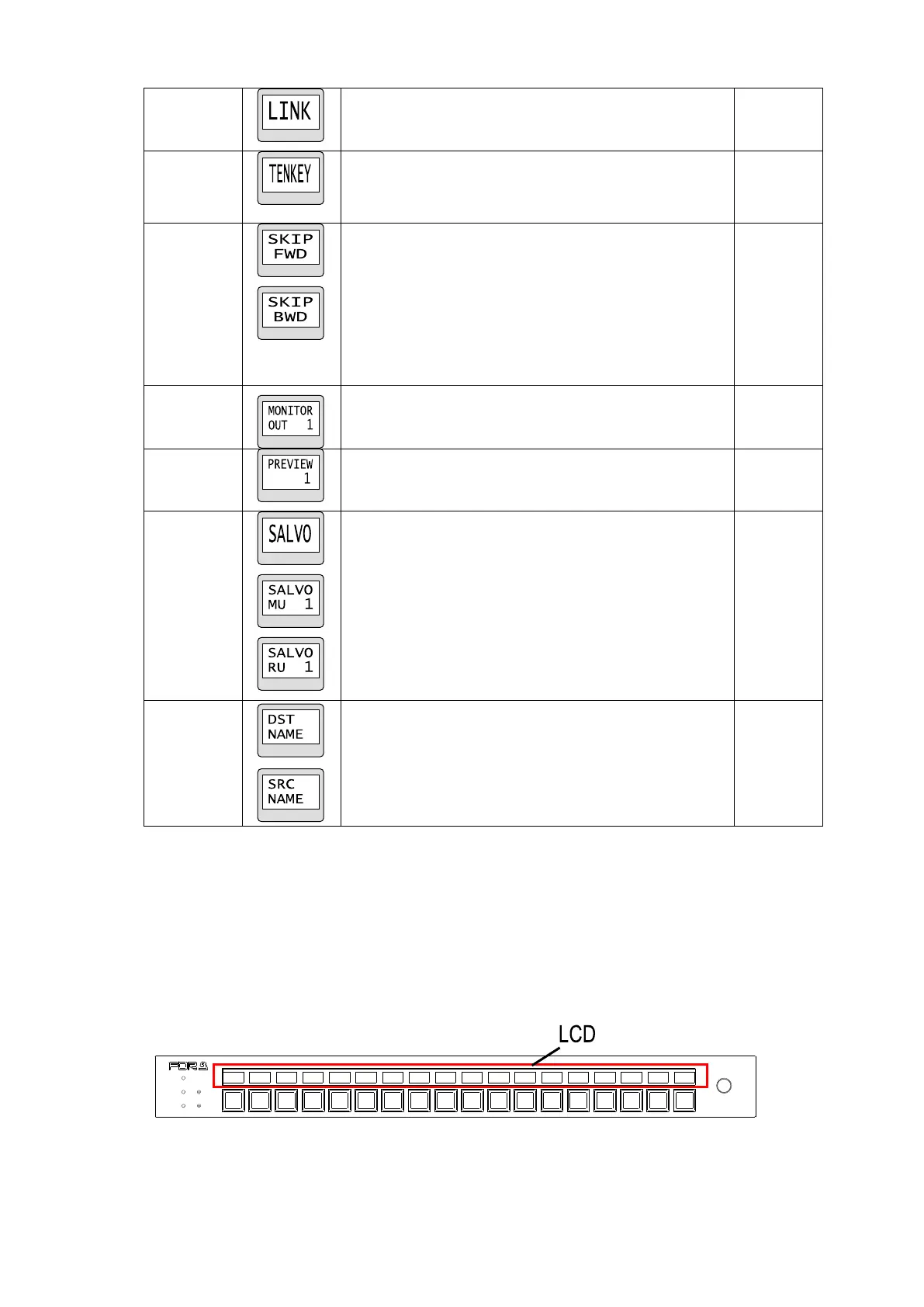

74
LINK
Allows you to enable or disable the LINK function.
6-2-4
TENKEY
Allows you to enable numeric keypad mode on the
remote control panel for assigning destinations and
source by their channel numbers.
* Supported only for MFR-39RU and MFR-39RUA.
6-1-1-2
SKIP
Allows you to skip the set number of destination or
source channels forward or backward to select one.
* The control knob needs to be pressed for Source
selections.
Button indications
Top: Channel number increases in the set step
Bottom: Channel number decreases in the set step
* Supported for MFR-39RU/18RU/16RUTA/
39RUA/18RUA.
6-1-1-1
Monitor Out
Allows you to enable or disable the Monitor Out
function.
* Supported only for MFR-5000.
6-4
Operation
Preview
Allows you to enable or disable the Operation Preview
function.
6-5
SALVO
Allows you to assign salvos to buttons and execute a
salvo assigned to the button or stored to a main or
remote control panel.
Button indications
Top: Salvo Store Allows you to assign salvos to
buttons.
Middle: Salvo Recall (MU) Executes a main
unit-stored salvo
Bottom: Salvo Recall (RU) Executes a remote control
panel button-assigned salvo
6-2-1
6-2-2
Display
Mode
* MFR-18RU/16RUTA/18RUA only
Allows you to change button indication between
Destination and Source channel names.
<Button indication>
Top: DST NAME
Bottom: SRC NAME
Destination Button LCD Indication
Usually destination channel names are displayed on the LCD above the destination buttons.
The MFR-18RU can also display source channel names that are selected for destinations. To
display source channel names, set the menu under Display Setting in the [Web-based Control:
RU Settings page]. Note that Display Mode buttons on MFR-18RU/16RUTA units can switch
the button indication between destination and source names.
In the case of breakaway switching with multiple levels, the name of the level with the smallest
number will be displayed.
MFR-18RU/18RUA
POWER
BUSY SETUP
LOCK RESET
MFR-18RU
REMOTE CONTROL UNIT
