5.4 Details of Function Codes
5-172
¡ Pattern operation setting example
C21 = 0: Perform a pattern operation for one cycle, then stop after the operation completion
Table 5.4-99
Operation Time Rotation Direction,
Accelerate/Decelerate Time
Stage No.
Setting Data Setting Data
Operation (Setting)
Frequency
Stage 1 C22 60.0 s C82 2: Forward, E10, E11 C05 multi-frequency 1
Stage 2 C23 100 s C83 1: Forward, F07, F08 C06 multi-frequency 2
Stage 3 C24 65.5 s C84 14: Reverse, E14, E15 C07 multi-frequency 3
Stage 4 C25 55.0 s C85 13: Reverse, E12, E13 C08 multi-frequency 4
Stage 5 C26 50.0 s C86 2: Forward, E10, E11 C09 multi-frequency 5
Stage 6 C27 72.0 s C87 4: Forward, E14, E15 C10 multi-frequency 6
Stage 7 C28 35.0 s C88 2: Forward, E10, E11 C11 multi-frequency 7

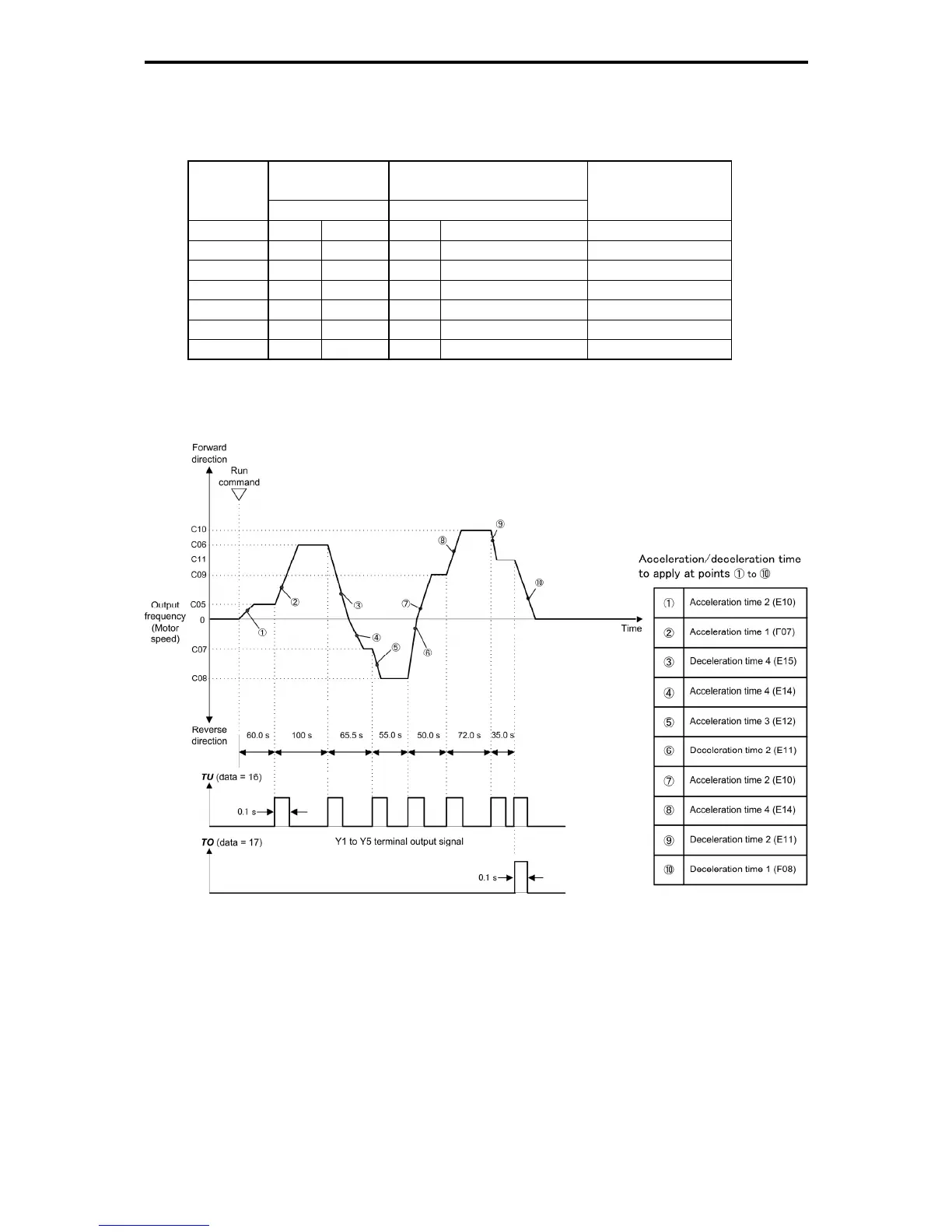

When expressed in the figure, the pattern operation becomes as follows.
Fig. 5.4-78
For the deceleration time after completion of one cycle, the set deceleration and stopping values of "F08
Deceleration time 1" is applied.
