5.4 Details of Function Codes
5-219
Details of
Function Codes
F codes
E codes
C codes
P codes
H codes
A codes
b codes
r codes
J02 to J06
d codes
U codes
y codes
Chapter 5 Function Code

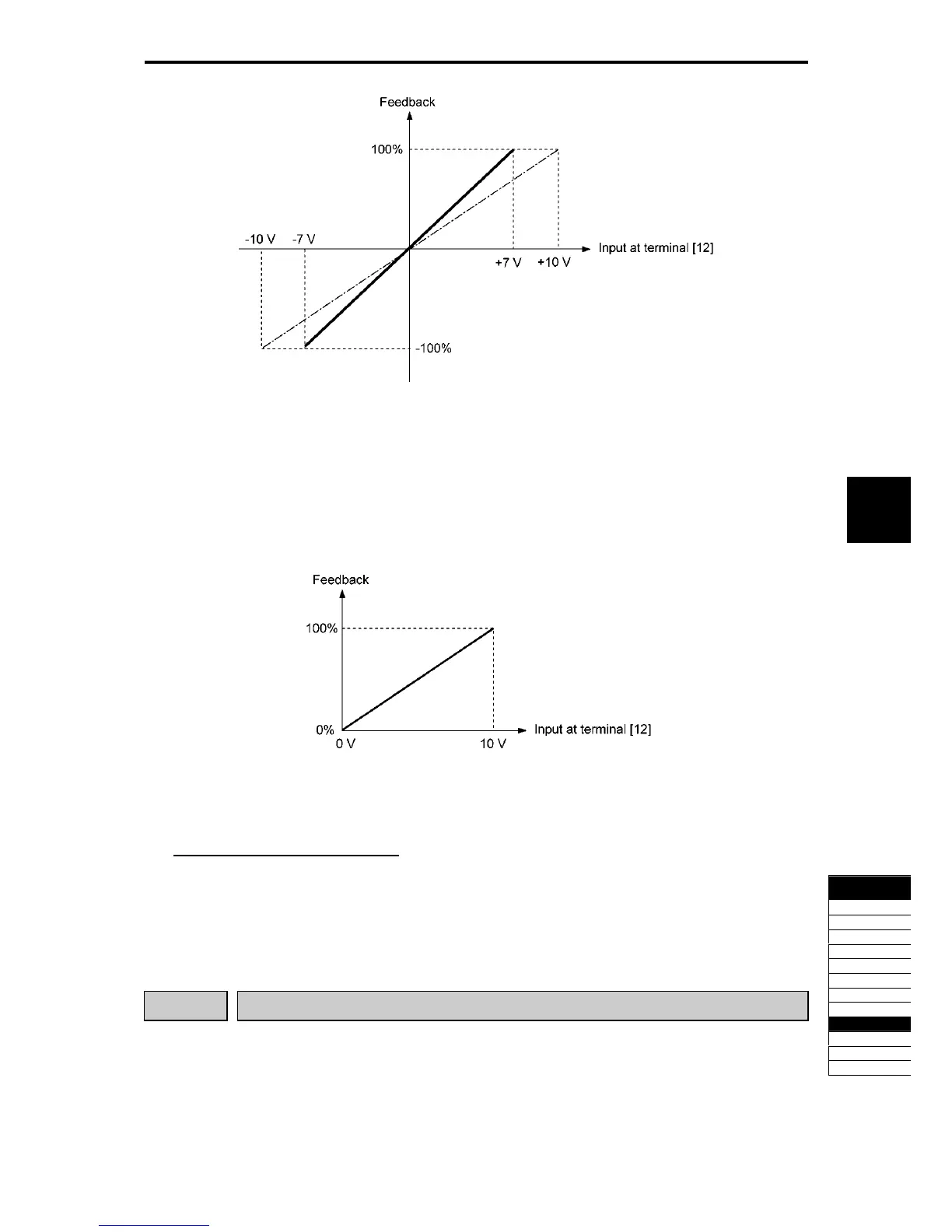

Fig. 5.4-97
(Example 2) When the output level of the external sensor is 0 to 10 VDC
- Use terminal [12] designed for voltage input.
- When the external sensor's output is of unipolar, the inverter controls the speed within the range of 0 to
100%.
Fig. 5.4-98
In this example, it is recommended that the dancer base position be set around the 5 V (50%).
PID Display Coefficient and Monitoring
To monitor the PID command and its feedback value, set the display coefficient to convert the values into
easy-to-understand physical quantities (such as temperature).
See function codes E40 and E41 for details on display coefficients, and to E43 for details on
monitoring.
J03 to J06
PID Control P (Gain), I (Integral time), D (Differential time), Feedback filter
P gain (J03)
P gain sets the PID controller.
- Data setting range: 0.000 to 30.000 (multiplication)
To Next Page
