5.4 Details of Function Codes
5-258
Customizable logic configuration samples

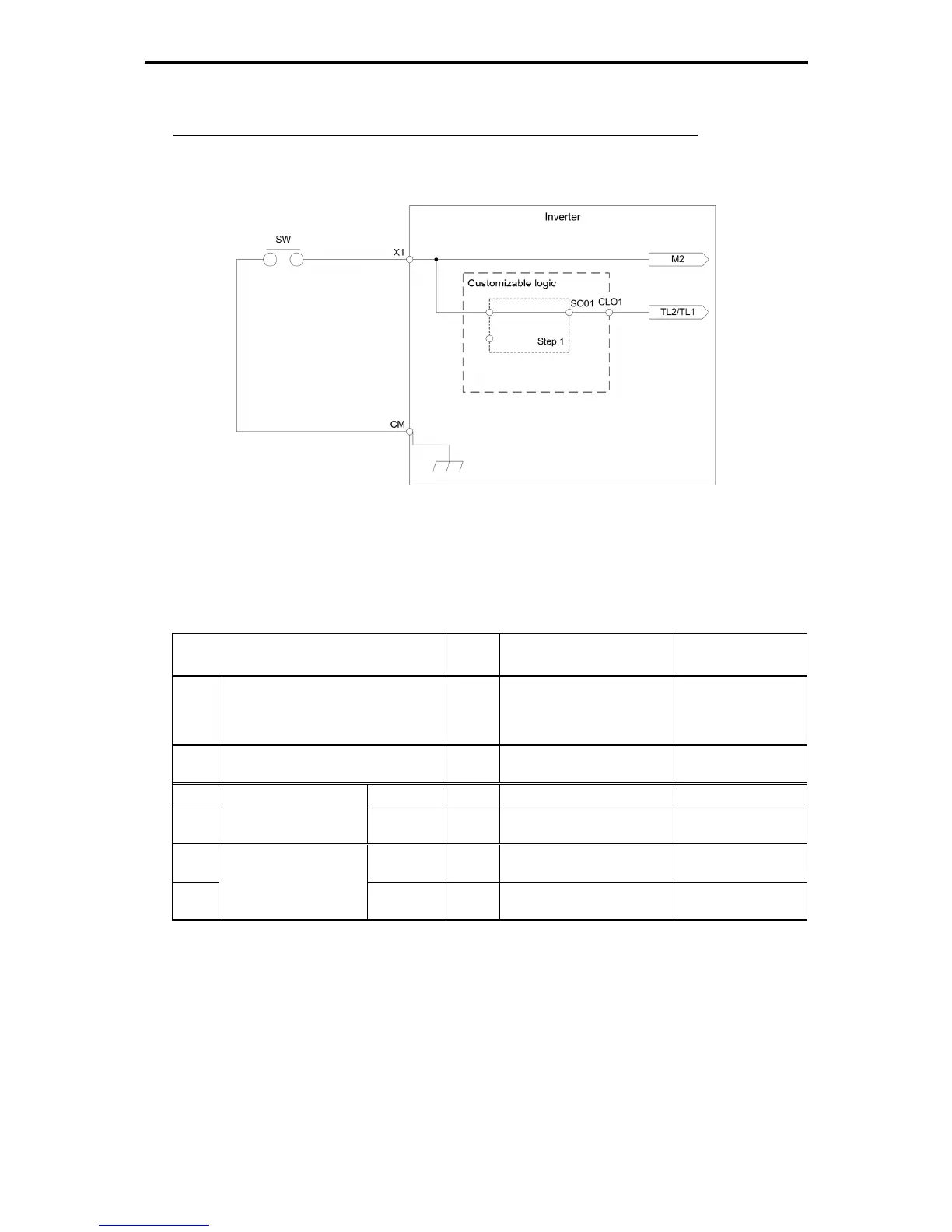

Configuration sample 1: Switching two or more signals by operating a single switch
When the motor 2/1 and the torque limit 2/torque limit 1 are simultaneously switched by using one switch,
using general-purpose input terminal can be reduced to one by replacing the external circuit, which was
conventionally needed, to the customizable logic.
Fig. 5.4-129
To configure the above customizable logic, set function codes as follows. (Timer selection) and (Time
setting) require no modification unless otherwise specified.
Table 5.4-188
Function Code Setting
Data
Setting Contents Remarks
E01 Terminal X1 (Function selection) 12 Select motor 2 M2 Parallel use is
possible also as
general-purpose
input terminal.
U00 Customizable Logic (Operation
selection)
1 Enable
U01 (Input 1) 4001 X1 terminal input signal X1
U03
Customizable Logic:
Step 1
(Logic
circuit)
1 Through output +
General-purpose timer
Operation selection
U71 (Output
selection)
1 Output of step 1 SO01
U81
Customizable Logic
Output Signal 1
(Function
selection)
14 Torque limit 2/Torque limit 1
TL2/TL1
To Next Page
