11.4 Option
11-88

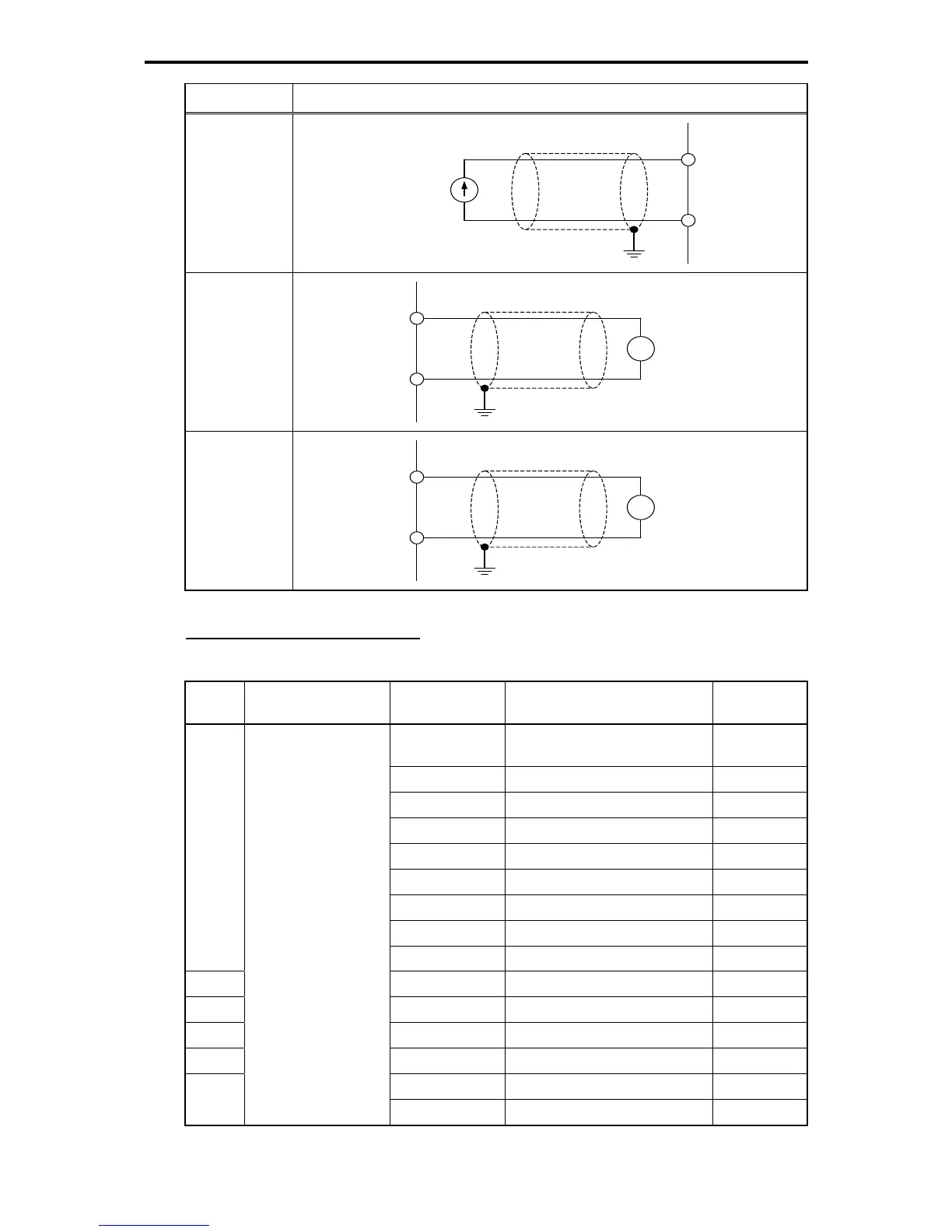

Terminal Signal Connection method
[C2]
Shielded wire
[C2]
Constant
current source
4 to 20 mA
[31]
[Ao]
Shielded wire
[Ao+]
[Ao-]
V
[CS]
Shielded wire
[CS+]
[CS-]
A
Configuring inverter's function codes
Table 11.4-61 Function Codes and Their Parameters for Terminal [32]
Function
Code
Function code
description
Data Description Remarks
o60 Terminal [32]
(Function selection)
0 No assignment
1 Auxiliary frequency command 1
2 Auxiliary frequency command 2
3 PID command
5 PID feedback value
6 Ratio setting
7 Analog torque limit value A
8 Analog torque limit value B
20 Analog input monitor
o61 (Offset adjustment) -5.0 to +5.0% Offset adjustment amount
o62 (Gain adjustment) 0.00 to 200.00% Gain adjustment amount
o63 (Filter setting) 0.00 to 5.00 s Filter constant
o64 (Gain base point) 0.00 to 100.00% Gain base point
o65 (Polarity selection) 0 Bipolar
1 Unipolar
