2.2 Wiring
2-28
[FMP] Pulse monitor
(FMP function)
Pulse
signal is output. You can also select one of the signal
functions listed in the above column for [FMA] using function
code F35.
* Input impedance of the external device: Min. 5
kΩ
(While the terminal is outputting 0 to 10 VDC, it is capable of
driving up to two analog voltmeters with 10
kΩ impedance.)
* Pulse duty: Approx. 50%
Pulse rate: 25 to 6000 p/s (at full scale)
(Voltage waveform)

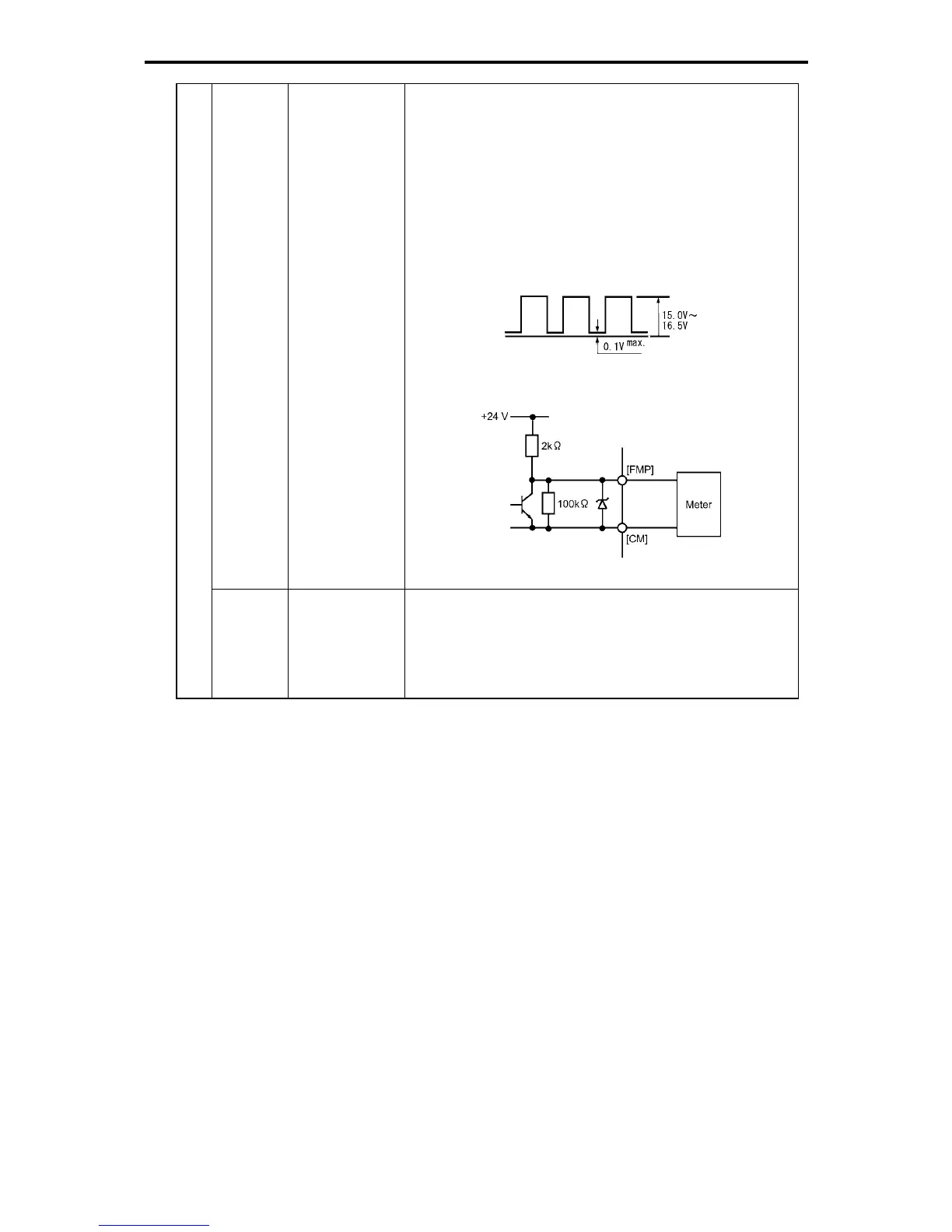

• Pulse output waveform
Figure 2.2-23
• FMP output circuit
Figure 2.2-24
Pulse output
[CM] Digital common
Two common terminals for digital input and [FMP] output
signals.
These terminals are electrically isolated from the terminals [11]s
and [CMY].
These are the shared terminals with the digital input terminal
[CM]s.
*3 Available in inverters having a ROM version 3000 or later.
*4 Available in inverters having a ROM version 3600 or later.
