Machine Components
39
Product Overview
2
8 Tray 1, 2, 3, 4
Load paper here.
9Locking casters
Lock these casters after moving the machine to its installation site.
10 Tray 6 (HCF B1) (optional)
Load paper here.
11 Tray 6 top cover
Open this cover to clear paper jams after moving Tray 6 to the left.
12 Tray 5 (bypass tray)
Used for loading non-standard paper, such as thick-stock paper and other special media,
that cannot be loaded in Trays 1 to 4, and 6.
13 Smart WelcomEyes (SWE) pyroelectric sensor
The SWE pyroelectric sensor works consistently, and when it detects human presence in the
detectable area, the SWE reflection sensor starts working.
14 Smart WelcomEyes (SWE) reflection sensor
When the SWE pyroelectric sensor detects human presence, the SWE reflection sensor
starts working, and when it also detects human presence, the machine exits the Power
Saver mode.
While the SWE reflection sensor detects human presence, the machine will neither reset the
settings automatically nor enter the Power Saver mode.
15 Smart WelcomEyes (SWE) Access Lamp
The Access Lamp lights up while the SWE reflection sensor detects human presence.
16 Side tray
Copies and prints are delivered here, facing up.

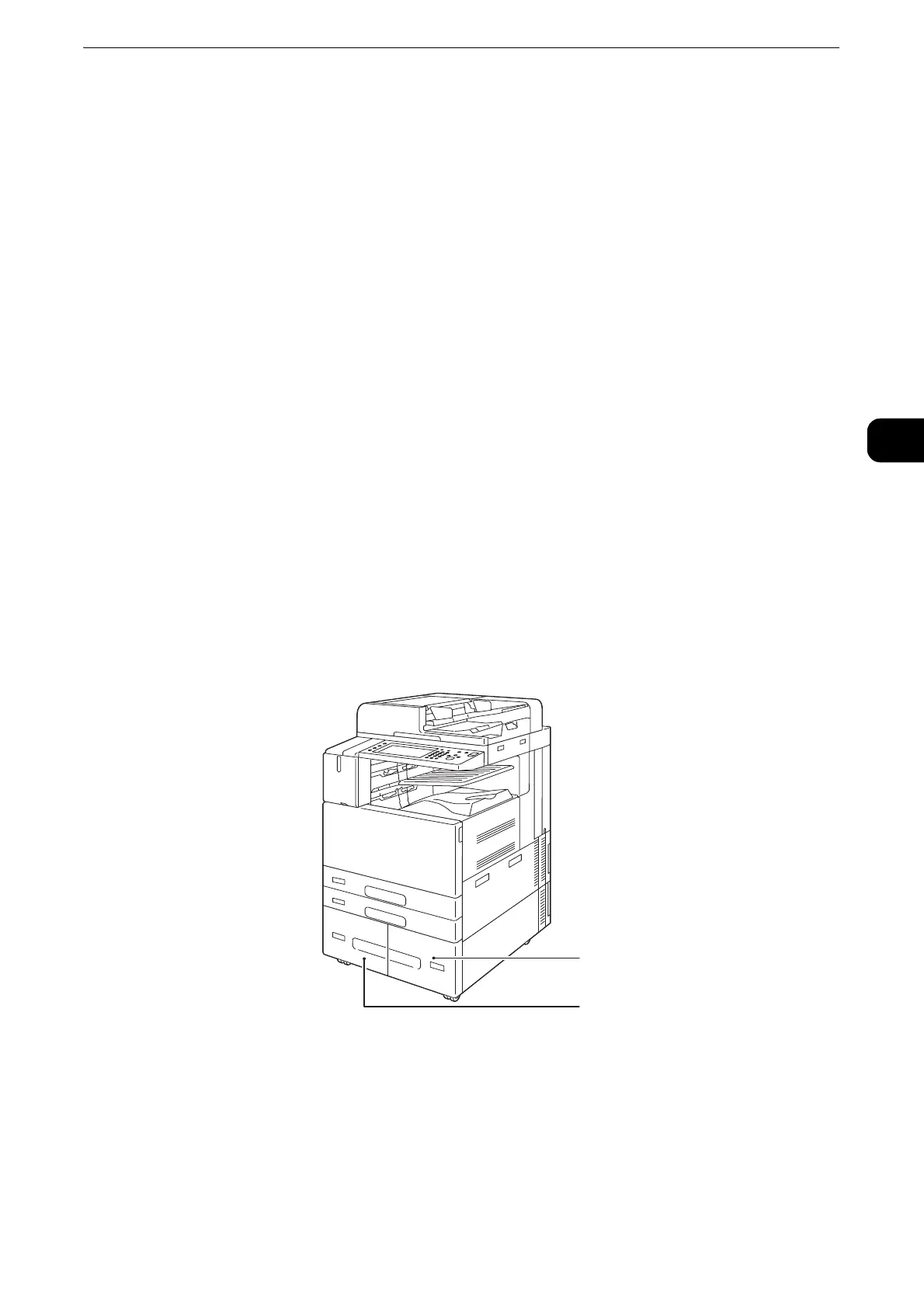

îš„ Tandem Tray Module Model
1Tray 4
Load paper here.
2Tray 3
Load paper here.
