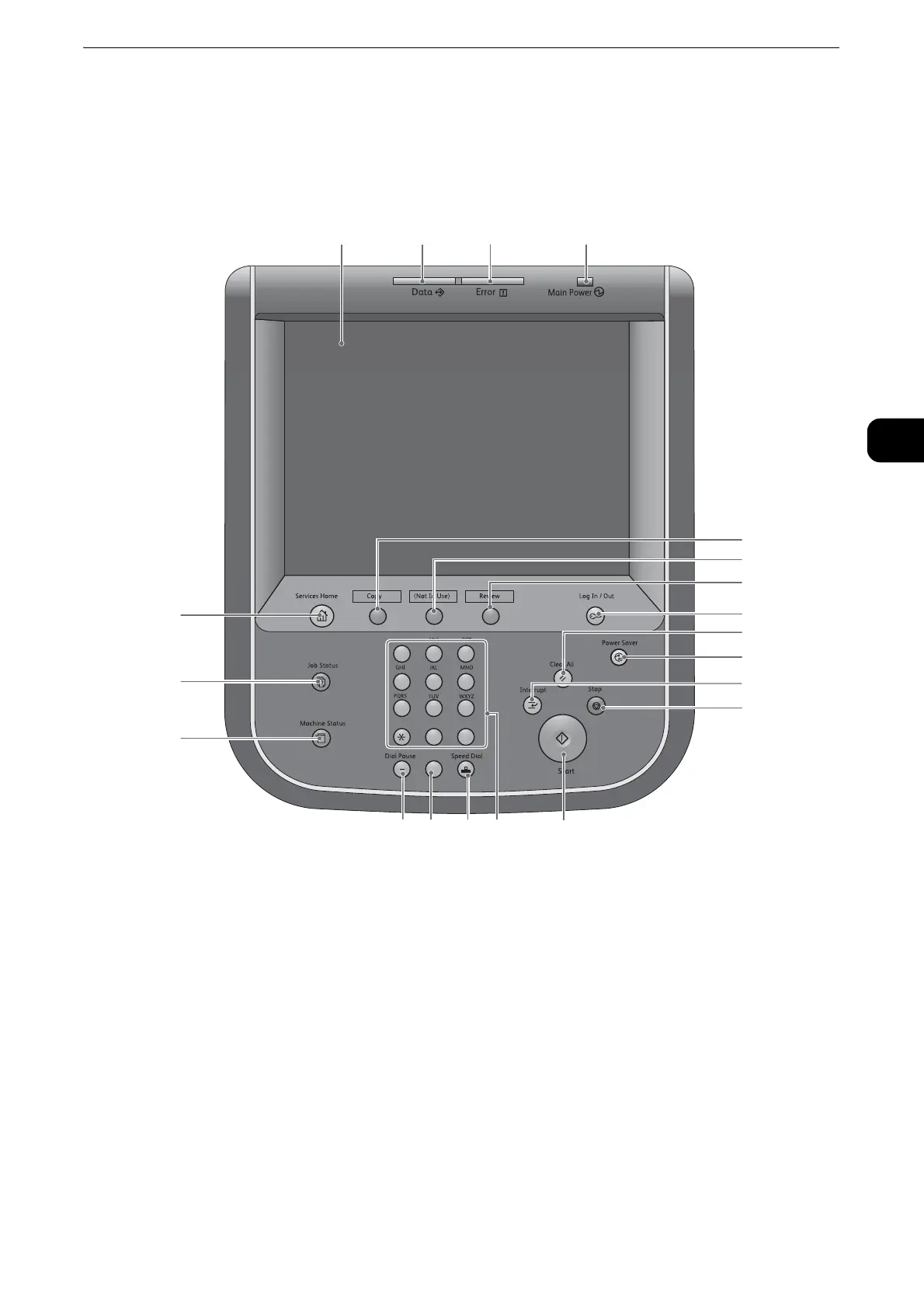

Large Size Color UI
The following describes the names and functions on the Large Size Color UI.
z
The Large Size Color UI does not have a one-touch panel and does not support specifying recipients with one-
touch buttons.
1Touch screen
Displays messages required for operation and buttons for various features. You can directly
touch the touch screen to instruct operations and set features.
2 <Data> indicator
Blinks when the machine is sending or receiving data.
This indicator lights up when data is stored in the machine's memory, when received faxes
are waiting to be printed, or when faxes are stored in a folder.
z
You can check stored scan files in a Folder List. For information on the Folder List, refer to "Machine Status" > "Machine
Information" > "Print Reports" > "Folder List" in the Administrator Guide.
z
You can check stored fax files in a Stored File List. For information on the Stored File List, refer to "Machine
Status" > "Machine Information" > "Print Reports" > "Job Status/Activity Report" > "Stored File List" in the
Administrator Guide.
z
You can change the lighting pattern of the <Data> indicator. For more information, refer to "Tools" >
"Common Service Settings" > "Other Settings" > "Data Indicator" in the Administrator Guide.
123
456
789
0
＃
C
123 4
20
18
19
14
5
6
7
8
9
10
11
12
131617 15
