3.5 Using the System Settings Menus
Network Scanner fi-6000NS Operator's Guide 69
Administrator Operations
3
■ Length Magnification Setting
If the scanned output is found to be vertically distorted (stretched or squashed) relative to the actual
documents being scanned, the length magnification can be adjusted.

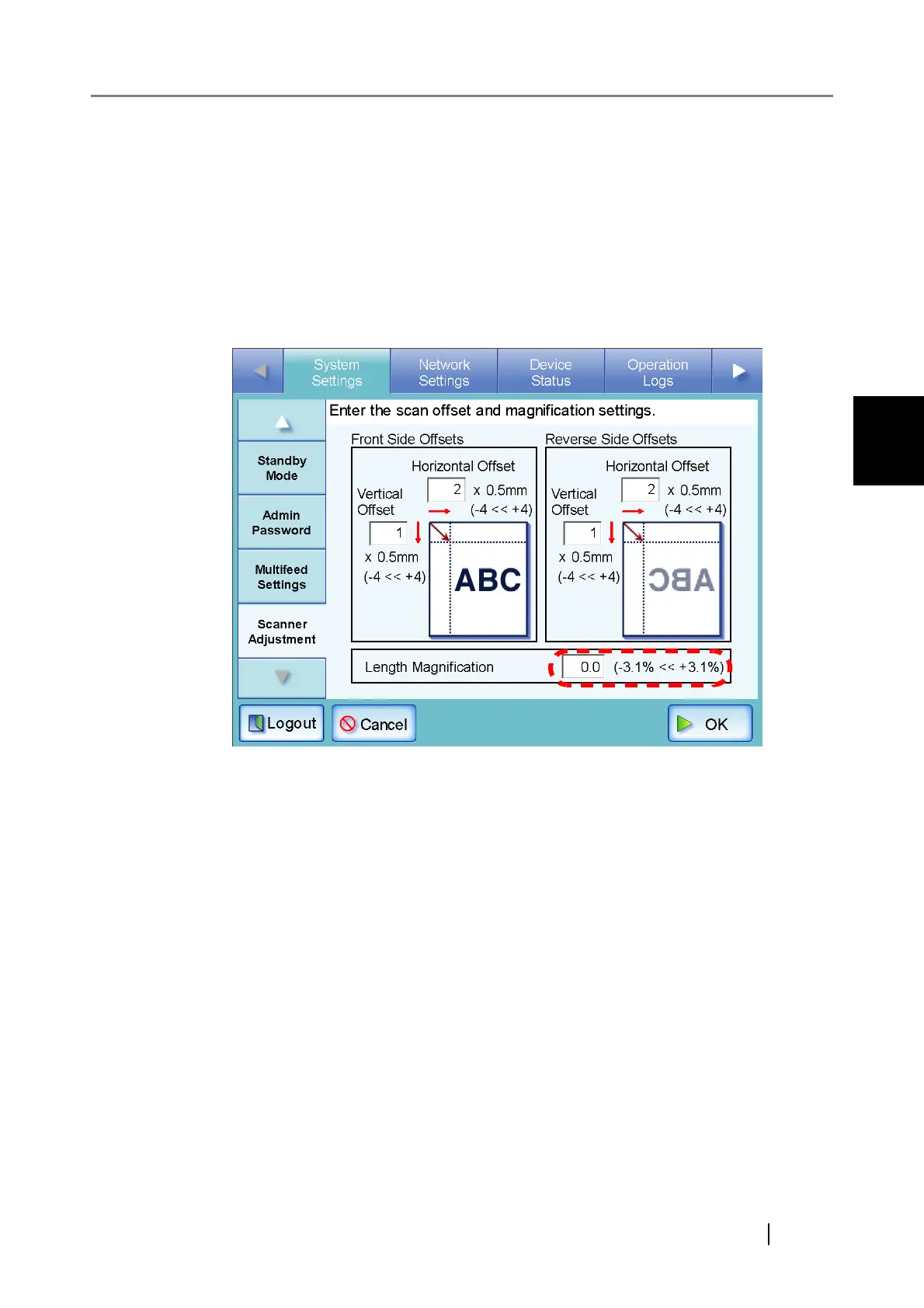

1. On the "Scanner Adjustment" screen, enter the value for the "Length Magnification"
input field.
This changes the length magnification correction value of the vertical scan. Using the fac-
tory default setting as a starting point, the length of the scan can be magnified or reduced to
between -3.1% and 3.1%.
2. Press the [OK] button.
⇒ The length magnification setting is set.

Fujitsu FI-6000NS Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Display	TFT
Scanner type	Flatbed & ADF scanner
Product color	Gray
Display diagonal	8.4 \
Display resolution	1024 x 768 pixels
Scan to	E-mail, Image
Sensor type	CCD
Scan file formats	JPG, PDF, TIFF
Scanning noise level	59 dB
Daily duty cycle (max)	- pages
Auto document feeder (ADF) input capacity	50 sheets
Minimum scan area (ADF)	53 x 74 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 127 g/m²
Standard interfaces	Ethernet, SCSI-3
Server operating systems supported	Windows 2000 Server, Windows Server 2003
Input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	10 W
Power consumption (typical)	88 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS
Cabling technology	10/100BASE-T(X)
Dimensions (WxDxH)	315 x 415 x 281 mm
Networking features	Fast Ethernet
Supported network protocols	TCP/IP, DHCP, SMTP, SMB, LDAP, NTP

Weight and Dimensions

Depth	415 mm
Width	315 mm
Height	281 mm
Weight	13000 g
