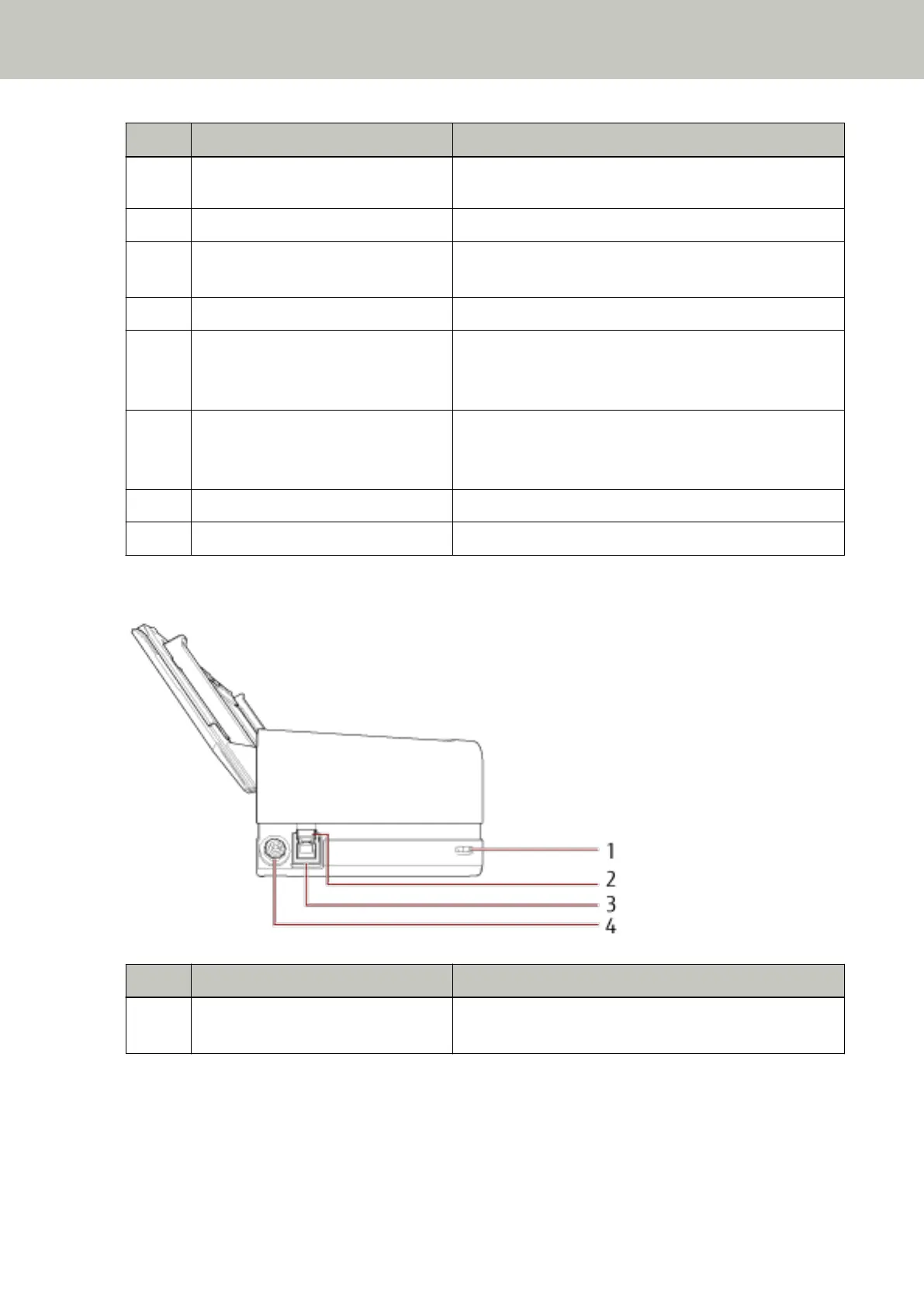

No. Name Function
This is automatically opened and closed when a scan is
performed.
6 ADF release tab Pull this tab to open the ADF.
7 LED indicator Indicates the status of the scanner.
For details, refer to About the LED Indicator (page 23).
8 [Power] button Turns on or off the scanner.
9 [Scan/Stop] button Launches the linked application software.
Clears the displayed error indication.
You can cancel a scan in the middle of a scan.
10 Operator panel Consists of the [Power] button, the [Scan/Stop] button,
and an LED indicator.
It can be used to operate the scanner or check its status.
11 Return path opening An opening for inserting a document to be scanned.
12 Document support tab Supports the documents ejected onto the stacker.
● Left Side
No. Name Function
1 Security cable slot Used to connect an anti-theft security cable (commercially
available).
Scanner Overview
18
