AT600 User’s Manual 11
Chapter 2. Installation
2.4.2b Dual Traverse Installation at Transducer Spacing Range 250 to 750mm (cont.)
4. Set spacing between the two transducers and tighten back onto the pipe.
a. Loosen hand rails and rotate fixture so transducers are in view.
b. Take out the downstream transducer from the first fixture, disassemble the transducer connection and route the
cable into the second fixture and connect and locate the downstream transducer into the second fixture.

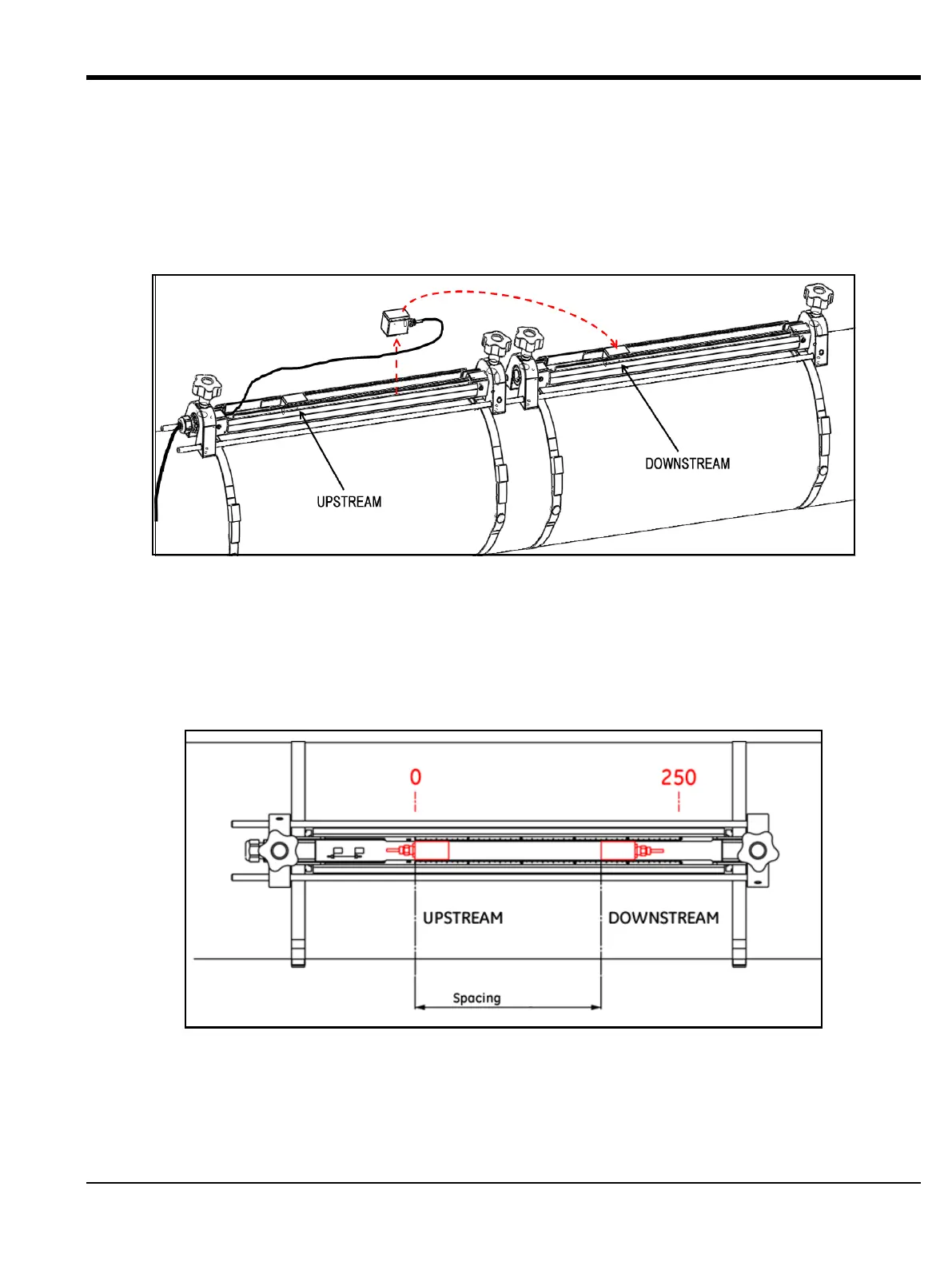

Figure 14: Dual Traverse Installation at Transducer Spacing Range 250 to 750mm
Note: See detailed spacing set below for dual traverse installation:
1. Spacing range from 0 to 250mm; only one fixture is needed.
Put the upstream transducer at "zero" position, and then put the downstream transducer at the required position
on the same fixture.
Figure 15: Transducer Spacing between the Two Fixtures
To Next Page
