Chapter 2. Installation
12 AT600 User’s Manual
2.4.2b Dual Traverse Installation at Transducer Spacing Range 250 to 750mm (cont.)
2. Spacing range from 250 to 750mm; two fixtures are needed, to be pushed:
a. Spacing from 250 to 500mm
Put the upstream transducer at "250mm" position of the first fixture, and then put the downstream transducer at
the required position on the second fixture, as shown below.
Note: A tight contact should be made between two fixtures through the two bars to make an accurate spacing.

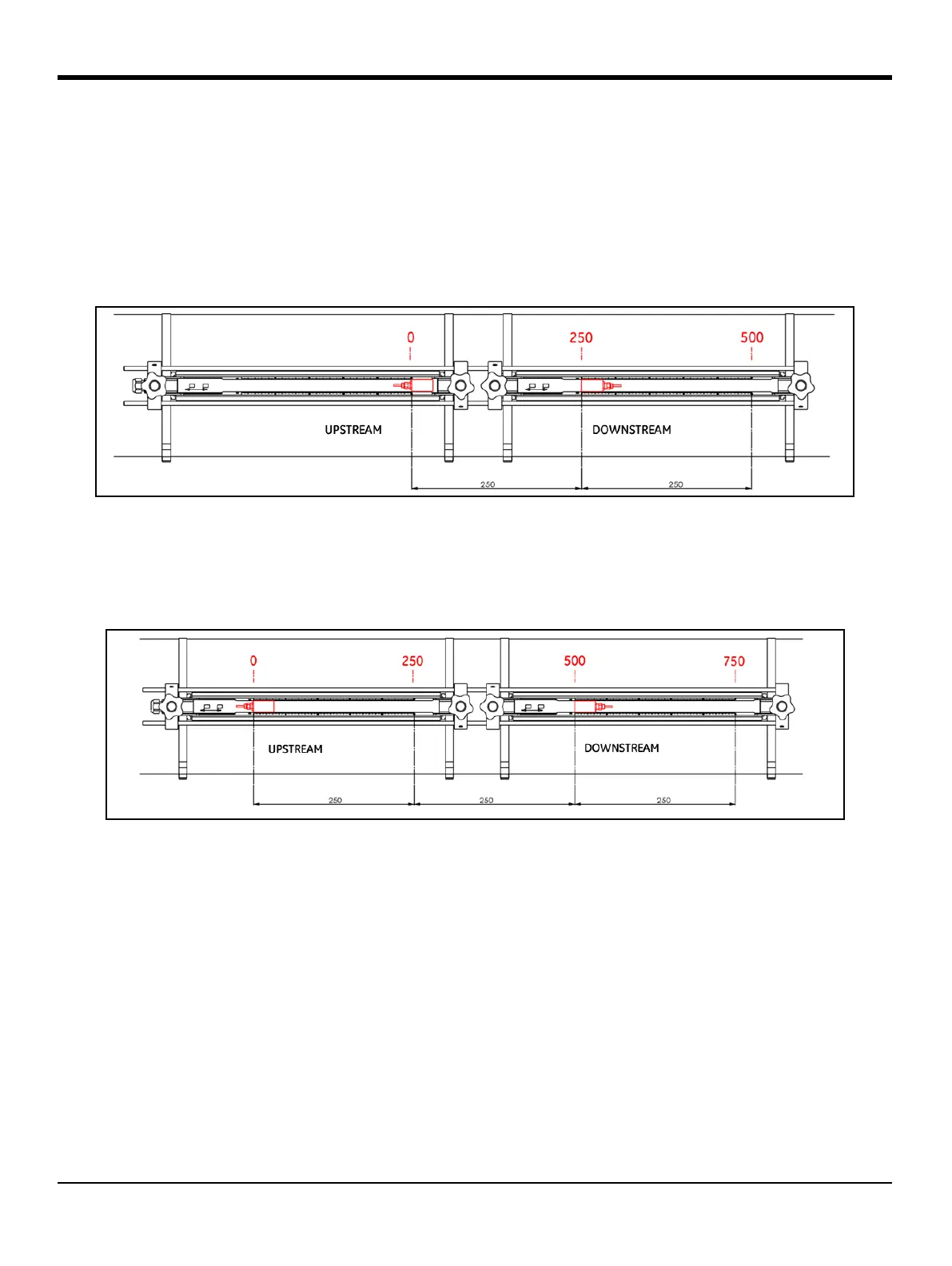

Figure 16: Spacing Range from 250 to 500mm
b. Spacing from 500 to 750mm
Put the upstream transducer at "zero" position of the first fixture, and then put the downstream transducer at the
required position on the second fixture, as shown below.
Figure 17: Spacing Range from 500 to 750mm
