5.5.4 Elevating Base
Refer to “Figure 5-7 Bed Disassembly”, “Figure 5-8 Elevating Base with Two-piece Shroud Assembly”, and
“Figure 5-9 Elevating Base with Three-piece Shroud Assembly”.

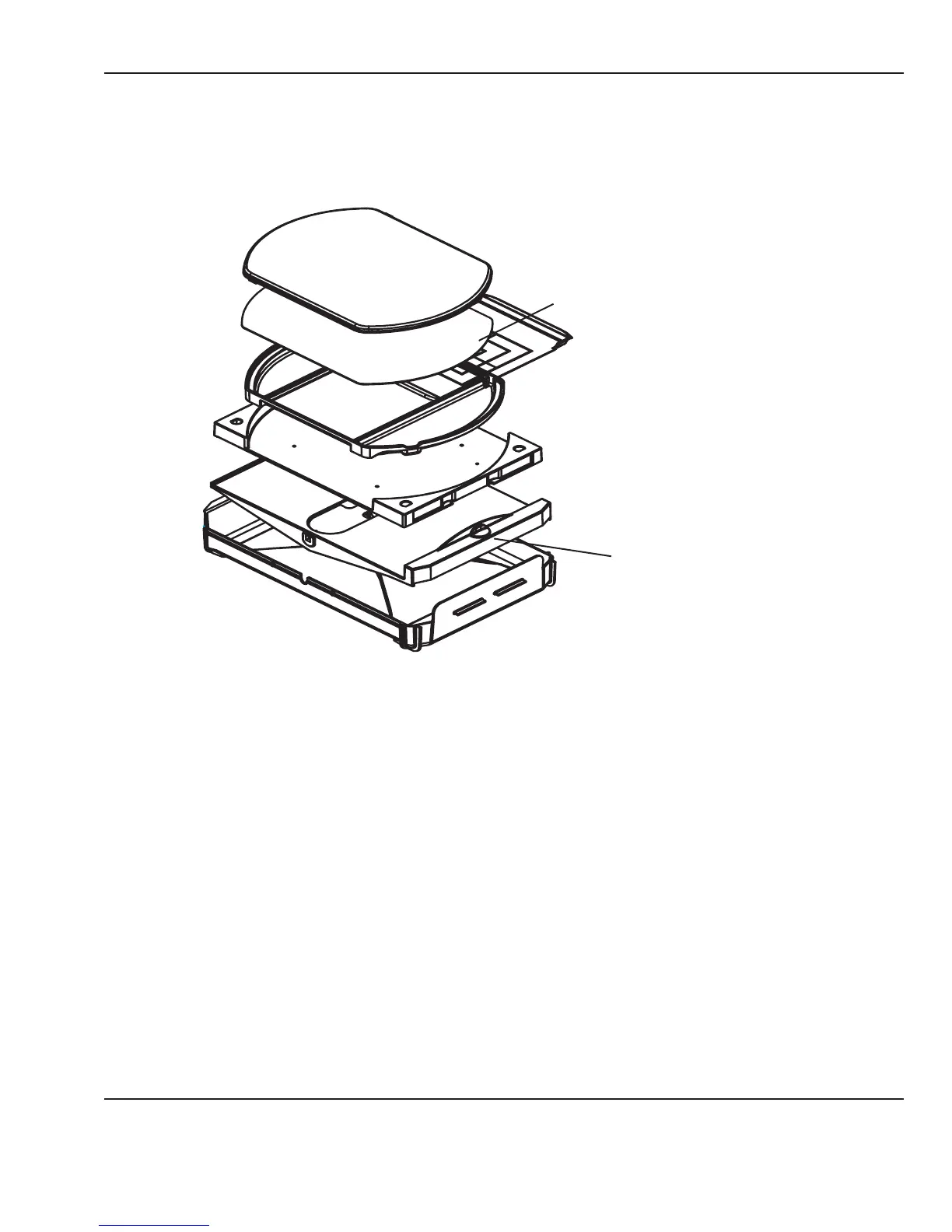

Mattress
Clear Plate
X-ray tray
Rotating bed
Translation deck
Tilt platform
Pan
Tilt release
Figure 5-7 Bed Disassembly
1. Run the elevating base to its top travel limit then switch o and unplug the unit.
2. Remove the mattress, bed, translation deck, tilt platform, and pan.
3. Remove the chassis cover. (Refer to section 5.5.1.)
4. Disconnect the elevating base electrical connector at J-45 on the relay board, and tie a wire to it so you can
sh it back through during reassembly.
5. Connect the replacement elevating base to the relay board, switch the unit back on and using the foot
pedals fully extend the new base. Switch o and unplug the unit.
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0356-000 103 75
Chapter 5: Repair Procedures
