GE Giraffe Service Manual

1. Screw, M4 Skt Hd ...............................................................6600-0706-409
2. Split ring washer, M4 ........................................................6600-0713-403
3. Flat washer, M4...................................................................6600-0712-403
4. Expansion chamber cover ............................................6600-1878-500
5. Cover gasket ........................................................................6600-1883-500
6. Elbow tting .........................................................................6600-0873-400
7. Expansion chamber assembly
(includes items 1-6) ...........................................................6600-0256-850
8. Vent ..........................................................................................6600-1881-500
9. Washer (thick)......................................................................6600-1219-400
Parts not shown
P-clamp (under Pleur-evac holder) .....................................0690-1240-331
Washer, M6 (under Pleur-evac holder)..............................6600-0712-405
Expansion chamber inlet gasket .........................................6600-1884-500
1
2
3
4
5
6
7
8
9
9

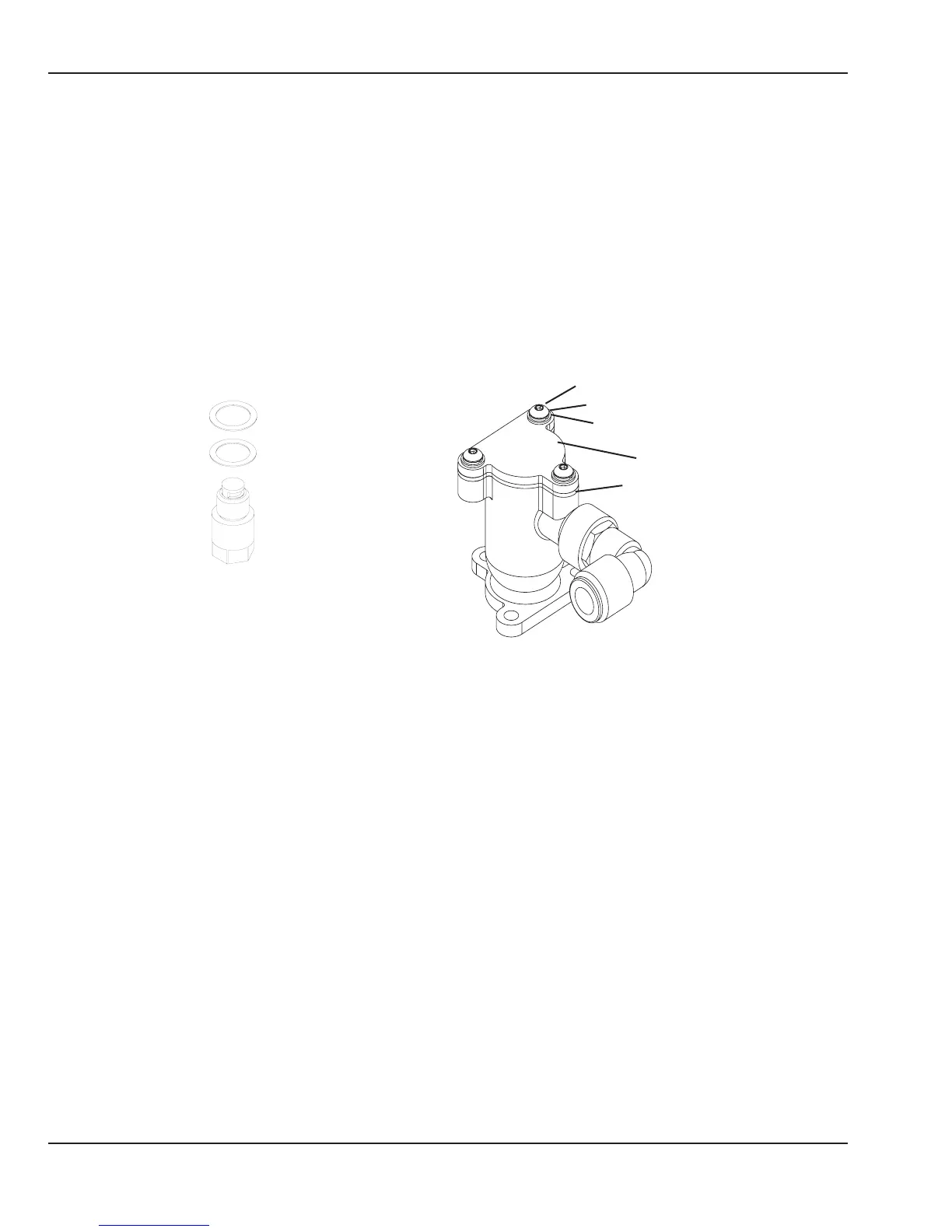

Figure 6-18 Expansion Chamber/Heatsink Vent
134 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
