GE Giraffe - Figure 6-28 Dovetail Mount DIN Rail (6600-0659-803)

1. Mounting bracket housing ............................................6600-1541-500
2. Mounting bracket lock ....................................................6600-1542-500
3. Screw, M4 x12 .....................................................................6600-0853-400
4. DIN rail ....................................................................................6600-1540-501
5. Spacer ....................................................................................6600-1538-500
6. Screw, M8 x 35 Skt Hd .....................................................6600-0852-400

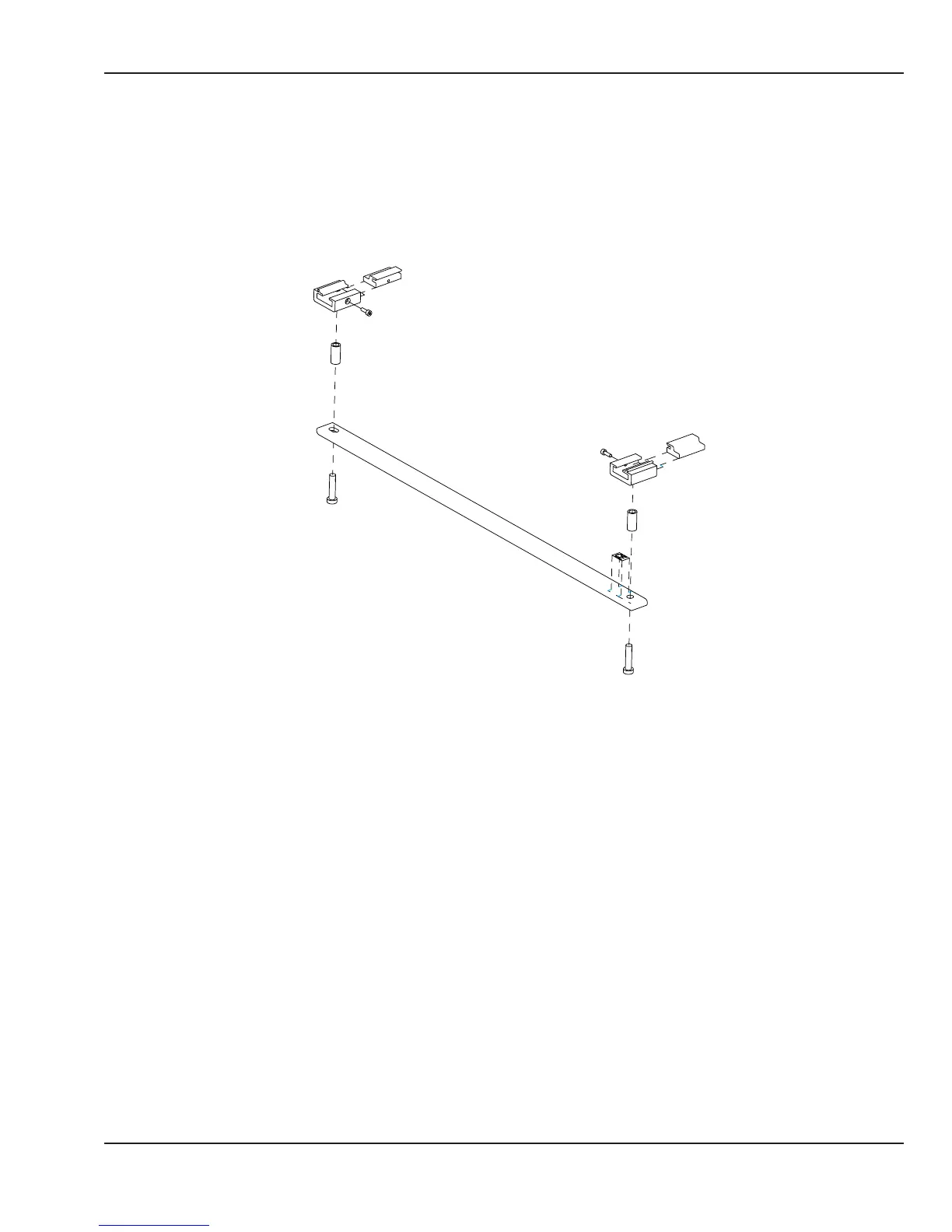

Figure 6-28 Dovetail Mount DIN Rail (6600-0659-803)
1
2
3
4
5
6
