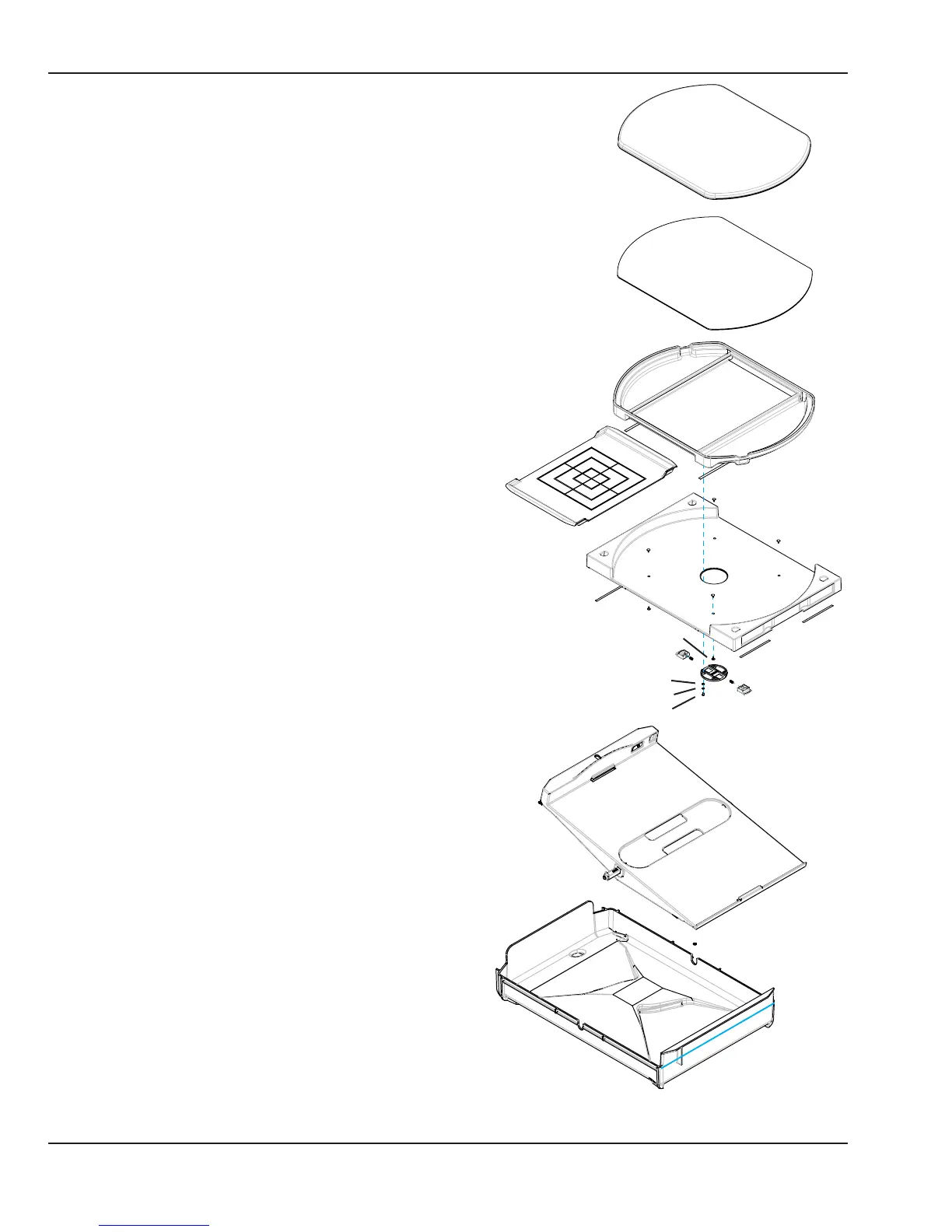

6.1.2 Bed and Side Doors
1. Girae pressure-diusing mattress (blue) .............6600-0689-800
Mattress (white) ..................................................................6600-1116-500
2. Plate .........................................................................................6600-1365-500
3. Mattress Tray Support ....................................................6600-1353-500
4. Translation Deck ................................................................6600-1352-500
5. Tape (5.4 in.) .........................................................................6600-1758-502
6. Latch Cover ..........................................................................6600-1364-500
7. Locking Latch ......................................................................6600-1363-500
8. Spring ......................................................................................6600-1079-400
9. Screw M4* .............................................................................6600-0706-409
10. Washer, M4 split ring* .....................................................6600-0713-403
11. Washer, M4 at*.................................................................6600-0712-403
12. Tape (19.3 in.) .......................................................................6600-1758-501
13. X-ray Tray ............................................................................6600-1334-500
14. Tilt Ball and Screw Assembly .......................................6600-0814-700
15. Cover .......................................................................................6600-1329-500
16. Top Plate ................................................................................6600-1328-500
17. Nut ............................................................................................6600-1330-500
18. Plate .........................................................................................6600-1457-500
19. Stop ..........................................................................................6600-1366-500
20. O-ring ......................................................................................6600-1080-400
21. Tilt platform* ........................................................................6600-1313-500
22. Washer* .................................................................................0202-4520-340
23. Spring* ....................................................................................6600-1009-400
24. Brake bracket* ....................................................................6600-1225-500
25. Brake pad assembly* ......................................................6600-0853-700
26. Knob* ......................................................................................6600-1158-500
27. Cover* .....................................................................................6600-1327-500
28. Slide* .......................................................................................6600-1227-500
29. Spring* ....................................................................................6600-1083-400
30. Ball bearing* ........................................................................6600-1228-500
31. Pin*@ .......................................................................................6600-2023-500
32. Pin retaining clip*@ ..........................................................6600-0240-400
33. Plunger* .................................................................................6600-1325-500
34. Spring* ....................................................................................6600-1043-400
35. Pan ...........................................................................................6600-0801-700
36. Screw, M4 ..............................................................................6600-0706-407
37. Rivet, small ...........................................................................6600-1078-400
38. Rivet, large ............................................................................6600-1203-400
39. Washer, brake* ...................................................................6600-1335-500
Parts not shown
Tilt platform assembly (includes all items with *) ........6600-0771-700
@New pin and retaining clip replaces earlier roll pin and ts platform without
modifying the hole.
21
35
1
2
3
4
5
6
7
8
9
10
11
12
13
37
37
108 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
