5.3 Uprights and End Caps
Refer to “Figure 5-2 Uprights and End Caps”.
Decorative strip
Upright
Bottom end cap
Top end cap
Ground wire
Upright
Bracket casting
Mounting studs

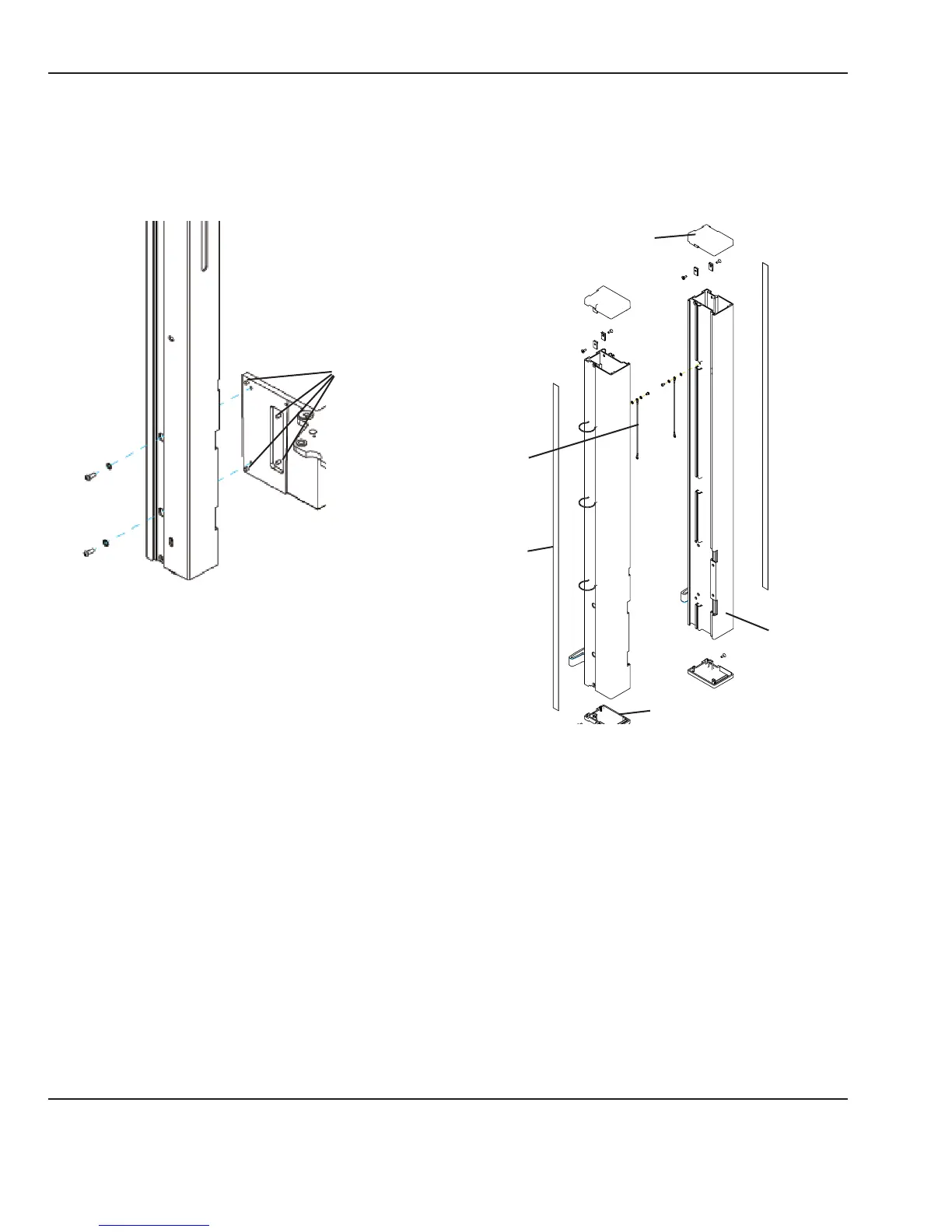

Figure 5-2 Uprights and End Caps
1. Slide the decorative strip up about 1/2” in the groove on the outside of the upright to access hardware that
secures the lower end cap. You may wish to use a piece of tape to grip the strip. Use a 2.5 mm hex key to
remove the screw, then remove the bottom cap. Slide the decorative strip down to access the two screws
that secure the upper end cap, then remove the top end cap.
2. Using a 2mm hex key, remove the 4 button head socket screws and split ring washers that secure the back
cover to the display module and remove the cover.
3. Remove the 2 screws that secure the hood latch receptacle to the upright and remove the receptacle.
4. Using a 2mm hex key, remove the screw that secures the wire cover to the side of the upright.
5. To remove the wire cover, slide the wire cover up about ½”, and then pull it straight back by grasping its
back edge.
68 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 5: Repair Procedures
