5. To remove the EL display, disconnect the electrical connectors, then remove the 2 nuts that hold the display
in place. Be careful not to get nger prints on the display and be sure it is clean before replacing it.
6. The standos that hold the back cover also secure the bezel to the front of the module housing. Remove
the standos (6mm wrench) and remove the bezel. To replace the membrane switch panel, rst disconnect
its electrical connector and then peel it o the display module housing. Be careful to remove all residue
adhesive from the module before installing a new membrane panel. The membrane panel cannot be
repositioned once it has been applied without damaging it.
5.8.2 Probe Panel

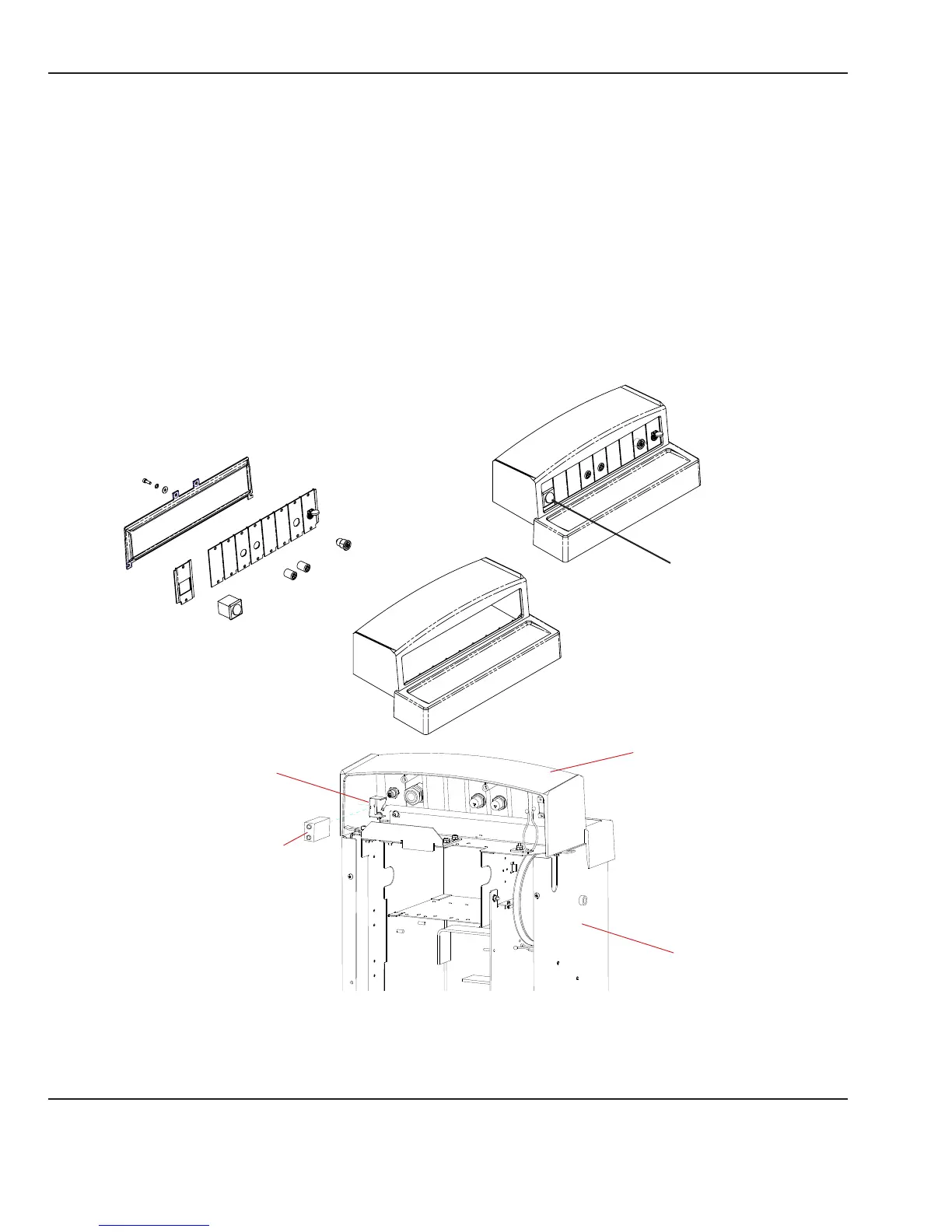

Refer to “Figure 5-13 Probe Panel” and “Figure 6-1 Probe Panel Assembly”.
Power switch
Battery holder
Battery
Probe panel housing
Electrical enclosure
Figure 5-13 Probe Panel
88 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 5: Repair Procedures
