GE Giraffe Service Manual

5.9.2 Replacing the Vent Screen
1. Remove rotating mattress tray, tilt platform and upper pan.
2. Remove the vent cover by turning it counter clockwise.
3. Remove and discard the ring shaped vent lter screen from the chassis vent.
4. Install a new vent screen and reinstall the vent cover.
5. Perform the Pre-use Checkout.
5.9.3 Sensor Housing Repairs

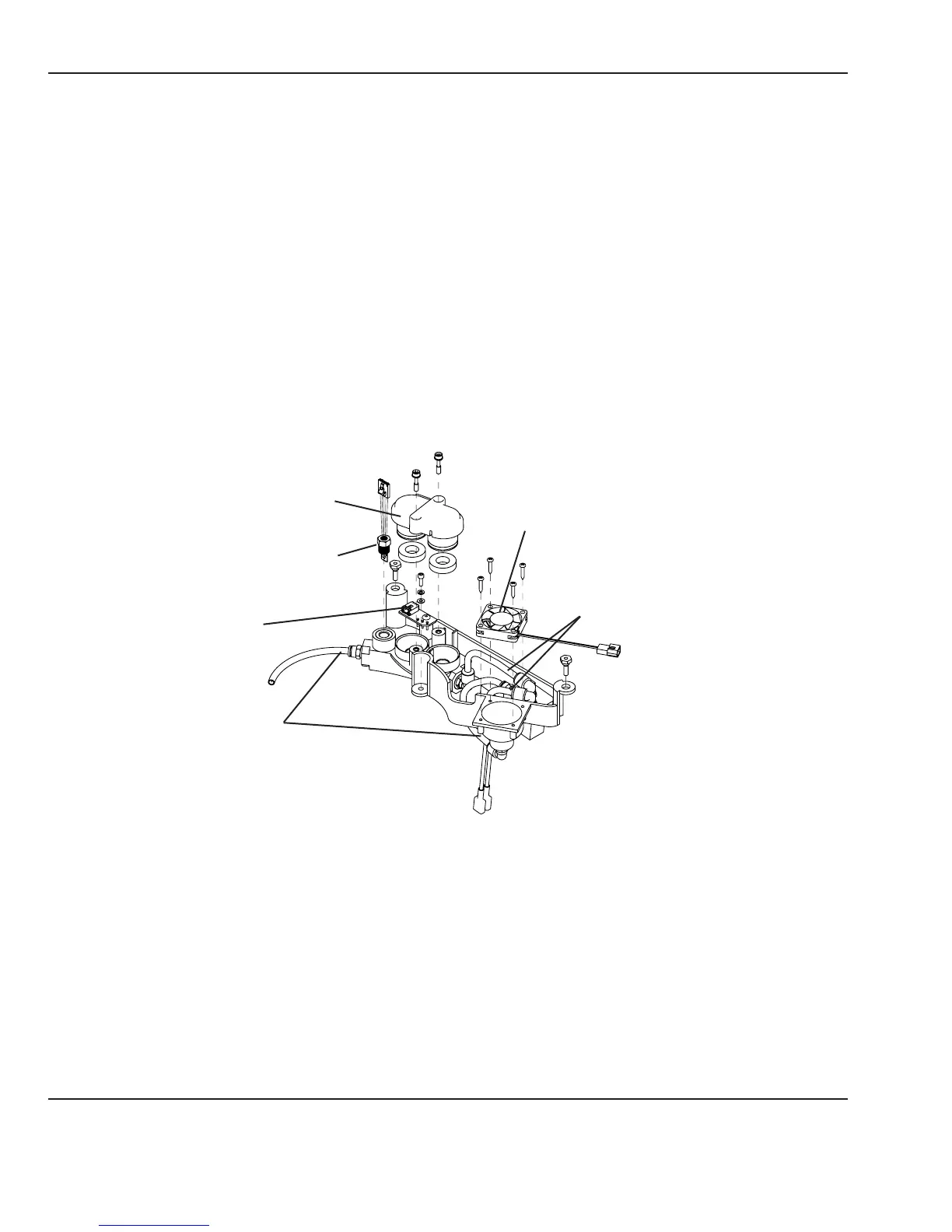

Refer to “Figure 5-16 Sensor Housing”.
Sensor housing cover
Sensor plug assembly
Calibration fan
PC board
White hoses
Black hoses
Figure 5-16 Sensor Housing
5.9.3.1 Sensor Housing Boards, Calibration Fan Assembly, and Sensor Plug Assembly
1. Slide the drawer to one side and using a 3mm hex key, loosen the captive screws in the chassis cover
sensor housing door and swing the door down to access the sensor housing.
2. Using a 3mm hex key, loosen the two M4 socket head screws that secure the sensor housing cover, and
remove the cover.
3. To replace the half of the PC board inside the sensor housing cover, use 2.5 mm hex key to remove the 2 M4
button head screws that secure it to the cover.
94 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 5: Repair Procedures

GE Giraffe Specifications

General

Manufacturer	GE Healthcare
Type	Incubator
Humidity Range	30% to 95% RH
Power Supply	50/60 Hz
Model	Giraffe
Features	integrated scale
Control Modes	Air and Skin
