GE Giraffe - Figure 6-31 Dovetail Extension (6600-0852-800)

1. Dovetail rail ..........................................................................6600-1946-500
2. Bottom end cap .................................................................6600-0366-500
3. Screw, 4-40 x 1/2, Skt. Hd. .............................................0144-2117-208
4. Top end cap .........................................................................6600-1239-400
5. Swing arm assembly........................................................6600-1516-700
6. Knob ........................................................................................M1081553
7. Teon washer ......................................................................6600-1238-400
8. Knob, block ...........................................................................0217-5335-300
9. Washer ...................................................................................0202-0095-300
10. Bushing ..................................................................................6700-0030-400
11. Lock washer, int. tooth ....................................................0202-3418-300
12. Screw, 5/16 - 18 Skt. Hd. ................................................6600-0787-400
13. Label ........................................................................................6600-2497-102
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10
10
10
11
11
12
12
13
13

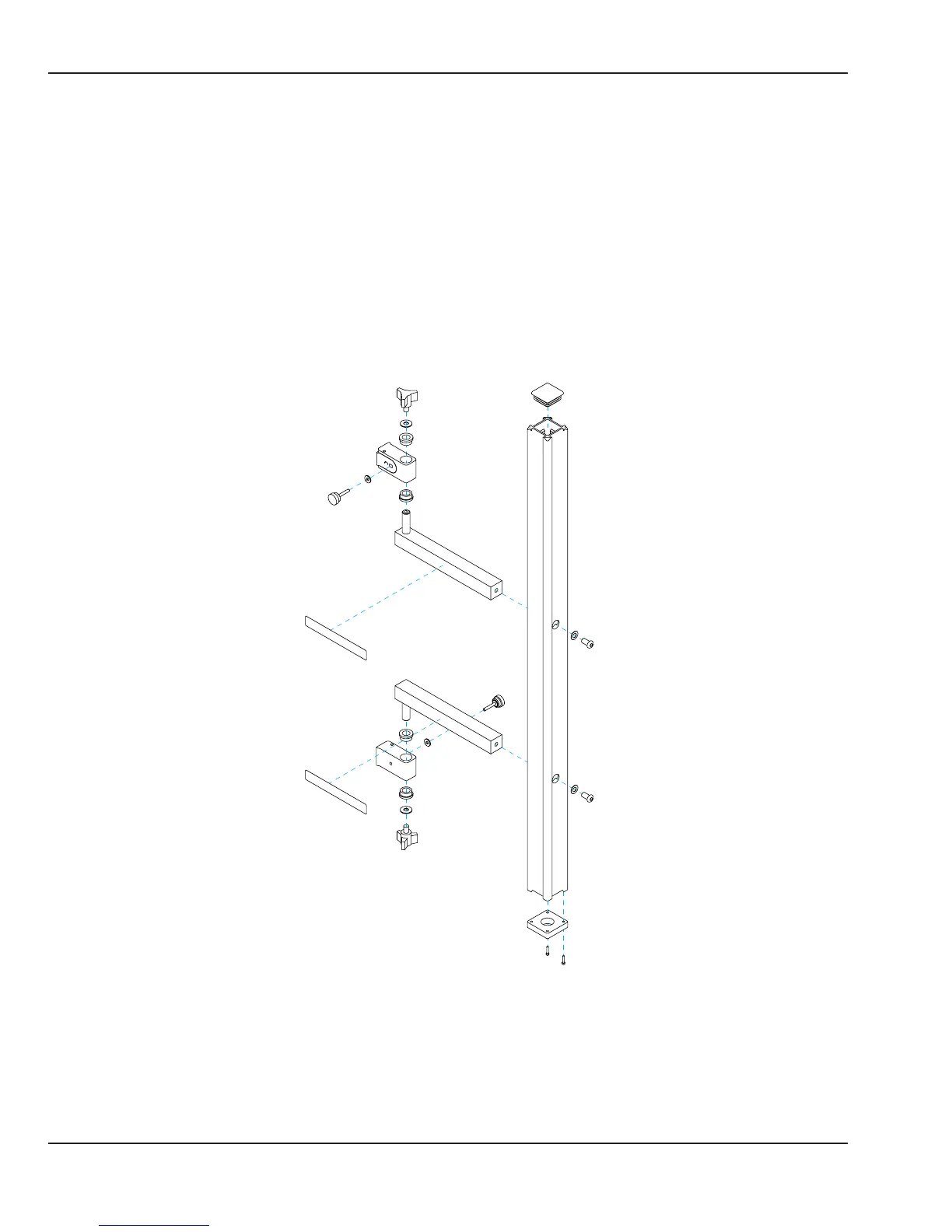

Figure 6-31 Dovetail Extension (6600-0852-800)
146 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
