GE Giraffe Service Manual

6.1.11 Storage Drawer
1. Drawer slide .........................................................................6600-1717-500
2. Drawer mounting bracket*, front (south) ...............6600-1781-500
3. Screw, M4 x 12 Button HD .............................................6600-0706-410
4. Screw, M4 x 8 Button HD ................................................6600-0706-408
5. Split ring lock washer, M4 ..............................................6600-0713-403
6. Flat washer, M4...................................................................6600-0712-446
7. Storage drawer...................................................................6600-1279-500
8. Screw, M5 x 12 Button HD Nyloc ................................6600-0715-410
9. Star washer, M5 internal tooth ....................................6600-0713-433
10. Drawer mounting bracket*, rear (north)
On units with two-piece shroud assembly ............6600-1716-500
On units with three-piece shroud assembly .........M1172111
11. Tray ..........................................................................................6600-1718-500
12. SEMS button head screw M4 x 8 ................................6600-0908-403
*In order to remove the drawer, you must disassemble the drawer from the drawer slides.
1
1
2
3
4 5
6
7
8
9
10
11
4

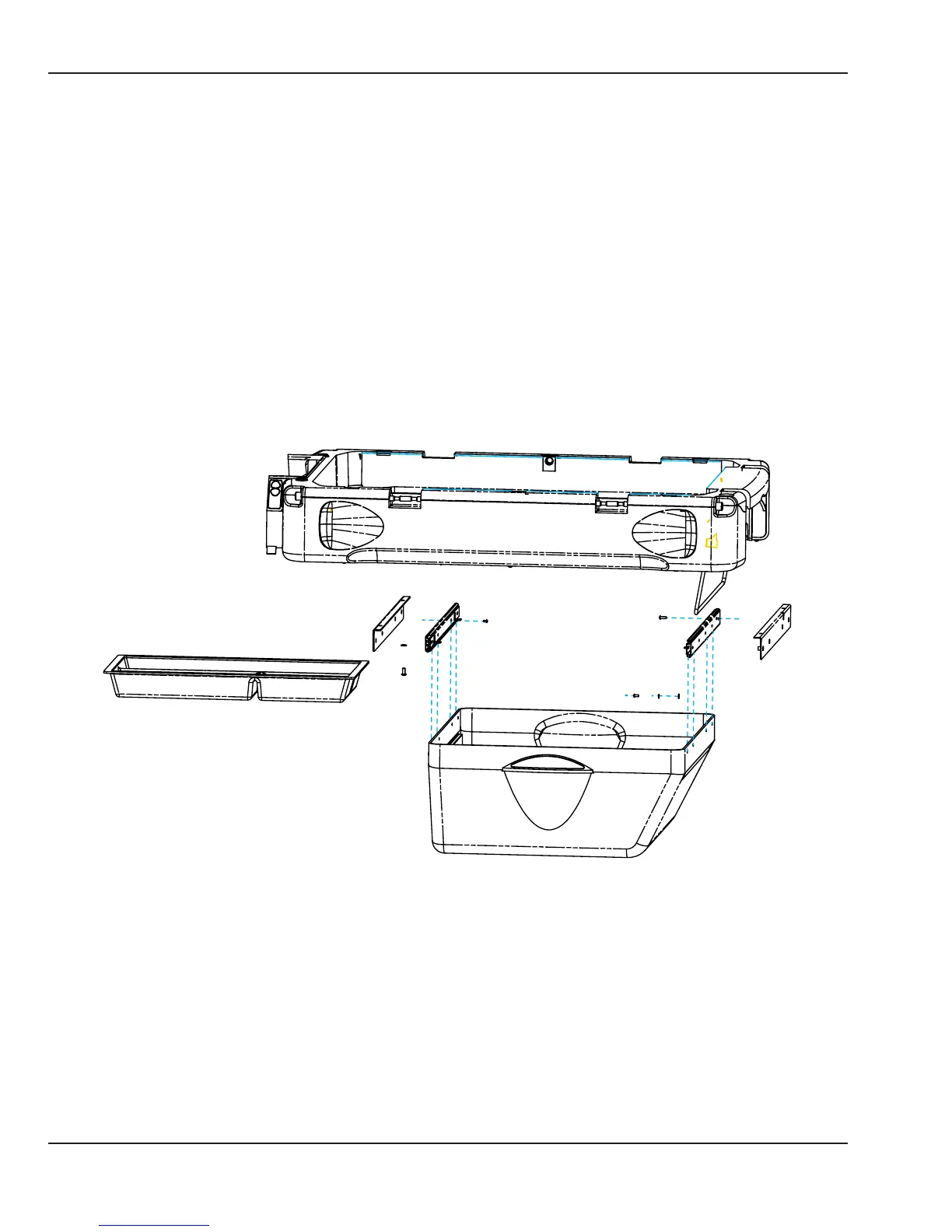

Figure 6-22 Storage Drawer (on Units with Two-piece Shroud Assembly)
138 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
