28
27
29
30
NOTE: Due to design changes, refer
to the “5.7 Caster Replacement” on
page 86 before ordering parts.
NEW
6
10
11
12
Mounting
plate

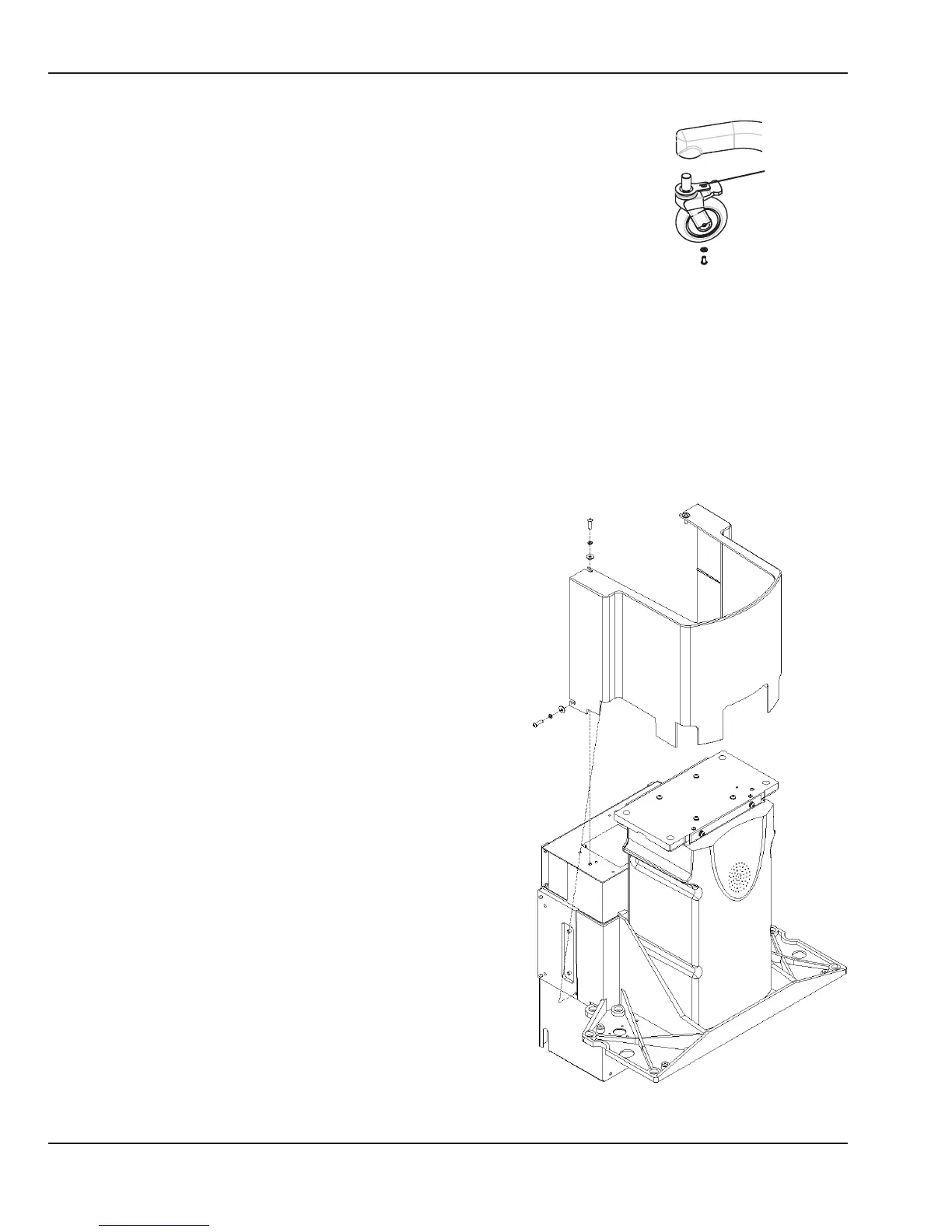

6.1.7 Elevating Base, Current Design
1. Main bracket ........................................................................6600-1183-500
2. Flat washer ...........................................................................6600-0712-406
3. Lock nut, M8 x 1.25 ...........................................................6600-0714-405
4. Inner shroud ........................................................................M1078152
5. Inner shroud back cover ................................................M1078156
6. Leg (new) ...............................................................................6600-1599-500
7. Bed up/down pedal (gray) .............................................M1108745
Bed up/down pedals, set of two (gray) ....................M1108748
8. M2.9x9.5 pan head screw .............................................6600-0709-409
Split ring lock washer .....................................................6600-0713-403
M4x10 button head screw ............................................6600-0706-409
9. Speaker ..................................................................................6600-1168-600
10. Caster, all (new) ...................................................................6600-0890-400
11. Screw, M8 x 16 Btn. Hd. skt. (new) .............................6600-0706-435
12. Lockwasher, M8 (new) .....................................................6600-0712-406
13. Wire harness tie .................................................................M1084707
14. Screw, M12 socket head.................................................6600-0706-449
15. Lock washer M12 ..............................................................6600-0713-408
16. Screw, M6 ..............................................................................6600-1117-402
17. Split ring lock washer, M6 ..............................................6600-0713-405
18. Star washer ..........................................................................6600-0713-445
19. Screw, M6 x 12 button head .........................................6600-0706-427
20. Mounting plate ...................................................................6600-1186-500
21. Elevating column ...............................................................6600-0753-701
22. Washer ...................................................................................6600-0712-405
23. Screw, M6 ..............................................................................6600-0706-427
24. External star washer ........................................................6600-0713-443
25. Flat washer ...........................................................................6600-0712-403
26. Clamp, 5/16 ..........................................................................0208-0335-300
27. Outer shroud........................................................................M1078154
28. Screw, M5 ..............................................................................6600-0706-417
29. Split ring lock washer ......................................................6600-0713-404
30. Flat washer ...........................................................................6600-0712-409
31. Screw, M4 socket head ...................................................6600-0706-409
32. Caster cap .............................................................................6600-1600-500
Parts not shown
Blue plastic connector clip for footswitch .............6600-1163-600
124 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
