Parts not shown
Enclosure door ............................................6600-1349-500
Also refer to power cords in section “6.2 Accessories”.
*Battery is a 7 cell, 8.4v Nickel Metal Hydride battery.
@Not present on all units.
NOTE: If your battery is in the electrical enclosure
above the relay board, order relocation kit M1045981.
This kit includes parts and instructions to relocate the
battery to the probe panel to reduce battery ambient
temperature and prolong battery life.
27
28
1
2
3
4
5
6
7
8
10
9
11
12
14
13
15
16
17
18
19
20
21
22
23
24
25
26
29
30
33
31
32
31
21
22
36
36
37
38
39
39
39

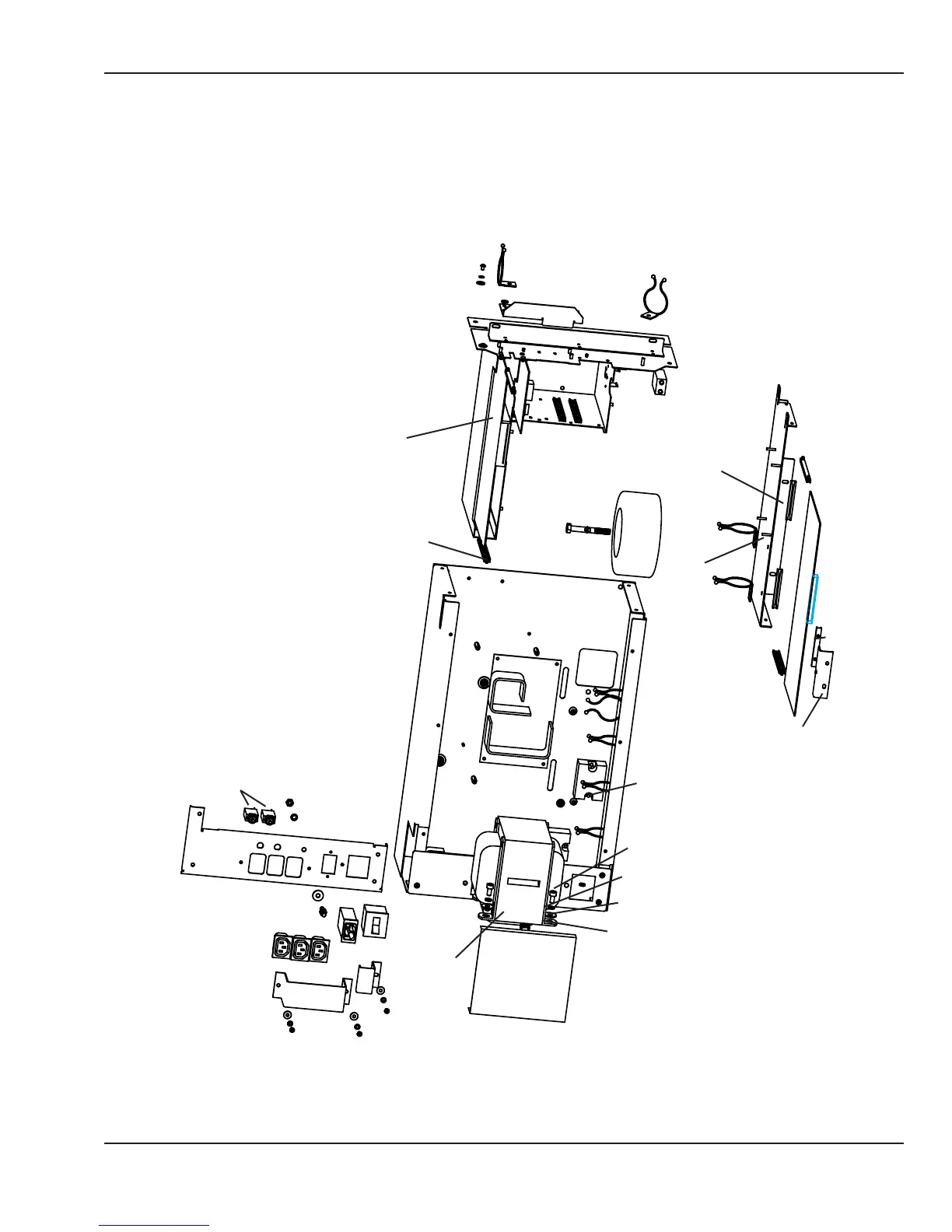

Figure 6-3 Electrical Enclosure
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0356-000 103 105
Chapter 6: Illustrated Parts
