GE Giraffe - Figure 6-27 Tubing Management Arm (6600-0837-800)

1
2
3
4
5
1. Goose neck ...........................................................................6600-1866-500
2. Tubing plate .........................................................................6600-1862-500
3. Screw cover ..........................................................................6600-1206-403
4. Screw, pan hd. .....................................................................6600-1213-400
5. Mount ......................................................................................6600-1845-500

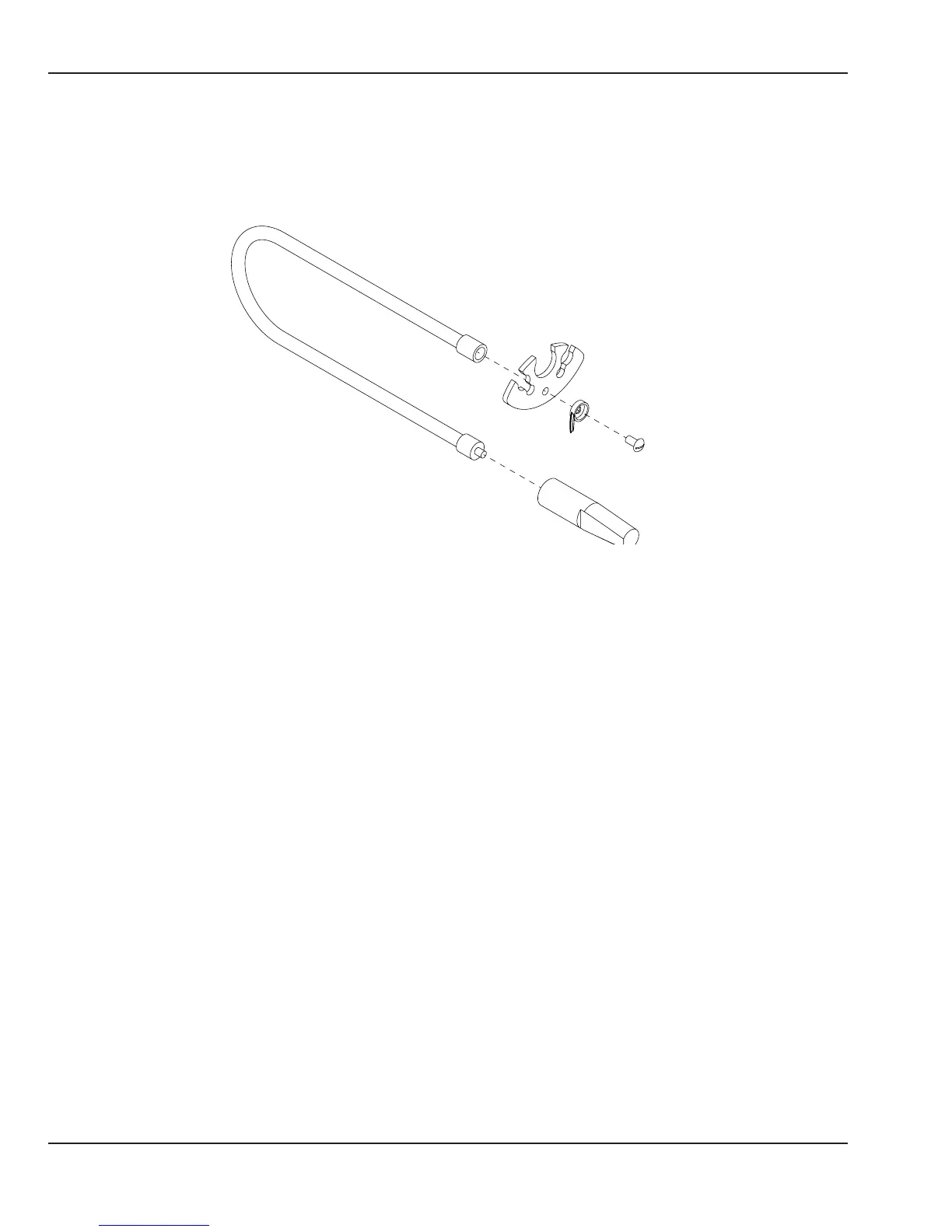

Figure 6-27 Tubing Management Arm (6600-0837-800)
142 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
