1. RS232 blank plate .............................................................6600-1752-500
2. Cable twist lock ..................................................................6600-1197-600
3. Card cage ..............................................................................6600-1347-500
4. In older units:
Battery* ..................................................................................6600-1024-600
Battery adapter harness@ ............................................6600-0617-700
5. Relay board bracket .........................................................6600-1166-500
6. Relay board ..........................................................................6600-0214-850
120 V 2 amp fuse (relay brd. 10 or higher) .............6600-0877-600
230 V 1 amp fuse (relay brd. 10 or higher) .............6600-0882-600
3.5 amp fuse (relay brd. 10 or higher) ......................6600-0878-600
Interface board@ (relay brd. 9 or lower) ................. No longer needed.
120V 2 amp fuse@ ..........................................................6600-1324-602
230V 1 amp fuse@ ..........................................................6600-1324-601
7. E-base toroidal transformer .........................................6600-0746-700
8. Screw, 5/16-18 x 2 ½ .......................................................6600-1111-400
9. Incubator heater solid state relay .............................6600-1003-600
10. Screw, M6 x 16 ....................................................................6600-0707-421
11. Star washer, M6 internal tooth ....................................6600-0713-434
12. Flat washer. M6...................................................................6600-0712-405
13. Star washer, M6 external tooth ...................................6600-0713-445
14. Wire shield@ ........................................................................6600-1798-500
15. Bed heater isolation transformer@ ..........................6600-0815-700
16. Power switch (115V) .........................................................6600-1014-602
Power switch (230V) .........................................................6600-1014-601
17. Line lter ................................................................................6600-1006-600
18. Single plug guard
U.S., U.K., Italian, Swiss, Australian (short) ..............6600-1701-500
C.E. cord (long) .....................................................................6600-1857-500
Bumper kit for power cord (40 bumpers) ...............M1135907
19. Accessories plug guard ..................................................6600-1711-500
20. Flat washer, M4...................................................................6600-0712-403
21. Lock washer, M4 internal tooth ...................................6600-0713-432
22. Screw, M4 x 8 .......................................................................6600-0706-408
23. Washer, color code ...........................................................6600-0338-400
24. Plug ground ..........................................................................6600-0337-400
25. Power outlet .........................................................................6600-0583-600
26. Connection panel ..............................................................6600-1746-500
27. Circuit breaker.....................................................................6600-0562-603
28. Nut, M6 ...................................................................................6600-0340-400
29. Lock washer .........................................................................6600-0339-400
30. Electrical enclosure ..........................................................6600-1346-500
31. Card tension rack (bottom) ...........................................6600-1064-400
32. Control board ......................................................................6600-0212-850
33. Card guide (top) ..................................................................6600-1183-400
34. Hex nut, M5 ..........................................................................6600-0711-408
35. Lock washer, M5 .................................................................6600-0713-444
36. Card guide (rear) ................................................................6600-1105-400
37. Board retaining bracket .................................................6600-1822-500
38 Nut for bracket ...................................................................6600-0711-403
39. Door hardware-
Screw, SEMS M4 x 10 btn hd skt .................................6600-0908-401
34
35
104 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.

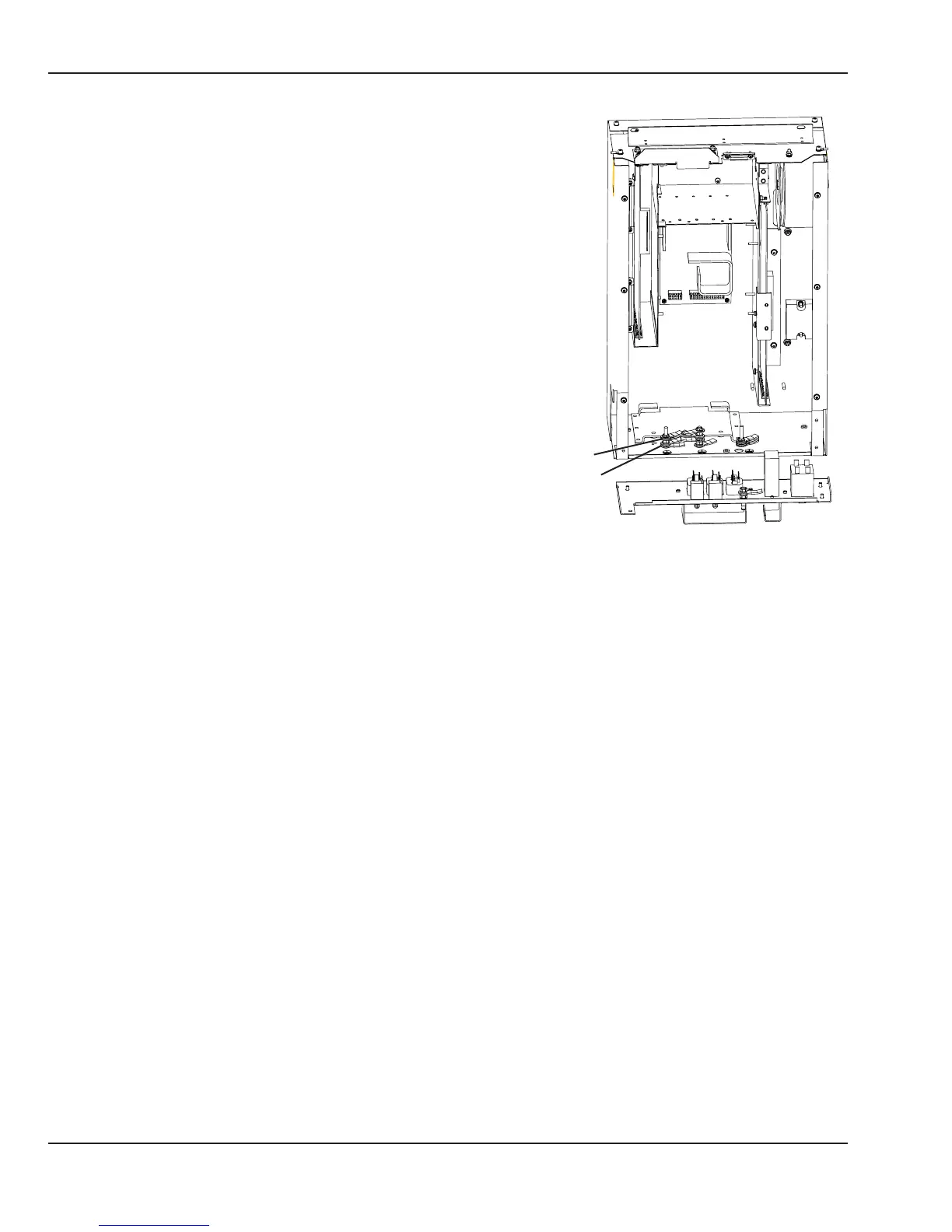

Chapter 6: Illustrated Parts
