1. Door with porthole cutouts@ ......................................6600-1807-500
2. Inner wall ...............................................................................6600-1792-500
3. Porthole seal ........................................................................6600-1249-500
4. Wall hinge snap .................................................................6600-1436-500
5. Side wall hinge ....................................................................6600-1149-500
6. Side wall hinge mask label ............................................6600-2321-100
7. Side wall inside latch cover ...........................................6600-1826-500
8. Porthole hinge bottom ....................................................6600-1239-500
9. Side wall latch .....................................................................6600-1403-500
10. Screw, M2.9 x 9.5 ...............................................................6600-0709-409
11. Side wall latch spring .......................................................6600-1405-500
12. Side wall latch cover ........................................................6600-1404-500
13. Wall hinge snap post .......................................................6600-1429-500
14. Porthole hinge right (East) spring* .............................6600-1026-400
15. Porthole middle hinge .....................................................6600-1240-500
16. Hinge pin ...............................................................................6600-1041-400
17. Porthole hinge left (west) spring* ...............................6600-1040-400
18. Flat washer ...........................................................................6600-0712-403
19. Split ring lock washer, M4 ..............................................6600-0713-403
20. Screw, M4 x 16 ....................................................................6600-0706-411
21. Porthole hinge cover ........................................................6600-1242-500
22. Porthole door .......................................................................6600-1238-500
23. Porthole latch cover* .......................................................6600-1246-500
24. Porthole latch spring........................................................6600-1245-500
25. O-ring ......................................................................................6600-1049-400
26. Porthole latch base* ........................................................6600-1244-500
27. Plastic washer .....................................................................6600-1050-400
28. Screw, M2.9 ..........................................................................6600-0709-407
29. Porthole latch spacer ......................................................6600-1257-500
30. Screw, M4 x 12 ....................................................................6600-0706-410
31. Porthole Latch Assembly (Includes 23-28) ............6600-0738-700
32. Ohmeda logo label@ (refer to section 6.3) ............6600-2384-101
33. Girae logo label@ (refer to section 6.3) .................6600-2382-101
34. Iris service kit .......................................................................6600-0037-850
35. (This item is no longer available.)
36. Iris gasket ..............................................................................6600-0699-500
Parts not shown:
Oscillator (High Freq. Vent) port cover .....................6600-0838-800
* Use Vac Kote (6700-0092-200) sparingly on the porthole door springs (items 14 and 16) and on the surfaces where the door latch
pieces (items 23 and 26) slide together.
@ Order items 32 and 33 when ordering item 1.

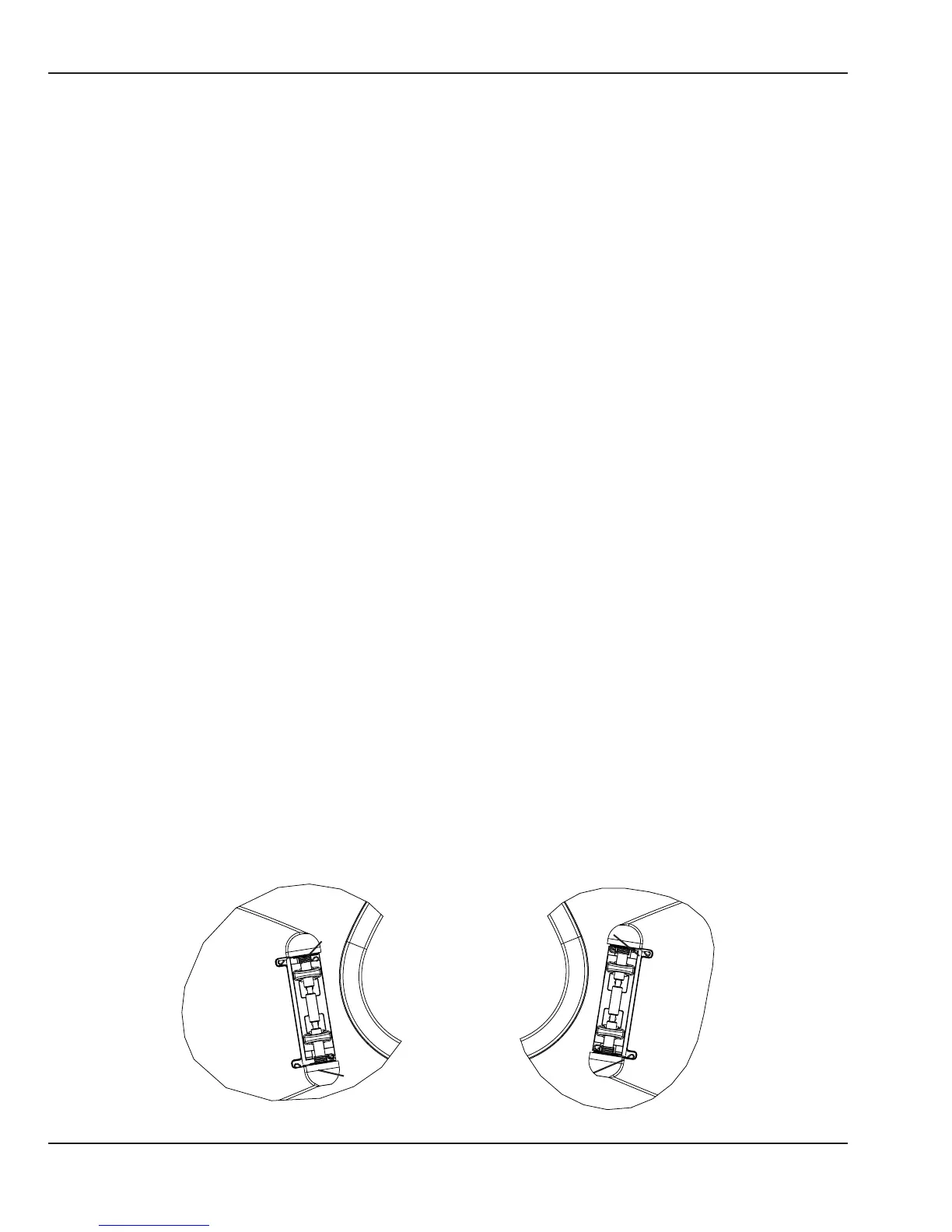

14
17
14
17
LEFT DOOR
RIGHT DOOR
110 6600-0356-000 103 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
