GE MEDICAL SYSTEMS
D
IRECTION FK091075, REVISION 04 VIVID 3N PRO/EXPERT SERVICE MANUAL
Chapter 3 Installation 3-55
3-9-4 Setting Up the Network Connection (cont’d)
5) Trackball to the Local Settings tab and press Select. The Local Settings tab is displayed, as
shown below.

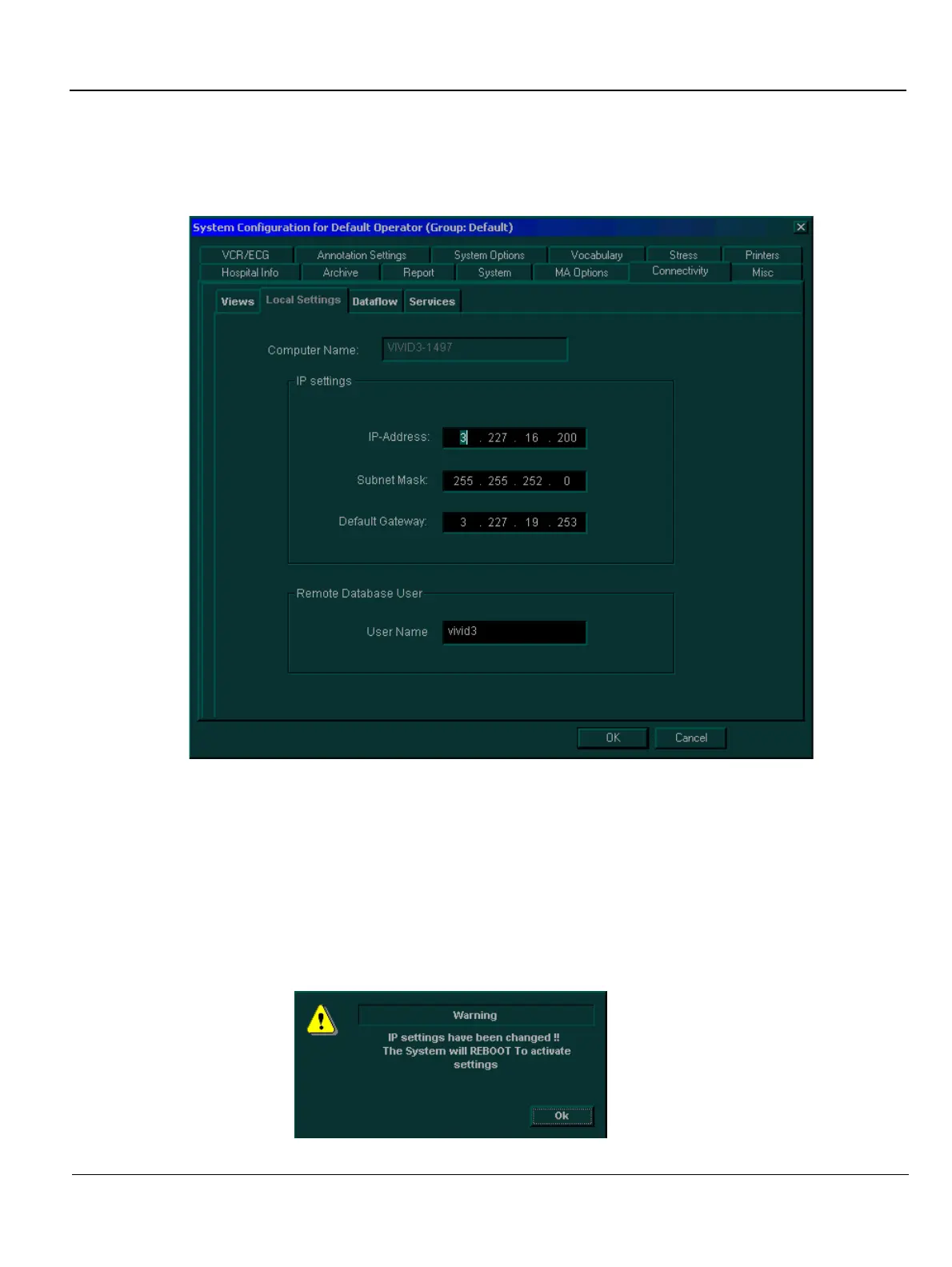

Figure 3-38 Local Settings Tab
NOTE: The Computer Name field shows the serial number of your Vivid 3N Pro/Expert system.
6) Enter the network information in the appropriate fields. Leave the User Name as vivid3.
NOTE: The Default Gateway option is not always required. If this address is not supplied by the
system administrator, leave it blank.
7) Trackball to the OK button and press Select. The following warning is displayed:
8) Trackball to the OK button and press Select. The system will reboot to activate the settings.
