GE VIVID 3 BT00 - Sony up 2950 MD & 2800 P Color Video Printer Replacement Procedure

GE MEDICAL SYSTEMS
D
IRECTION FK091075, REVISION 04 VIVID 3N PRO/EXPERT SERVICE MANUAL
8-134 Section 8-8 - Peripherals
8-8-4 Sony UP 2950 MD & 2800P Color Video Printer Replacement Procedure
NOTE: This section describes the installation and removal procedures of the Sony UP-2800P and UP/2950MD
Color Video Printers.
The Sony UP-2950MD Color Video Printer has a NTSC/PAL Selector on the rear panel while the Sony
UP-2800P Color Video Printer is PAL only.

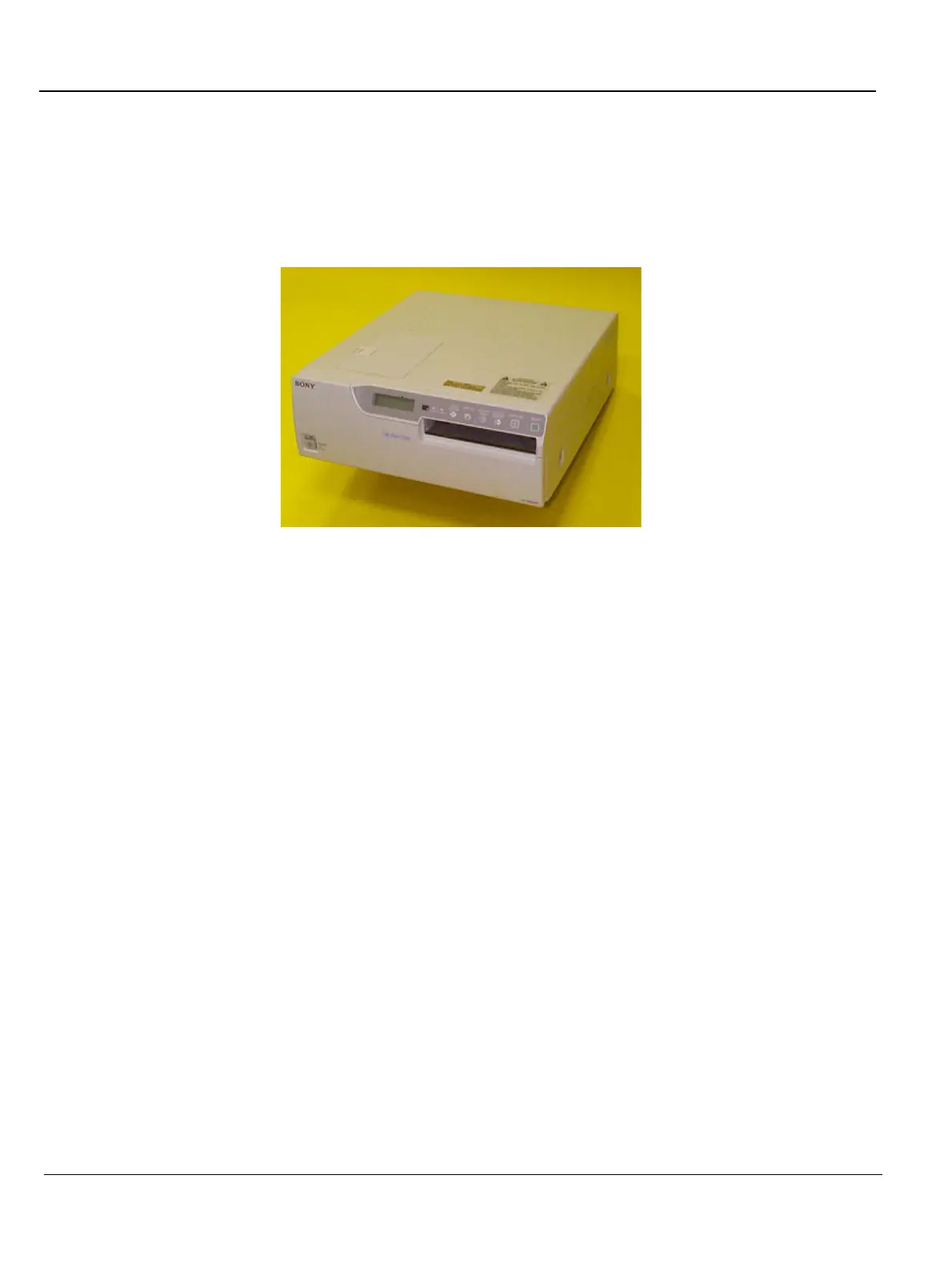

Figure 8-116 SONY Color Video Printer
In this section, two types of replacement procedures are described, as follows:
• For units that are equipped with a previously-installed B/W printer and/or VCR
(see 8-8-4-4 "Color Video Printer Installation - Procedure1" on page 8-135, and 8-8-4-5 "Color
Video Printer Removal - Procedure 1" on page 8-139).
• For units that are not equipped with a previously-installed B/W printer and/or VCR
(refer to 8-8-4-6 "Color Video Printer Installation - Procedure 2" on page 8-140, and 8-8-4-7 "Color
Video Printer Removal - Procedure 2" on page 8-140).
8-8-4-1 Tools
Use the appropriate flat and Phillips-type screw drivers.
8-8-4-2 Manpower
One person - 30 mins.
8-8-4-3 Preparations
1) Shut down the Vivid 3N Pro/Expert ultrasound unit, as described in Chapter 3 - Installation.
2.) Remove the Connectors Panels Cover as described in 8-2-5-3 "Connector Panels Cover Removal
Procedure" on page 8-8.
3.) Unpack the Color Video Printer.
4.) Check that the Color Video Printer AC voltage corresponds to that of your local voltage.
5.) Set the NTSC/PAL selector switch to NTSC (this applies only to Model UP-2950MD) as shown in
Figure 8-122 "Color Video Printer Connection Cables" on page 8-138.
6.) Install the Color Video Printer accessories, as described in Operating Instructions supplied with the
printer.
