GE H
EALTHCARE
D
IRECTION
GA091568, R
EVISION
5 VIVID E9 S
ERVICE
M
ANUAL
Chapter 3 - System setup 3 - 23
3-7-5 Connections on the Patient I/O panel
The Patient I/O panel is located on the front of VIVID E9.
3-7-5-1 Connect ECG
Connect the ECG cable to the ECG connector on the Patient I/O panel.
3-7-5-2 Connect Heart Microphone (Phono)
The Heart Microphone has its corresponding Phono adapter. See Section 9-20 "Physio TX Parts" on
page 9-92.
Connect the Heart Microphone via the corresponding Phono Adapter to the Phono input on the Patient
I/O panel.
3-7-5-3 Connect Pulse Pressure Transducer
Connect the Pulse Pressure Transducer via the corresponding Auxiliary/Pressure Adapter to the Patient
I/O panel. For Part Number and model information, see Section 9-20 "Physio TX Parts" on page 9-92.

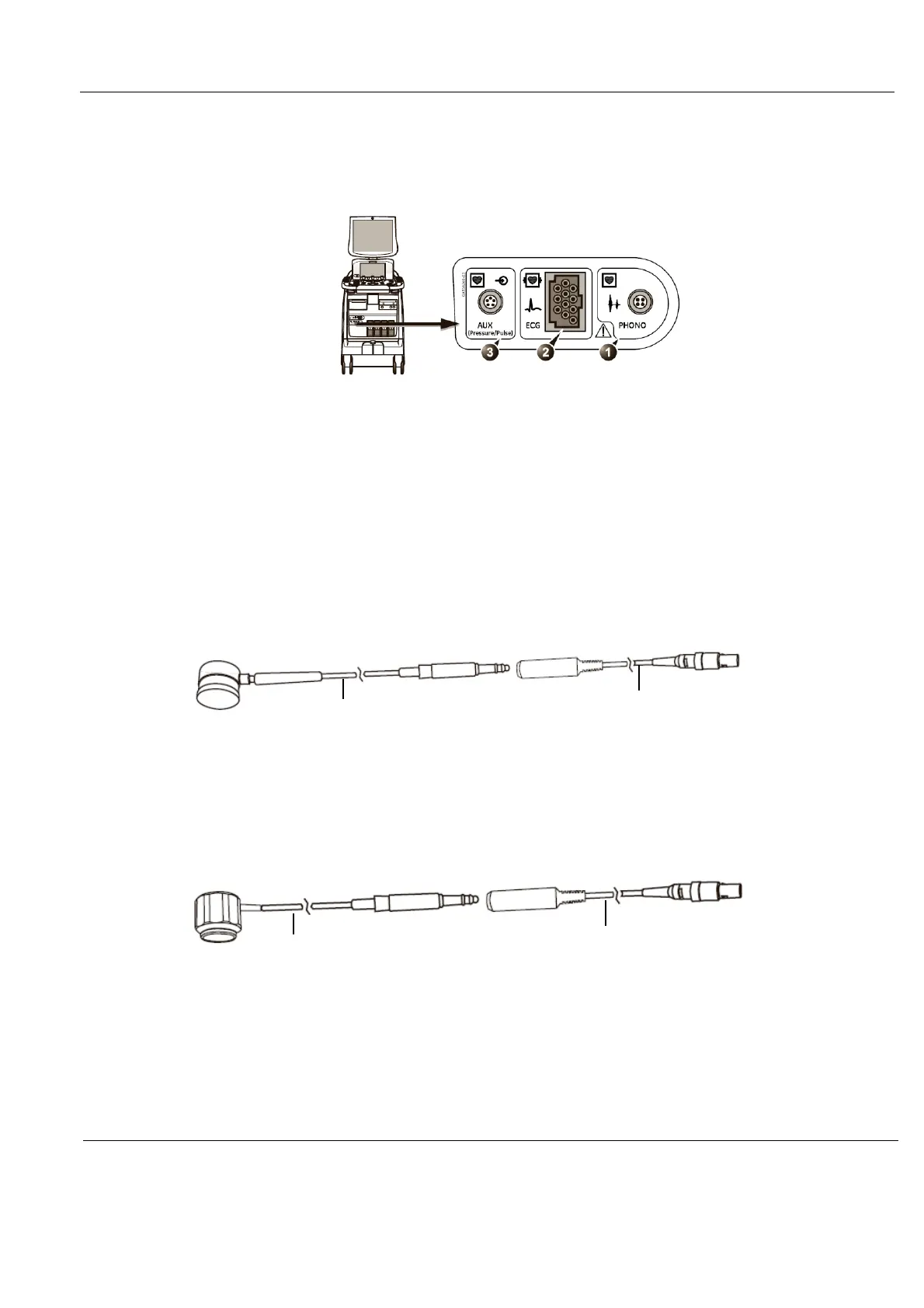

Figure 3-6 Patient I/O Panel
Figure 3-7 Heart Microphone (Phono)
Figure 3-8 Pulse Pressure Transducer
1 - PHONO
2 - ECG
3 - AUX (PRESSURE/PULSE)
MA-300
PHONO ADAPTER
TY-306
AUX/PRESSURE
ADAPTER
