6 - 14 Section 6-7 - Adjusting the XYZ Mechanism
6-7-3 XY Manual Release for Lock and Brake Mechanism and Adjustment
The following procedure is intended to release and adjust the XY mechanism.
6-7-3-1 XY Lock and Brake Mechanism Parts

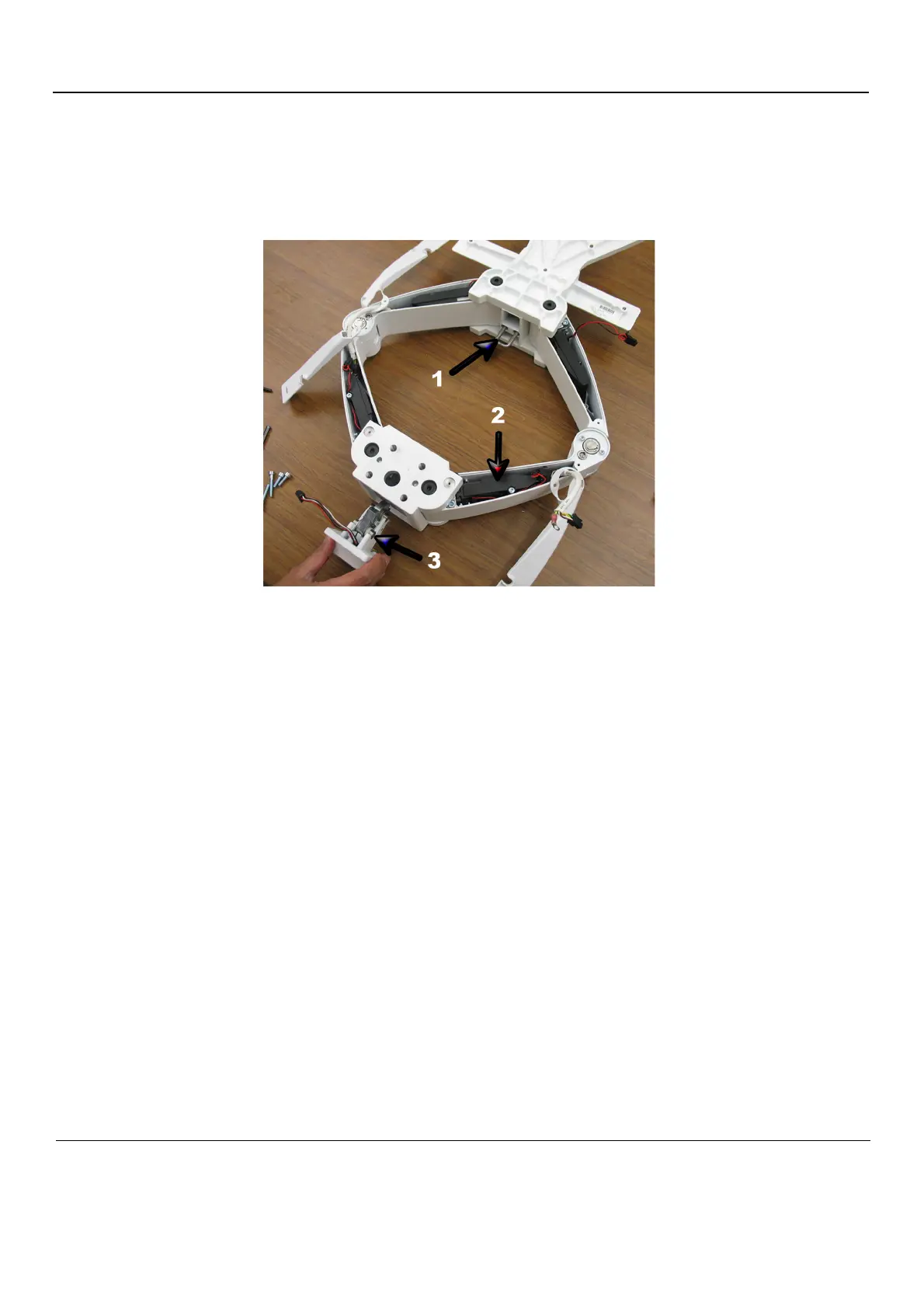

Figure 6-13 XY Lock and Brake Mechanism Parts
1.) U-bolt
2.) Brakes (one inside each of the four XY arms)
3.) Park Lock (engages U-bolt)
