Chapter 5 - Components and functions (theory) 5 - 21
5-4-2 Operator Panel (Control Panel)
5-4-2-1 Operator Panel general description
The Operator Panel includes an On/Off switch, different controls for manipulating the picture quality,
and controls for use in Measure & Analyze (M&A).
An alphanumeric keyboard is located on a drawer under the Operator Panel.

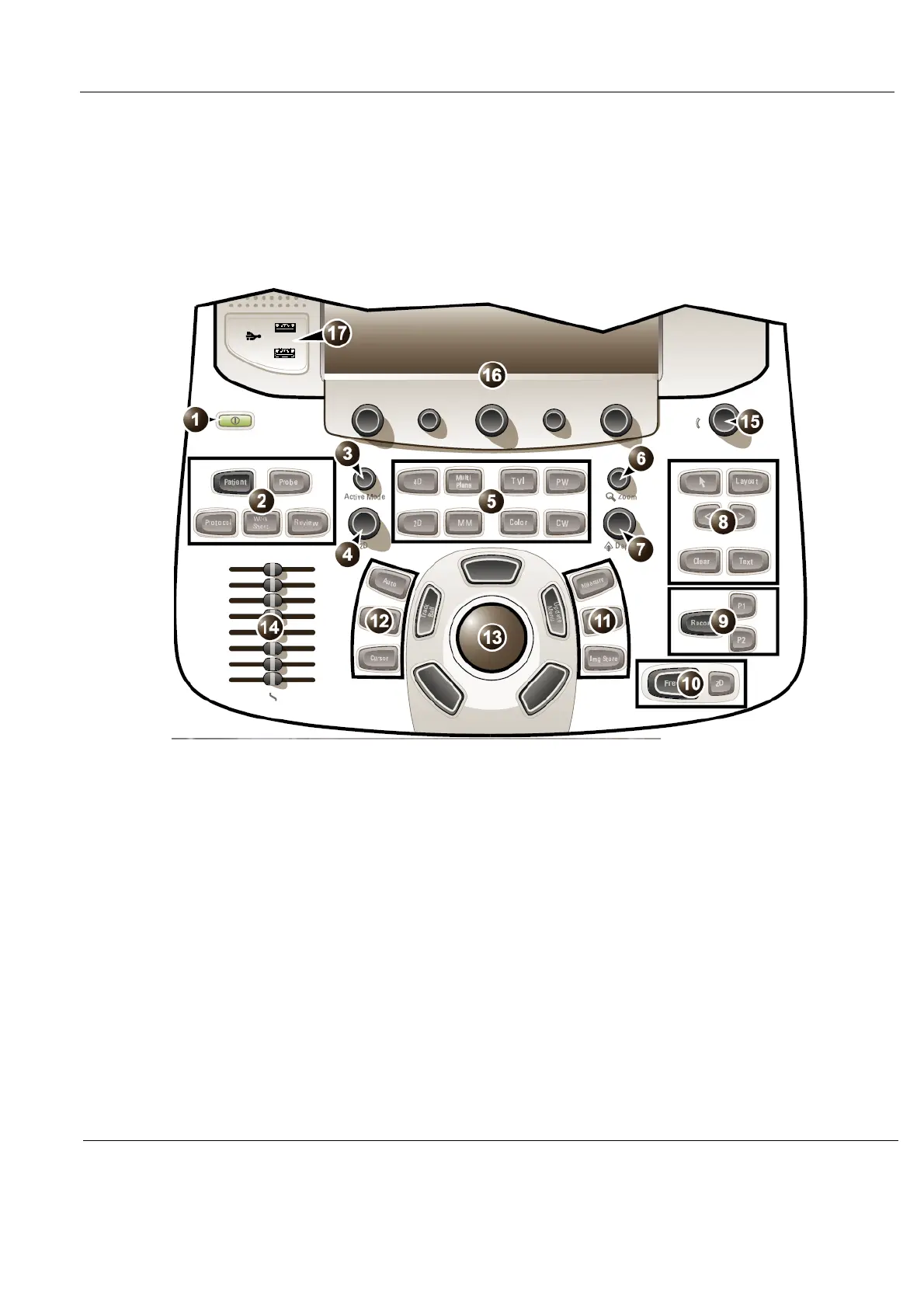

Figure 5-10 Operator Panel
