D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
9 - 74 Section 9-17 - Internal Cables - VIVID E9
9-17-2 Top Console Cables

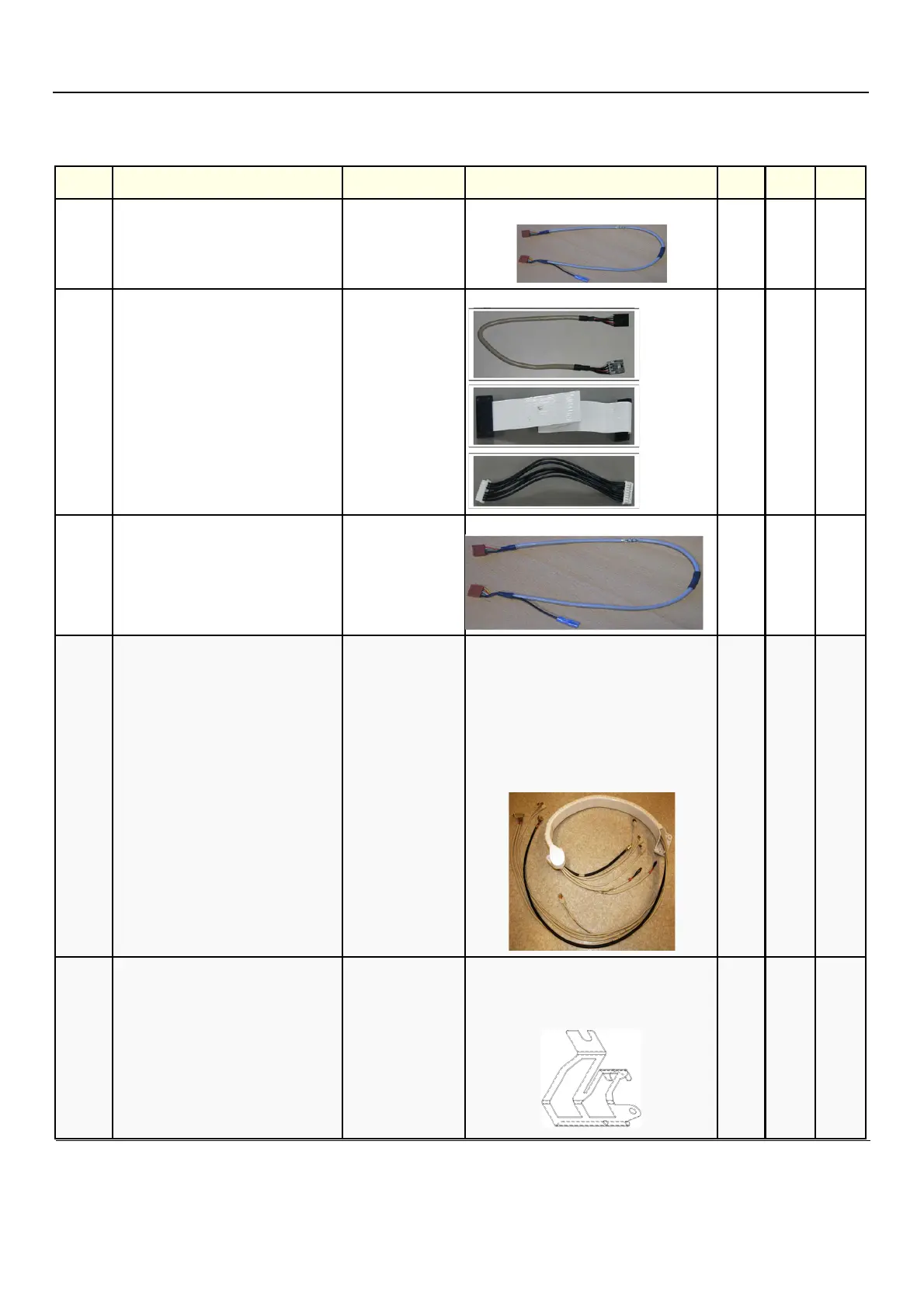

Table 9-43 VIVID E9 Top Console cables sheet 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
14.
CABLE AN KEYBOARD GA200368
J18 - KEYBOARD. USB and 12V
1NY
15.
OPERATOR PANEL CABLE KIT GA200446 1NY
16.
Cable, A/N Keyboard, USB & 12V GA200368 1 N Y
17.
CABLE MAIN 5272357
CABLE D, FROGLEG CABLE
• DVI VIDEO (BEP > OP PANEL)
• 48V POWER/USB6 (BEP > OP PANEL)
• AUDIO/ON/OFF/USB5 (BEP > OP
PANEL)
UP/DOWN/BRAKE/RELEASE
SWITCHES
(OP PANEL > MOTOR/BRAKE
CONTROL)
1 N Y
18.
BRACKET, LOCK BULKHEAD
CONNECTORS
GA307978
For mechanically securing the monitor
HDMI cable and the monitor Power/USB
cable to the rear side of the UI bulkhead.
1 N Y
TRACKBALL
USB CABLE
USB VIDEO
BOARD
FLEX CABLE
HV
INVERTER
CABLE
