5 - 56 Section 5-9 - Back End Processor (BEP)
5-9-7 BEP6 Face, Top and Rear connections
Table 5-9 BEP6 Face connections

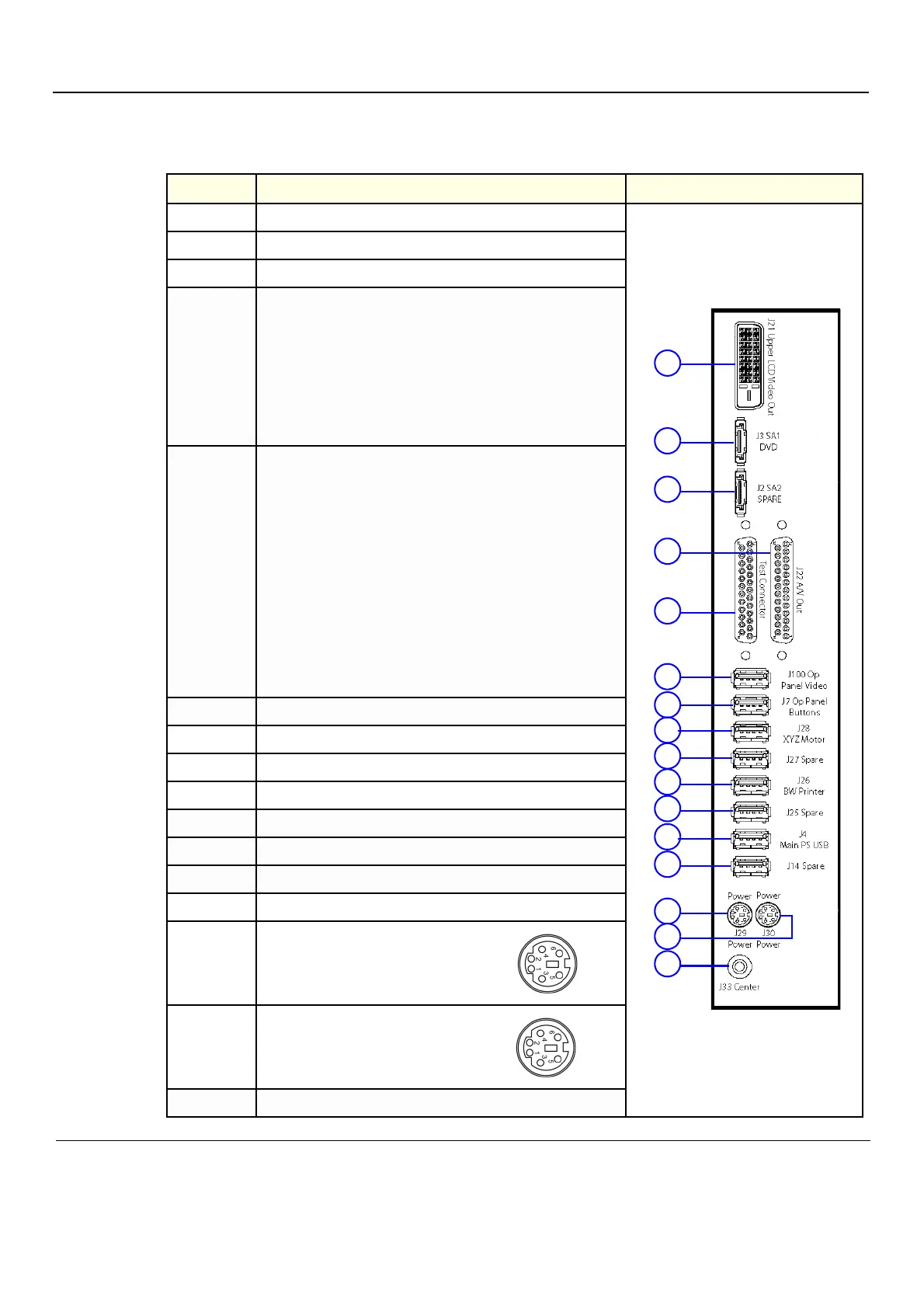

ITEM DESCRIPTION ILLUSTRATION
1. J21 - Upper LCD Video Out (Main LCD Video)
2. J3 - SA1 DVD (SATA to DVD)
3. J2 - SA2 SPARE (SATA to DVD)
4. J22 - A/V OUT (OP Console)
Pins of note:
5: PWR_SW
6: 5V_STDBY
9-13: 48V
17, 22-25: GND
18: PWR_LED_P
21: PWR_LED_N
5. Test Connector (Factory Test)
Pins of note:
5, 13, 23: Ground
3: 24V
4: 48V
8: 12V
9: 5V
10: AC_FAIL_N
11: 3.3V
12: 5V_STDBY
16: Not Used on Vivid E9
24: PWR_SW
25: PSON_N
6. J100 - OP Panel Video (USB)
7. J7 - OP Panel Buttons (USB)
8. J28 - XYZ Motor (USB)
9. J27 - Spare (USB)
10. J26 BW Printer (USB)
11. J25 - Spare (USB)
12. J4 - Main PS USB (USB)
13. J14 - Spare (USB)
14. J29 - Power (to peripherals)
Pinout: 1, 2 - GND
3,5 - 12V
4,6 - 5V
15. J30- Power (to peripherals)
1, 2 - GND
3,5 - 12V
4,6 - 5V
16. J33 Center (Center Speaker / Sub-woofer)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
