5 - 64 Section 5-9 - Back End Processor (BEP)
5-9-10 Input Signals
BEP6:
• Audio signal path: GFI > FEP Backplane > BEP6 MBD > [a and b]
a: > IO Board > Audio Out
b: > DVR
BEP5:
• Audio signal path: GFI > FEP Backplane > BEP > IO Board > Audio Out / BEP Motherboard)

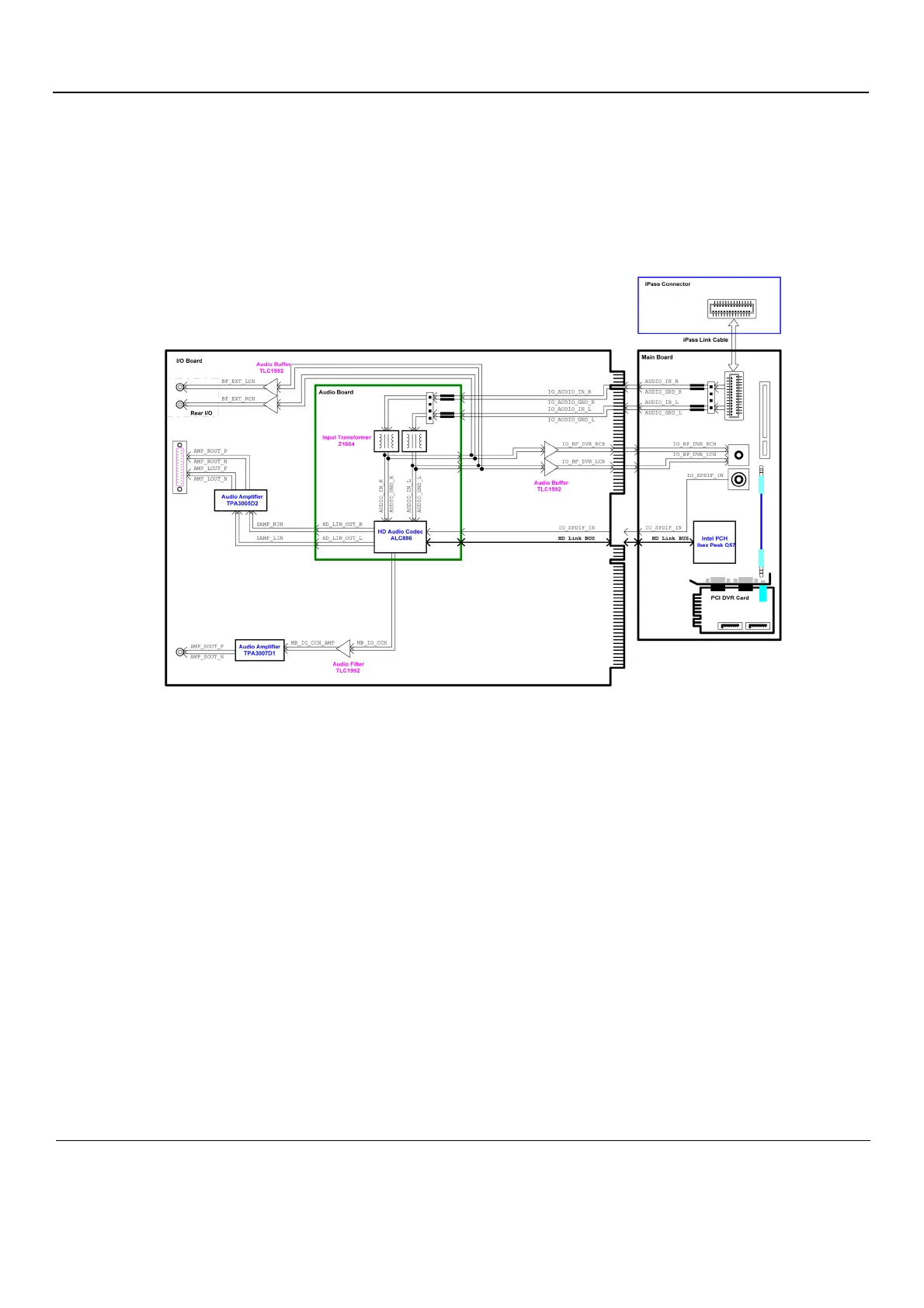

Figure 5-46 Audio map - BEP6
