GE Vivid E9 Service Manual

GE H EALTHCARE
D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
9 - 62 Section 9-12 - Back End Processor (BEP) Spare Parts
9-12-3 BEP5 Spare Parts

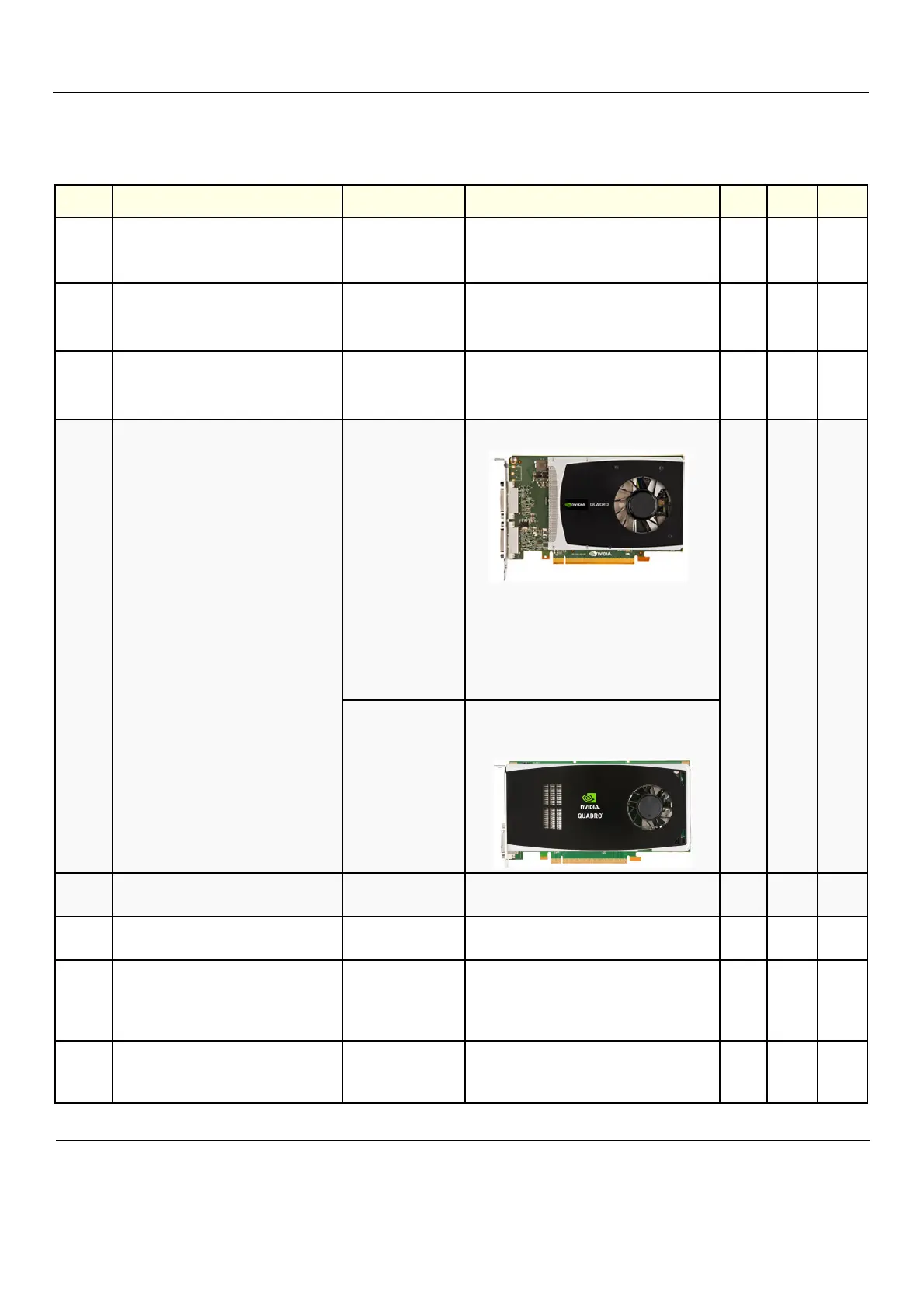

Table 9-31 BEP5 Spare Parts sheet 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
1.
BEP without 4D - 2 GA200900
BACK END PROCESSOR
Software requirement: v110.0.0 and higher
Replaces GA200805
1NY
2.
BEP without 4D GA200805
BACK END PROCESSOR
Used on BT’11 VIVID E9s with “2D”
Software requirement: v110.0.0 and higher
1NY
3.
BEP COMPLETE 5145000-10
BACK END PROCESSOR
Used on BT’09 VIVID E9s
Software requirement: v108.0.0 and higher
1NY
4.
GRAPHICS ADAPTER
066E0361
NVIDIA Quadro 2000D
Used on VIVID E9s with 4D.
System Software requirement:
v104.3.3 or higher.
This card will be phased in as a
replacement for 066E0360, when
066E0360 goes obsolete.
1 N Y
066E0360
NVIDIA Quadro FX 1800 Graphics Adapter
Used on VIVID E9s with 4D as replacement
for 066E0339.
5.
PROLINK ADD card for PCI Express
16X for ATX
5323903 Used on VIVID E9 systems with 2D 1 N Y
6.
BEP5 BIOS Load CD Release,
version A563E121
GA200725 FOR VIVID E9 1 N Y
7.
Seagate ST250DM0000 250GB HDD 5215286-3
Hard Disk Drive
For ALL BEP5.
Replaces 5215286-2 when it becomes
unavailable.
1NY
8.
SERIAL HARD DRIVE 5215286-2
Hard Disk Drive
For 5145000-10, GA200800 and
GA200805.
1NY

GE Vivid E9 Specifications

General

Power Requirements	100-240 VAC, 50/60 Hz
Display	High-resolution LCD monitor
Doppler Modes	Color Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
3D/4D Imaging	Yes
Advanced Features	Speckle Reduction Imaging
Connectivity	DICOM, USB, Ethernet
Transducer Types	Linear Array
Operating Temperature	10°C to 40°C
Humidity Range	30% to 80% non-condensing
