GE Vivid E9

GE H EALTHCARE
D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
Chapter 5 - Components and functions (theory) 5 - 13
5-3-8 VIVID E9 interconnection diagram

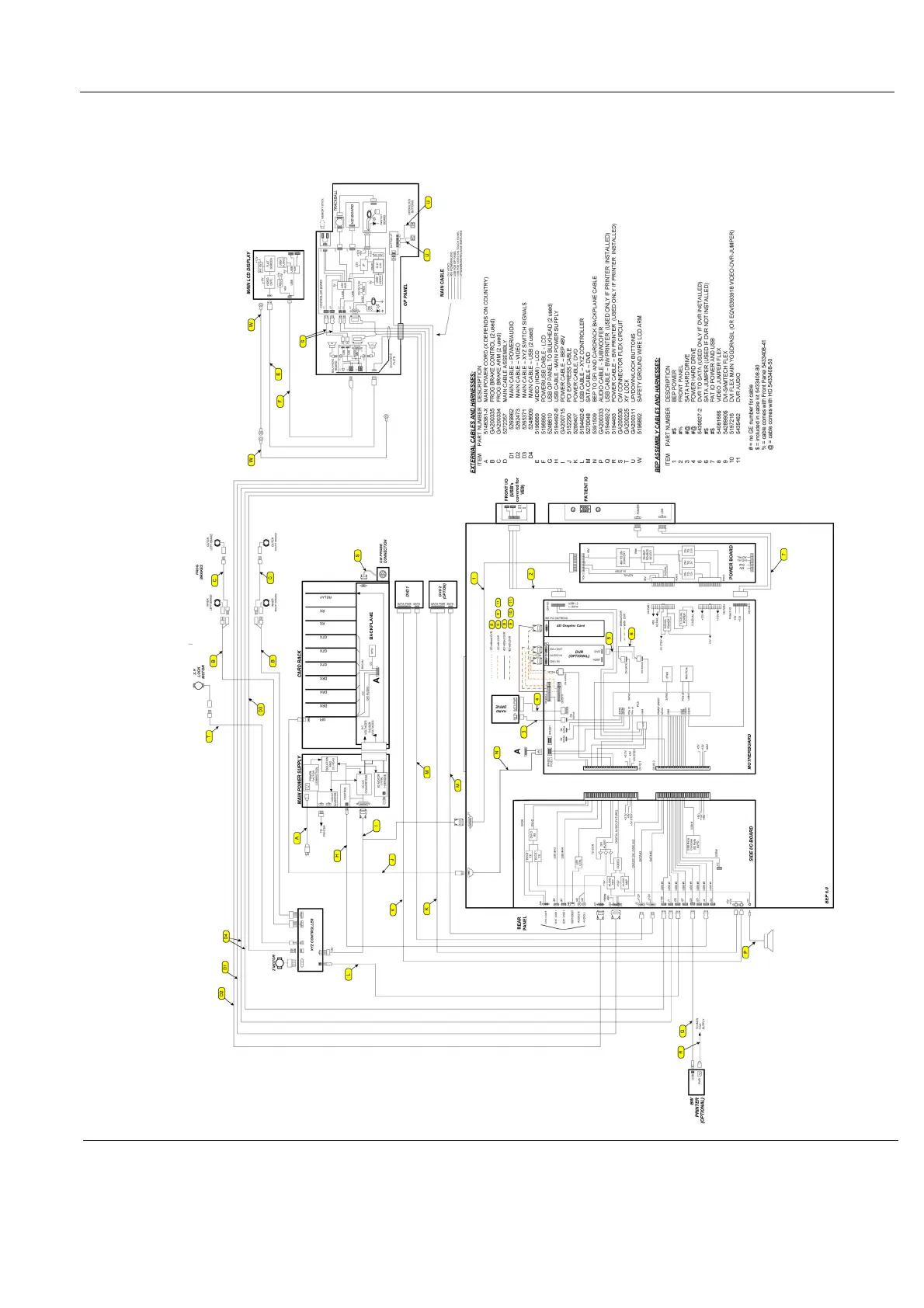

Figure 5-5 VIVID E9 w/ BEP6 interconnection diagram
