D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
5 - 58 Section 5-9 - Back End Processor (BEP)
5-9-8 BEP5 Face and Top connections
Please refer to the illustrations.

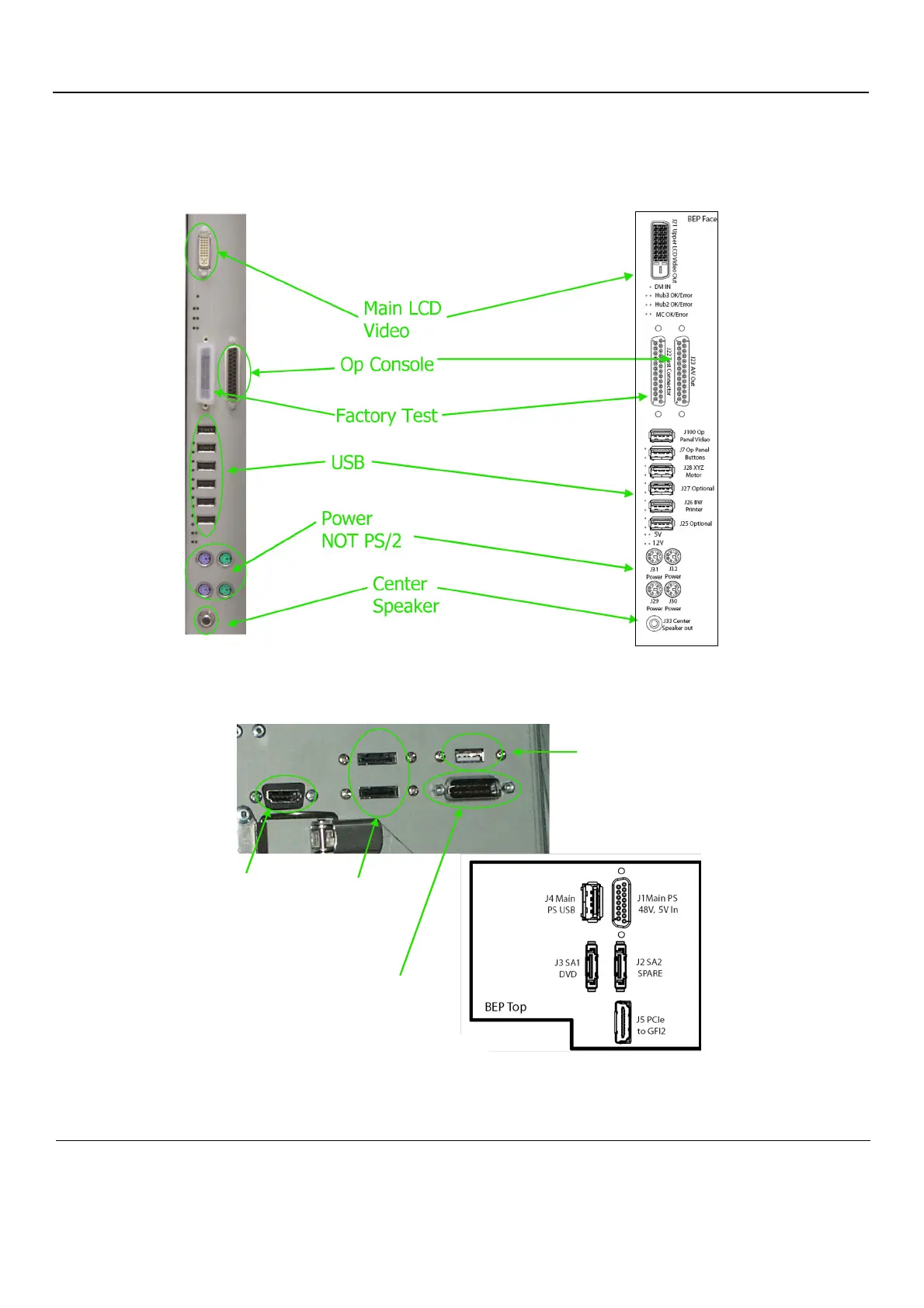

Figure 5-41 BEP5 Face connections
Figure 5-42 BEP5 Top connections
(Sub-woofer)
PCI Express
to GFI
SATA to DVD
Main PS
(48VDC, 5VSB,
Power OK)
USB to
Main PS
PCI Express
to GFI
SATA to DVD
Main PS
(48VDC, 5VSB,
Power OK)
USB to
Main PS
