GE Vivid E9 - Page 227

GE H EALTHCARE
D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
Chapter 5 - Components and functions (theory) 5 - 37
5-8-3-7 LEDs on the GTX-64 board

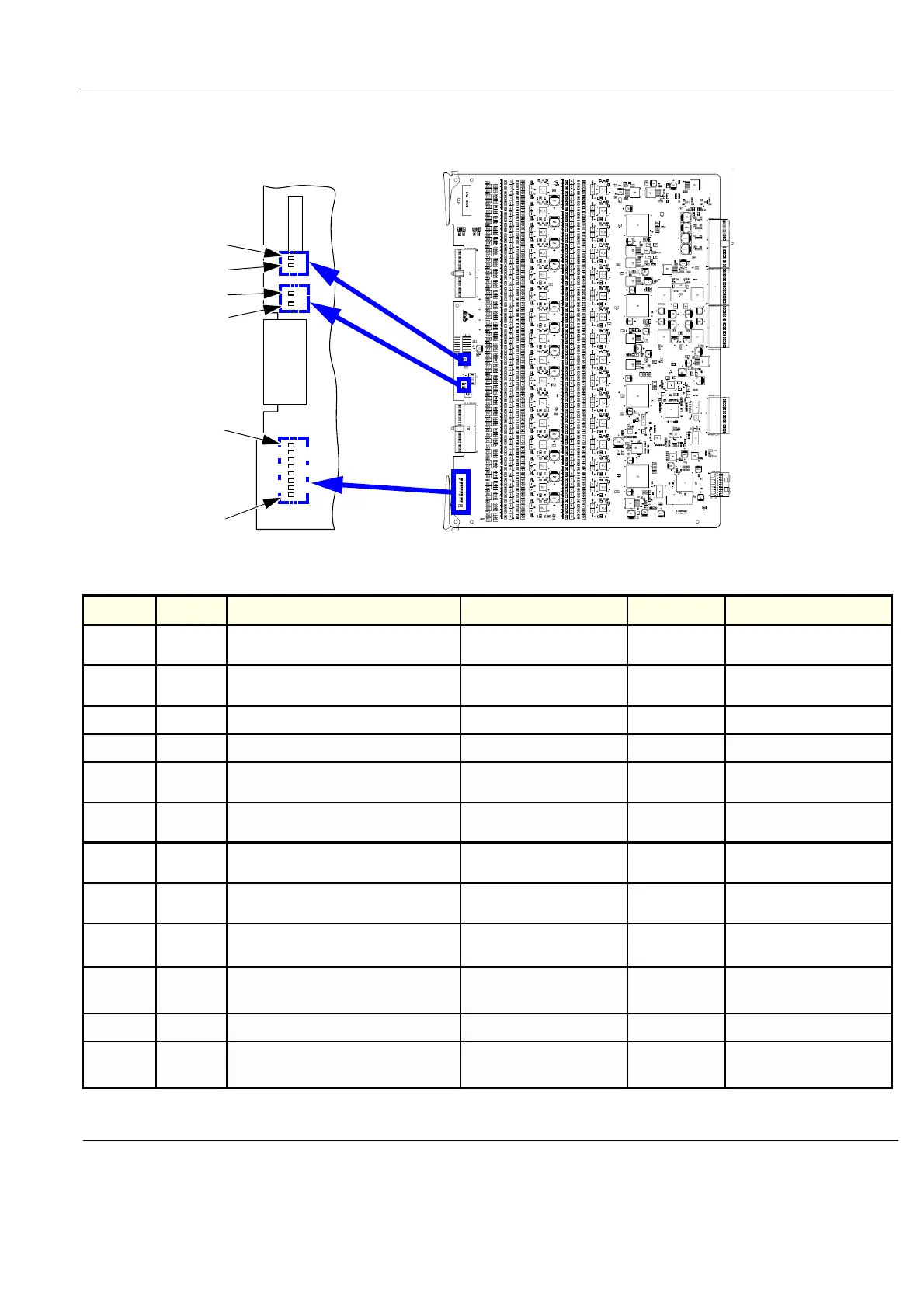

Figure 5-23 LEDs
Table 5-6 LEDs on the GTX-64 board
LED NO. COLOR DESCRIPTION NORMAL OPERATION START UP ERROR CONDITION
DS9 GREEN
CPLD – MD1711
ANALOG POWER ENABLED
ON
ON
DS19 GREEN
ADM1062 –
ALL DIGITAL POWER IS GOOD
ON
ON
DS17 GREEN CPLD – IF_FPGA init done ON
OFF
DS18 GREEN CPLD – IF_FPGA init ON
OFF
DS1 GREEN
IF_FPGA -
GTXIF_DAVID_ERROR_sig(0)
OFF
OFF FPGA/DAVID ERROR
DS2 GREEN
IF_FPGA -
GTXIF_DAVID_ERROR_sig(1)
OFF
OFF FPGA/DAVID ERROR
DS3 GREEN
IF_FPGA -
GTXIF_DAVID_ERROR_sig(2)
OFF
OFF FPGA/DAVID ERROR
DS4 GREEN
IF_FPGA -
GTXIF_DAVID_ERROR_sig(3)
OFF
OFF FPGA/DAVID ERROR
DS5 GREEN
IF_FPGA -
ctrlRegFFF0out(0)
OFF
OFF
DS6 RED
IF_FPGA -
Txtrig_n_sig(0)
ON
OFF
DS7 RED
IF_FPGA - Global_rst_n
OFF
OFF
DS8 RED
IF_FPGA –
DEBUG_BUTTON AND FE_global_rst_n
ON
OFF
J11
J12
DS9
DS19
DS17
DS18
DS1
DS2
DS3
DS4
DS5
DS6
DS7
DS8
DS9
DS19
DS17
DS18
DS1
DS3
DS2
DS5
DS4
DS7
DS6
DS8
